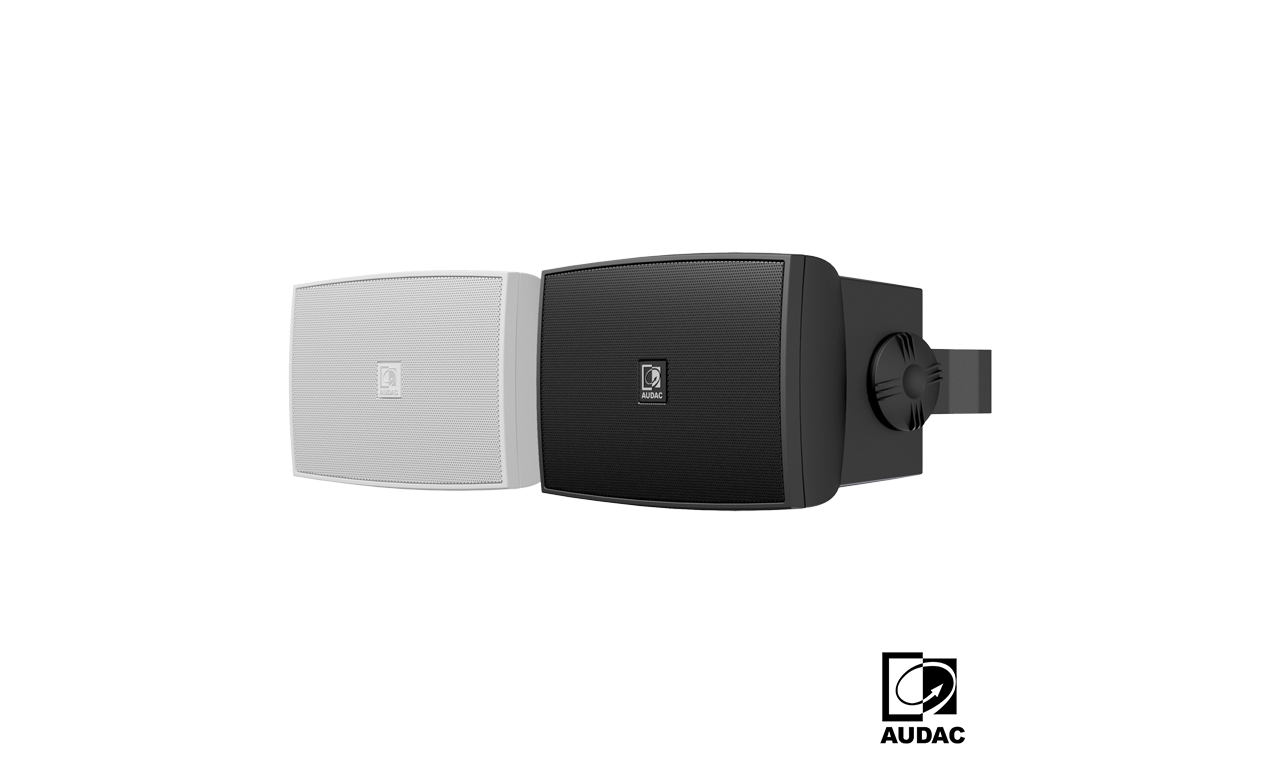

Audac WX502MK2 – Wall Speaker

108.60

The WX502 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech.

Universal wall speaker 5 1/4″

  • 1″ Dome tweeter
  • 5 1/4″ Low frequency loudspeaker
  • Vertical and horizontal mounting
  • Terminal block connection (MK2 version)
  • Multi-tapping 70V / 100V line transformer

Description

The WX502 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. The elegant shaped synthetic enclosure is available in two different colours (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.

This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin).. Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.

Technical Specifications

Available Models
WX502MK2/B Black Version
WX502MK2/W White Version
WX502/W
System Specifications
CrossoverFrequency2.5 kHz
 TypePassive built-in
DriversHF1″
 LF5″
FrequencyRange ( -10 dB)55 Hz – 20 kHz
 Response (± 3 dB)70 Hz – 18 kHz
Impedance 8 Ω
Ingress Protection ratingIP40
Sensitivity (1W/1m)87 dB
Sound Pressure (Max. W/1m)@ 100 V95 dB
 @ 8 Ω102 dB
Speaker Type 2 way
RMS/AES power handling50W
Peak power handling200W
Program power handling100W
DispersionHorizontal110°
 Vertical110°
Line Transformer Tappings1125 Ω – 100 V / Not used – 70 V / 40 W
 2250 Ω – 100 V / 40 W – 70 V / 20 W
 3500 Ω – 100 V / 20 W – 70 V / 10 W
 41000 Ω – 100 V / 10 W – 70 V / 5 W

Product Features
Dimensions 219 x 146 x 184.4 mm (W x H x D) (Incl. bracket)
Weight 2.75 kg
Operating Temperature -25 °C ~ 70 °C
Construction ABS
Mounting & Handling Mounting Bracket
Front finish Steel grill
Colours Black (RAL9005) (WX502MK2/B)
  White (RAL9003) (WX502MK2/W)
AccessoriesIncluded Mounting bracket

Recommend Applications Sporting Facilities
  Retail
  Corporate
  Bars & Restaurants
  Residential

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

Bookshelf / Wall-Mounted, Surface mount
