Audac WX502

94.40

Call for availability

2-Way 5″ Wall speaker – 8 Ohm / 100 Volt – 50 Watt RMS / 40 Watt transformer

Description

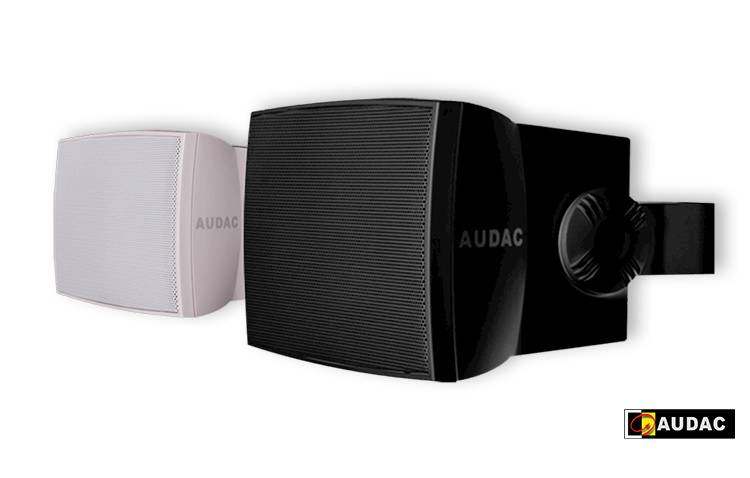

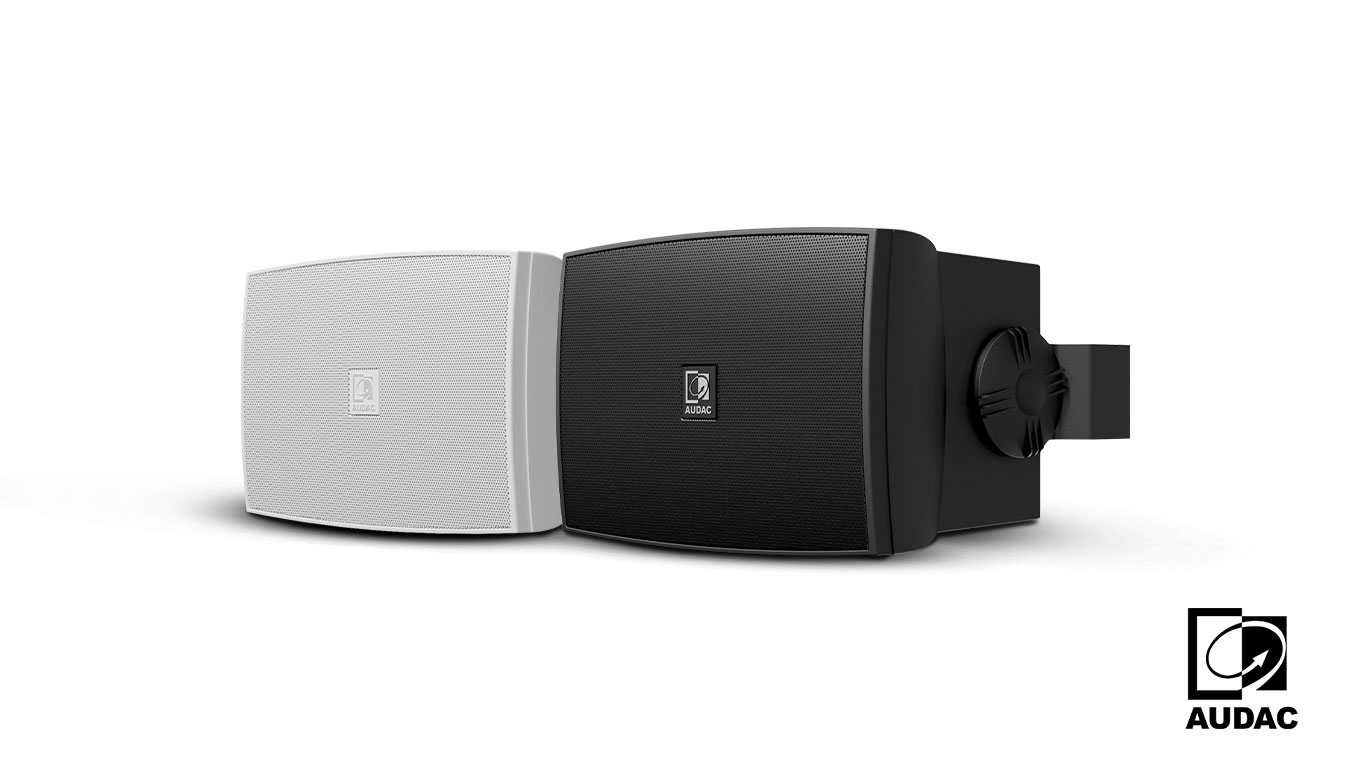

Audac WX502 Wall speaker

The WX502 is a powerful 2-way performance speaker suitable for a wide variation of applications, ensuring true-to-nature, high fidelity reproduction of music and speech.

It is fitted with an 1” dome tweeter and a 5 1/4” low frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. The elegant shaped synthetic enclosure is available in two different colors (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors.

The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.

Technical Specs

Speaker Type2-way
Max. Power100 W
RMS Power50 W
Impedance8 Ω
Sensitivity (1W/1m)87 dB
Ingress Protection ratingIP40
Line Transformer
Tappings

 1 40 W / 250 Ω
 220 W / 500 Ω
 310 W / 1000 Ω

Sound Pressure
(Max. W1m)

 @ 8 Ω104 dB
 @ 100 V102 dB

Frequency
 Response (± 3 dB)70 Hz – 18 kHz
 Range (-10 dB)55 Hz – 20 kHz

Crossover
 Frequency2.5 kHz
 TypePassive built-in

DispersionHorizontal110°
 Vertical110°

DriversHF1″
 LF5″



Technical Specs

Dimensions: 212 x 147 x 136 mm (W x H x D)
Weight:2540 kg
ConstructionABS
Mounting & Handling:

Mounting bracket

Front Finish:Aluminum grill
Colours:
  • Black (RAL9005) (WX502/B)
  • White (RAL9003) (WX502/W)

Additional information

Colour

Black, White

Brand

Audac

Speaker Type

Bookshelf / Wall-Mounted, 100 Volt
