Audac WP225 – Audio Input Wall Panel

210.30

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more).

Universal wall panel – Microphone, line & Bluetooth receiver – 80 x 80 mm

  • Elegant design to blend in with any environment
  • Compatible with EU (80×80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interferrence and noise
SEND EMAIL QUERY

Description

WP2XX SERIES

The most flexible sound input yet.

A family of universal wall panels that makes operating many AUDAC devices child’s play.

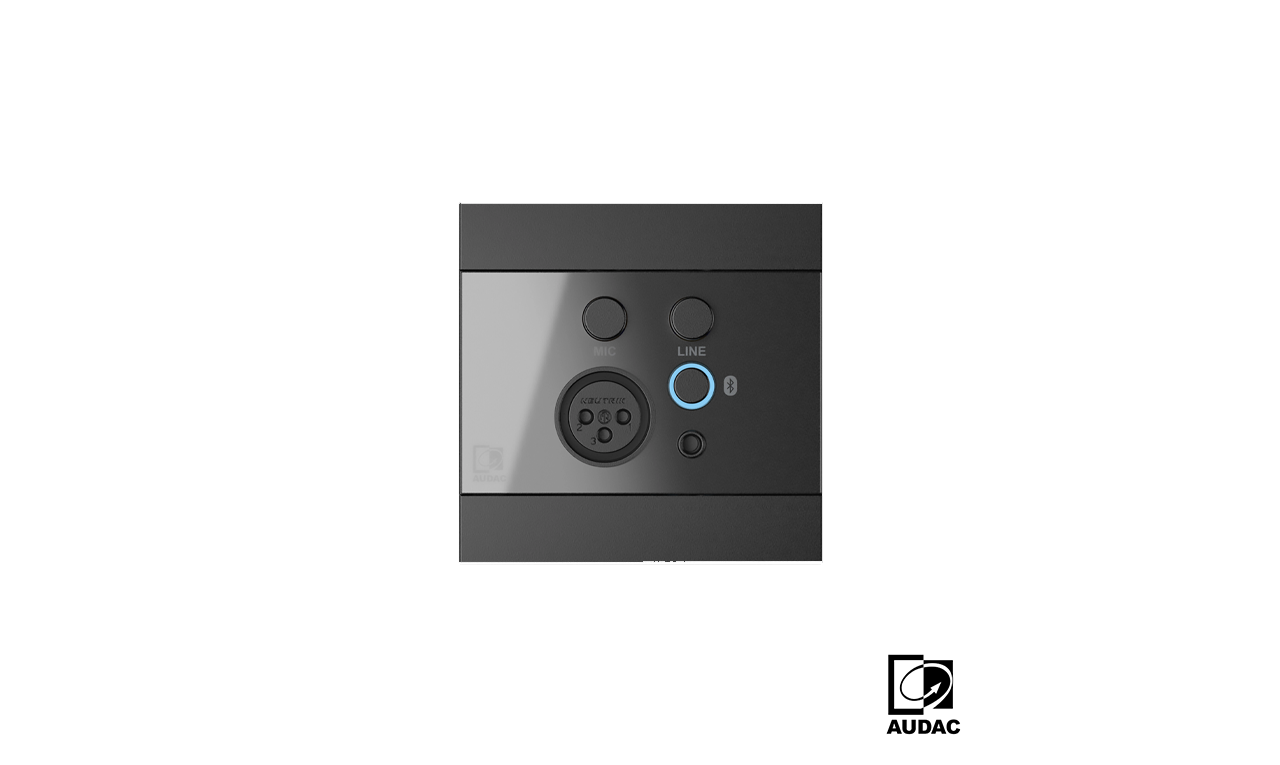

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc…

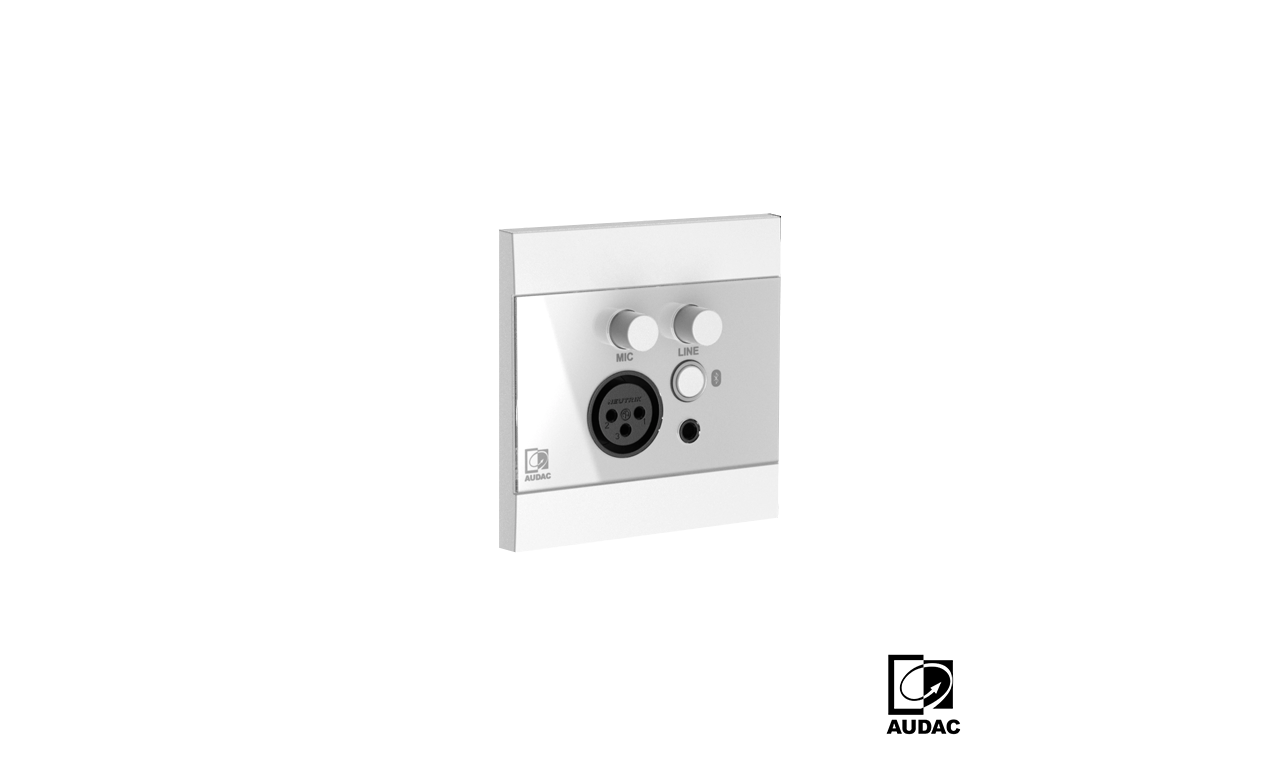

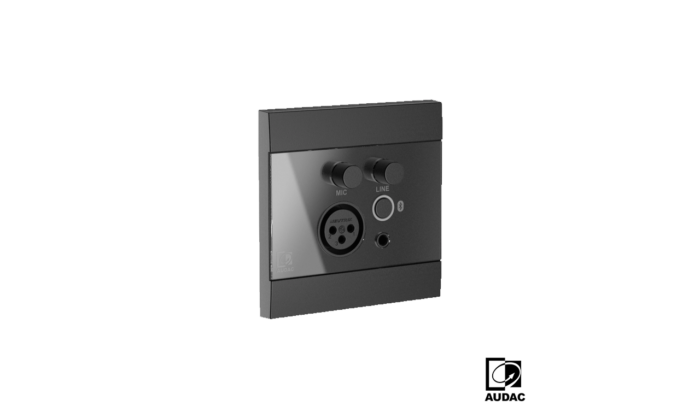

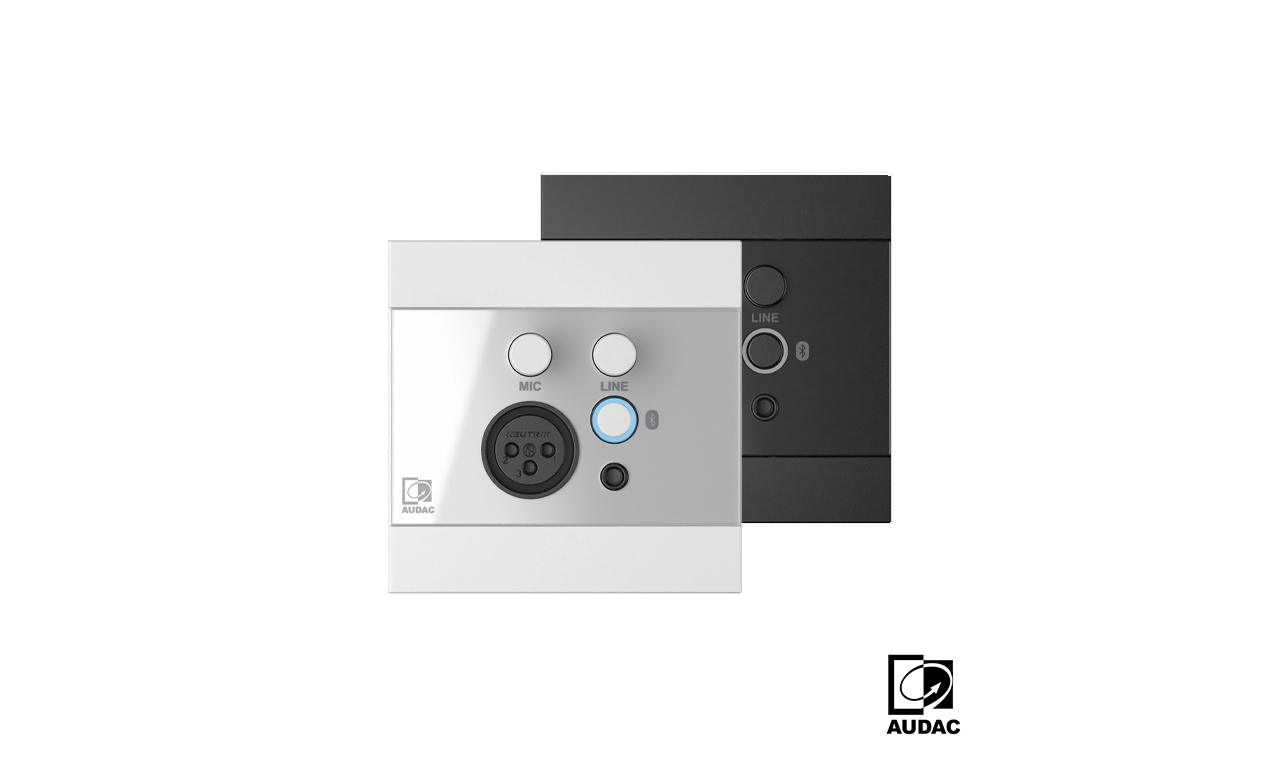

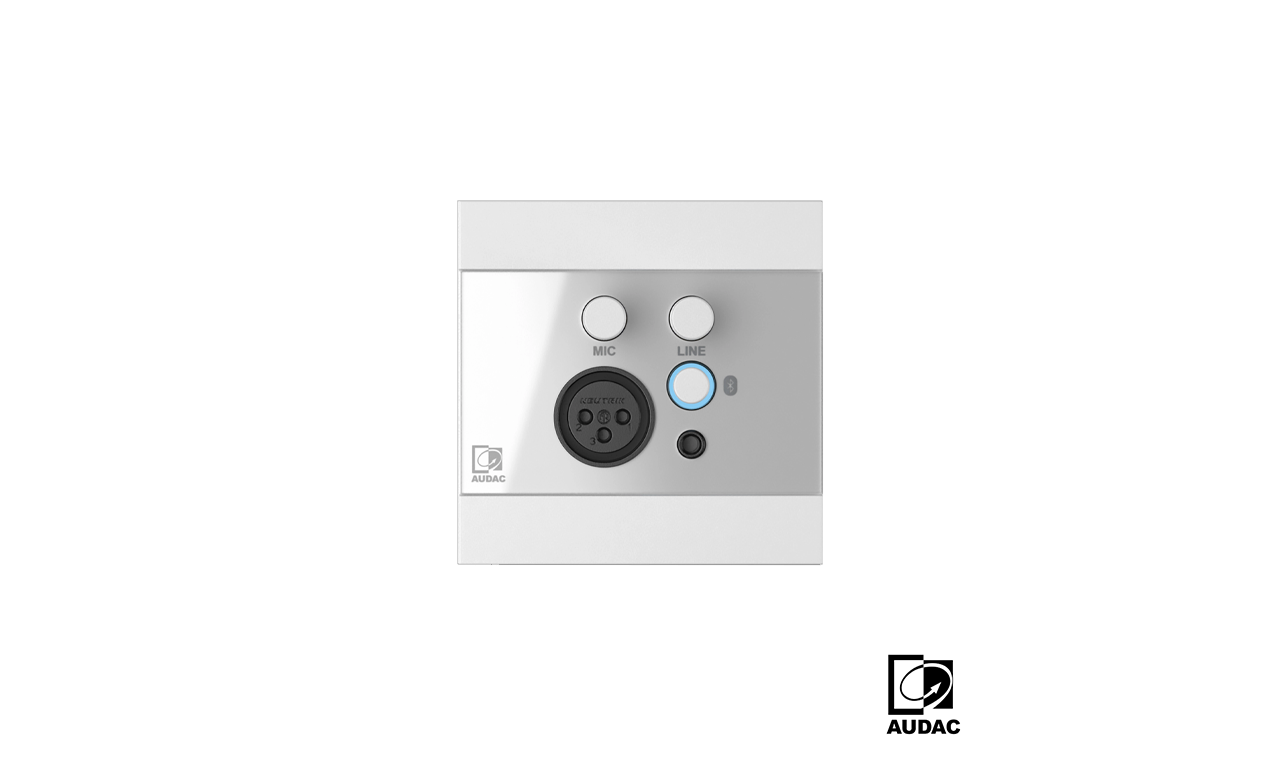

The WP225 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

sleek-integration

SLEEK INTEGRATION

Clean fixed installation

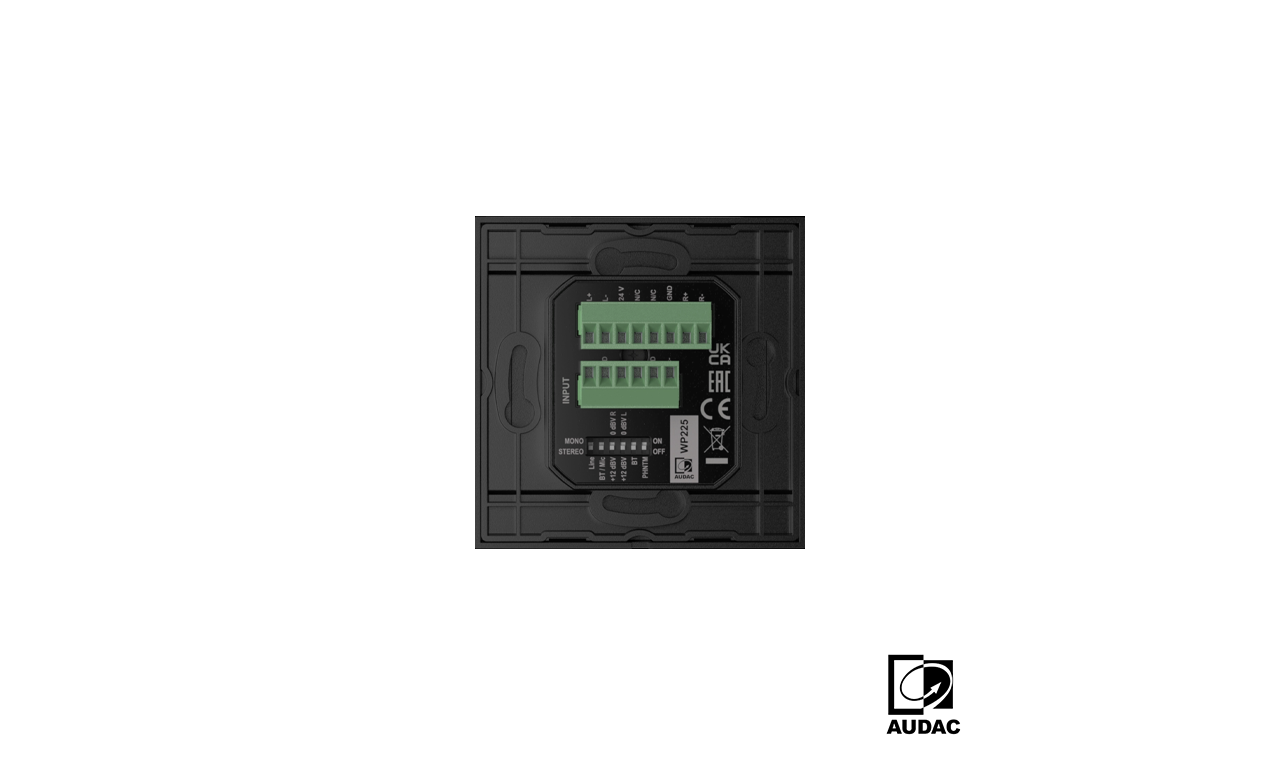

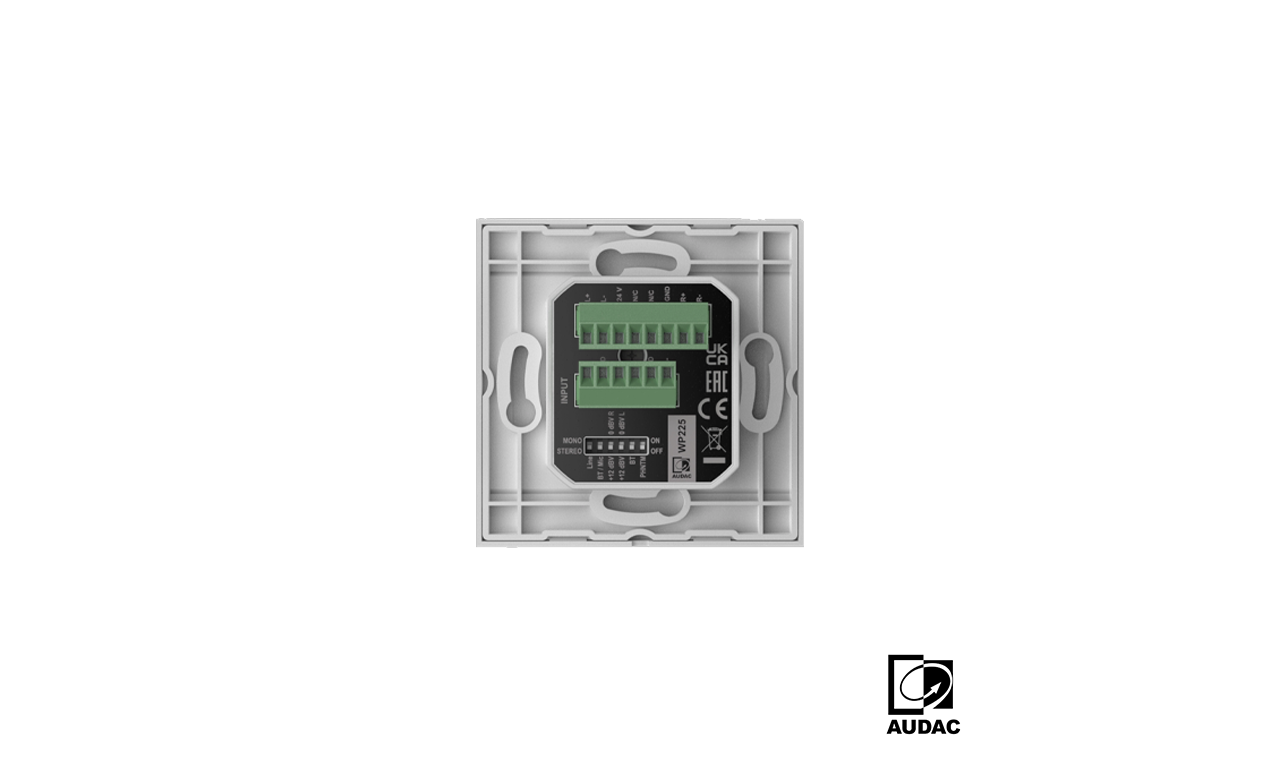

The line input connections found on the front of the wall panels are also available on the back, allowing you to conceal fixed inputs easily. This can be very useful when a classroom has a fixed desktop computer and there is no need to change inputs.



ONLY THE HIGHEST STANDARDS

Remarkable build quality

For the construction we have carefully selected high grade materials such as the hardened glass in black and white finish, these refined details will make them blend into any environment. All WP series wall panels are compatible with standard EU style in wall boxes, these wall panels are the ideal solution for solid and hollow walls.



CLEAN INSTALLATION

Surface mount installation

The WB200 wall boxes allow surface mount installation for the WP2xx series and DWP series 80 x 80 mm sized wall panels.



RENAME YOUR WALL PANELS

Bluetooth custom ID naming

In large operations, several WP2xx wall panels might be required. It may be difficult to keep a clear overview when all these wall panels are equipped with Bluetooth. Therefore it is possible to change the Bluetooth ID of a WP2xx to differentiate each wall panel. The Bluetooth ID can be changed in the ‘AUDAC Bluetooth rename ID’ app.



wp220-bluetooth

Technical Specifications

Available models

WP225/B

WP225/W

Black version

White version

System specifications

Outputs

Level

+12dB

0dB

Inputs

Wall panel

Type

3.5 mm jack stereo line input connection

XLR microphone input connection

Mic & Line inputs on rear for permanent connections

Bluetooth receiver (Version 5.0)

Connection

3.5 mm jack input (Stereo line input)

Female XLR input connector (Microphone input)

6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs)

8-pin terminal block (3.81 mm pitch) output connection

Control

Individual input level control for Mic & Line

Bluetooth pairing button with LED

Phantom power (DIP switch on rear)

Low-cut (Mic) enable / disable (DIP switch on rear)

Output level +12 dBV enable / disable (DIP switch on rear)

Bluetooth enable / disable (DIP switch on rear)

Mono / Stereo (DIP switch on rear)

Product Features

Dimensions

Colours

80 x 80 mm (W x H) (Remote wall panel)

Black (RAL9005) (WP225/B)

White (RAL9003) (WP225/W)

Front finish

Elegant ABS front panel with glass

Accessories

Optional

Surface mount Installation boxes

Flush mount Installation boxes

WB200 – Surface mount wall box for WP & DWP series

Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45S/FS

Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG

Recommended applications

Education

Retail

Bars and Restaurants

Corporate



Downloads

How to connect WP2xx series?

Additional information

Model

WPA225/B, WPA225/W

Brand

Audac
