The WP220 is a remote universal wall panel with Bluetooth receiver input that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more).
Universal wall panel – Bluetooth receiver input – 80 x 80 mm

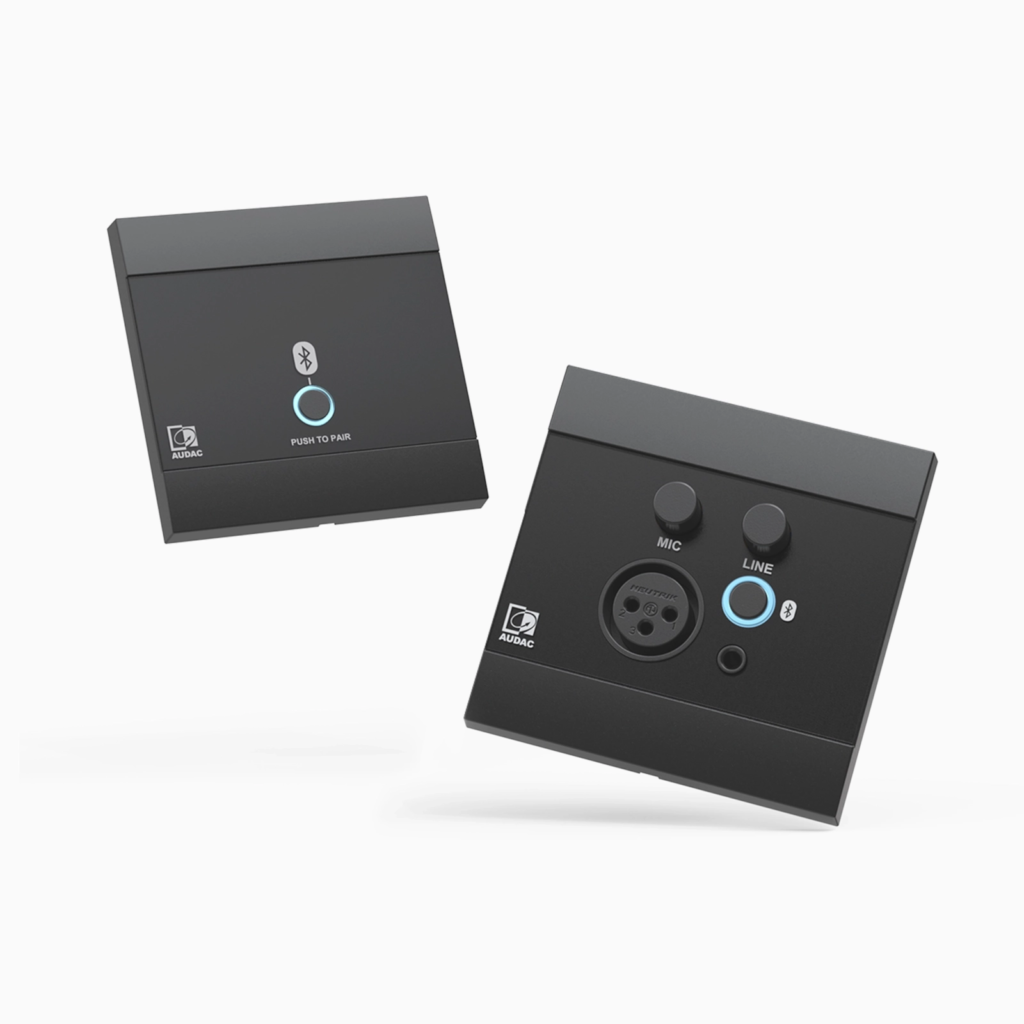

A family of universal wall panels that makes operating many AUDAC devices child’s play.
The WP220 is a remote universal wall panel with Bluetooth receiver input that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It was never easier connecting your Bluetooth enabled device with your audio installation using this wall plate. It will enable you to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.

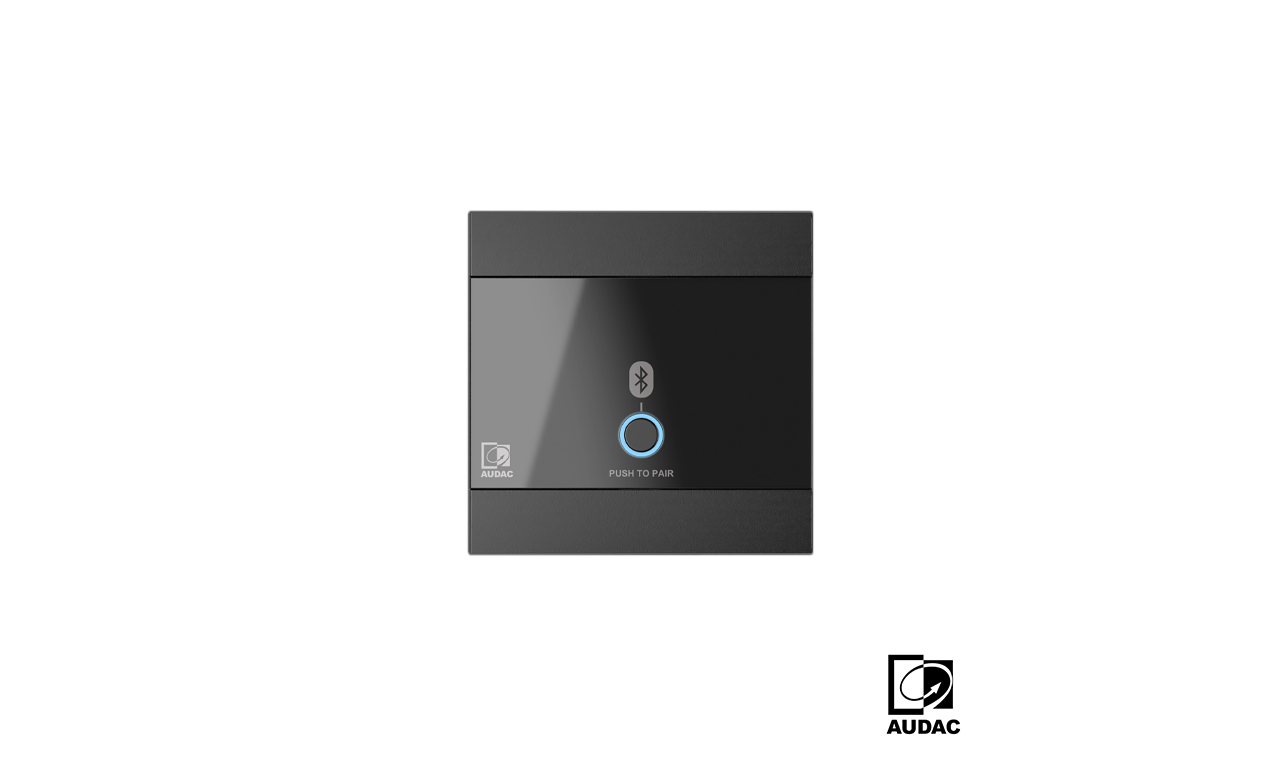

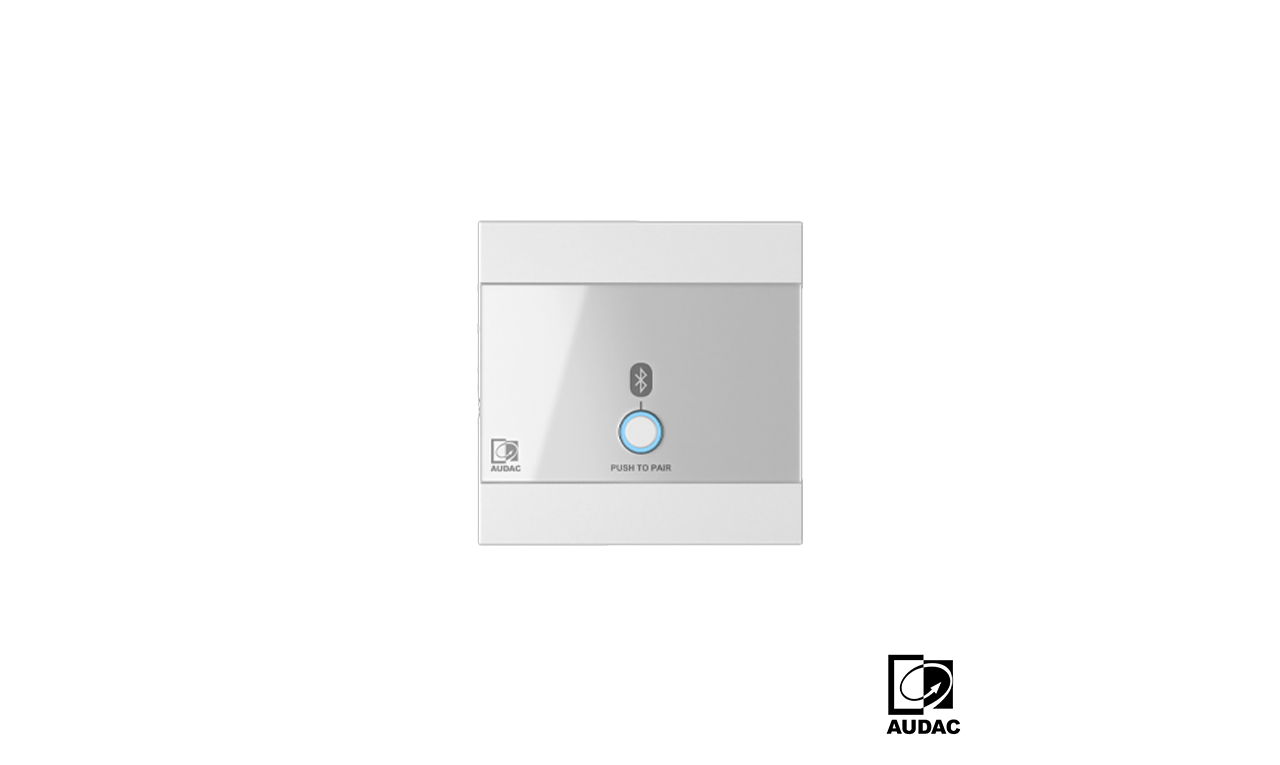

On the front side of the wall panel, you’ll find a Bluetooth pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc…

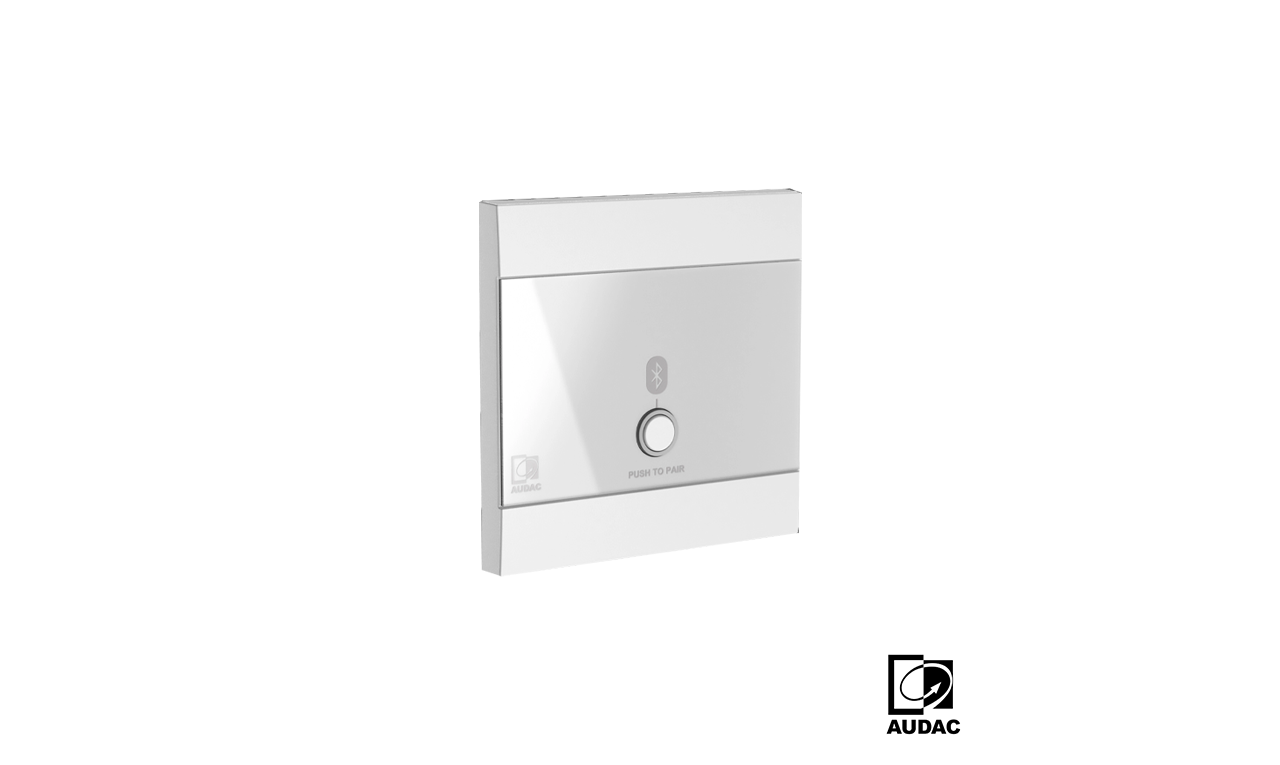

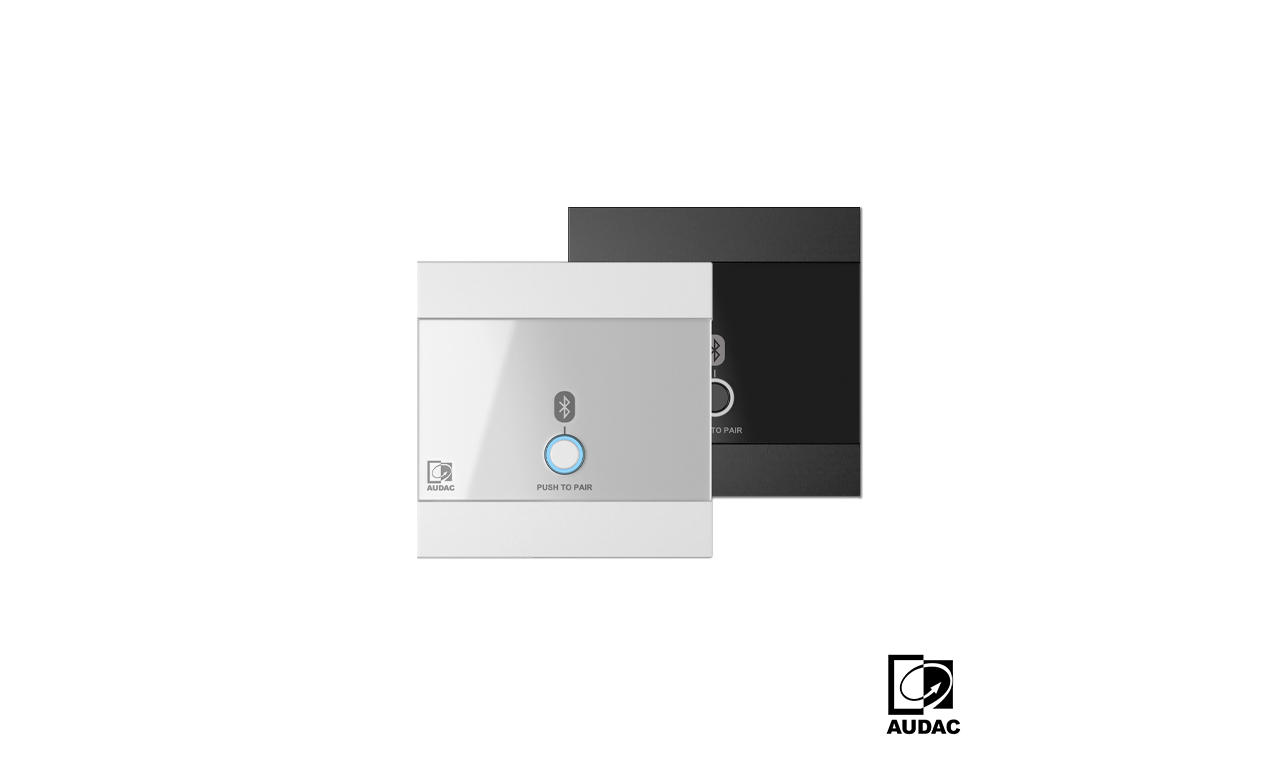

The WP220 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

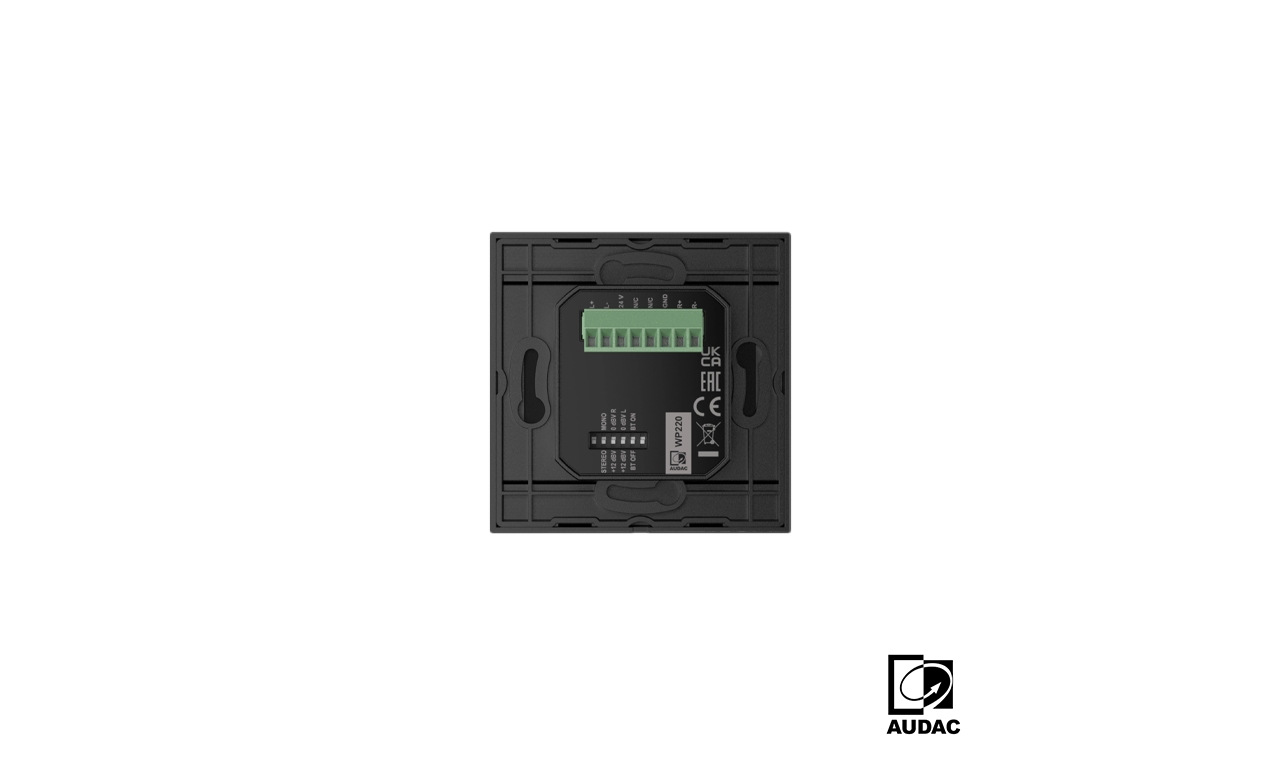

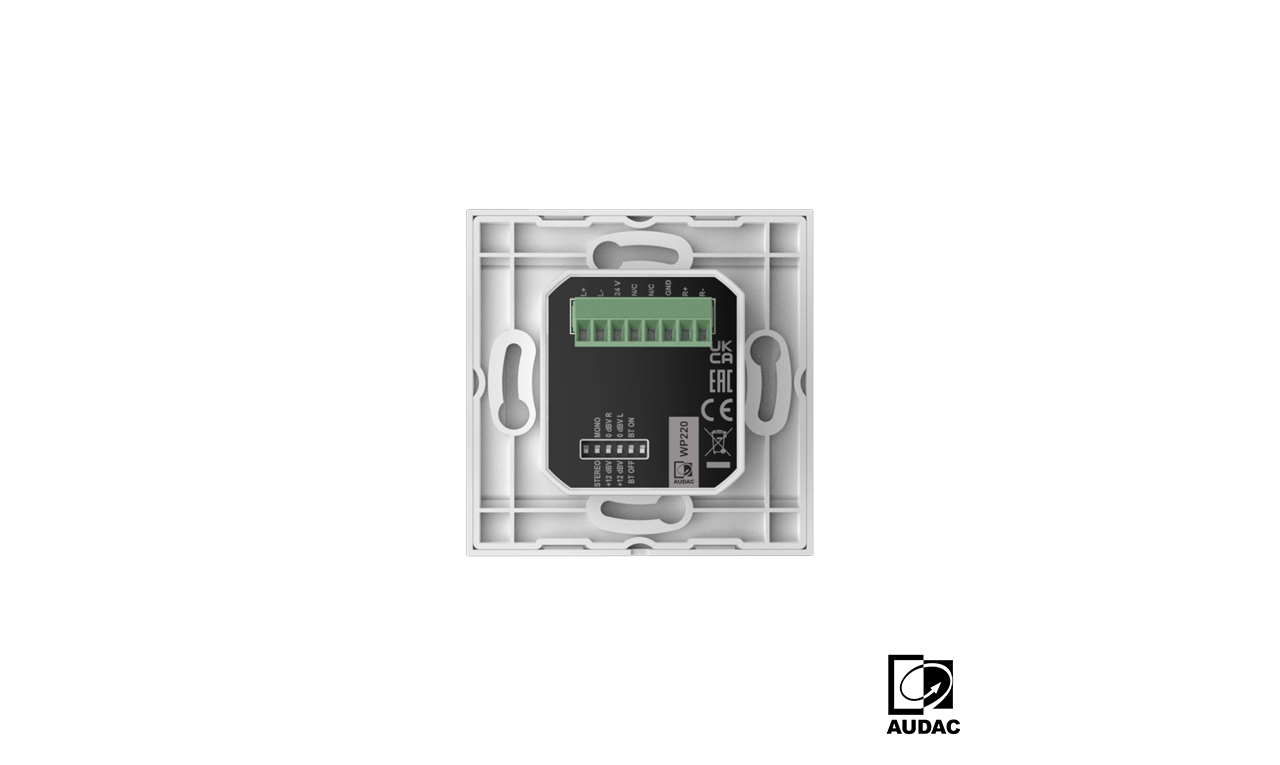

The line input connections found on the front of the wall panels are also available on the back, allowing you to conceal fixed inputs easily. This can be very useful when a classroom has a fixed desktop computer and there is no need to change inputs.
For the construction we have carefully selected high grade materials such as the hardened glass in black and white finish, these refined details will make them blend into any environment. All WP series wall panels are compatible with standard EU style in wall boxes, these wall panels are the ideal solution for solid and hollow walls.
The WB200 wall boxes allow surface mount installation for the WP2xx series and DWP series 80 x 80 mm sized wall panels.
In large operations, several WP2xx wall panels might be required. It may be difficult to keep a clear overview when all these wall panels are equipped with Bluetooth. Therefore it is possible to change the Bluetooth ID of a WP2xx to differentiate each wall panel. The Bluetooth ID can be changed in the ‘AUDAC Bluetooth rename ID’ app.
Available models
WP220/B
WP220/W
Black version
White version
System specifications
Outputs
Level
+12dB
0dB
Inputs
Wall panel
Type
| Bluetooth receiver (Version 5.0) |
Connection
8-pin terminal block (3.81 mm pitch) output connection
Control
Bluetooth pairing button with LED
Output level +12 dBV enable / disable (DIP switch on rear)
Bluetooth enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)
Product Features
Dimensions
Colours
80 x 80 mm (W x H) (Remote wall panel)
Black (RAL9005) (WP220/B)
White (RAL9003) (WP220/W)
Front finish
Elegant ABS front panel with glass
Accessories
Optional
Surface mount Installation boxes
Flush mount Installation boxes
WB200 – Surface mount wall box for WP & DWP series
Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45S/FS
Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG
Recommended applications
Education
Retail
Bars and Restaurants
Corporate
A remote input connection implemented through an RJ45 connector allows wall panel connections, expanding the system through remote input modules. Control up to 4 ARES5A sets (8 speakers) with the WP2xx series remote wall mixers.
For even greater convenience, when fed by an external power supply (PSD241) these WP2xx series wall panels can also be connected to the line input of an amplifier or pre-amplifier.
| Model | WPA220/B, WPA220/W |
|---|---|
| Brand | Audac |
