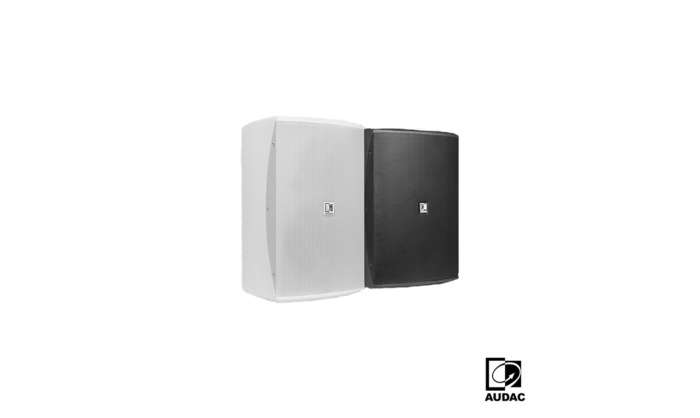

Audac VEXO8 – Loudspeaker

356.60

The VEXO8 is a high-output loudspeaker cabinet, featuring an 8” high efficiency mid/low range driver and 1” compression driver fitted with a 100° x 80° coverage horn, providing a powerful and detailed sound in a compact cabinet.

SEND EMAIL QUERY

Description

VEXO8

Compact high-power speaker 8"

  • 20° incline angle
  • Modern and elegant design
  • 1″ Compression horn tweeter
  • High efficiency 8″ Mid/low woofer
  • Tweeter protection circuitry
  • 2 x Speaker connector (Linkthrough)
  • Vertical and horizontal mounting (rotatable logo)
  • Zinc alloy mounting bracket included

The VEXO8 is a high-output loudspeaker cabinet, featuring an 8” high efficiency mid/low range driver and 1” compression driver fitted with a 100° x 80° coverage horn, providing a powerful and detailed sound in a compact cabinet.

The exceptional accuracy and clarity coming from this compact cabinet are recommended to be extended with a complementary bass cabinet adding the punchy & deep bass, resulting in a stunning sound over the entire frequency range. Their elegant enclosure allows them to be used in modern & trendy installation applications such as bars and nightclubs, while their functional features make them perfect for use in compact mobile systems.

It delivers a powerful full-range sound with an RMS rating of 175 Watt and a maximum of 350 Watt.  Compression driver overload protection is provided through an internal limiting circuit. Connections are made using two speaker connectors allowing link through to other cabinets.

Mounting in both horizontal and vertical direction, up to 20°, is possible with the included wall bracket and the rotatable horn. An optional 35mm pole adapter can be installed when used in mobile applications.

Technical Specifications

Available models

VEXO8/B

VEXO8/W



Black version Passive

White Version Passive

System specification

Speaker type

Peak power handling

Program power handling

RMS/AES power handling

Impedance

Sensitivity (1W/1m)

Sound Pressure (Max. W/1m)

Frequency Response (+- 3 dB)

Frequency Range (- 10 dB)

Crossover

Dispersion

    •  Horizontal
    • Vertical

Drivers

    • HF
    • LF
    • MF

Connectors

2-way

700W

350W

175W

92dB

115dB

65Hz – 20Khz

55 Hz – 20Khz

Passive built-in

    • 100°
    • 80°


1″ Compression Driver
8″
8″

2x Speaker connector (Linkthrough)

Product Features

Dimensions

Weight

Construction

Front finish

Mounting & handling



Colours

Operating Temperature

Accessories included

Accessories Optional

250 x 380 x 262 mm (WxHxD)

9.700 Kg

Medium density fibreboard with structured coating

Steel grill

2-way revolving mounting bracket

Optional 35mm pole adapter

Black and White

-20°C~ 60°C

2-way revolving mounting bracket

WBP100 Wall bracket mounting plate

CHB196 35mm pole adapter

Recommended Applications

Bars & Restaurants

Clubs

Hotels

Sporting Facilities

Additional information

Brand

Audac

Speaker Type

Surface mount

Colour

Black, White
