Audac Flush mount volume control 36 watt 100 volt with relay. (Frame Not Included)
Description
Audac VC3036 flush mount volume controller – Doneo Malta

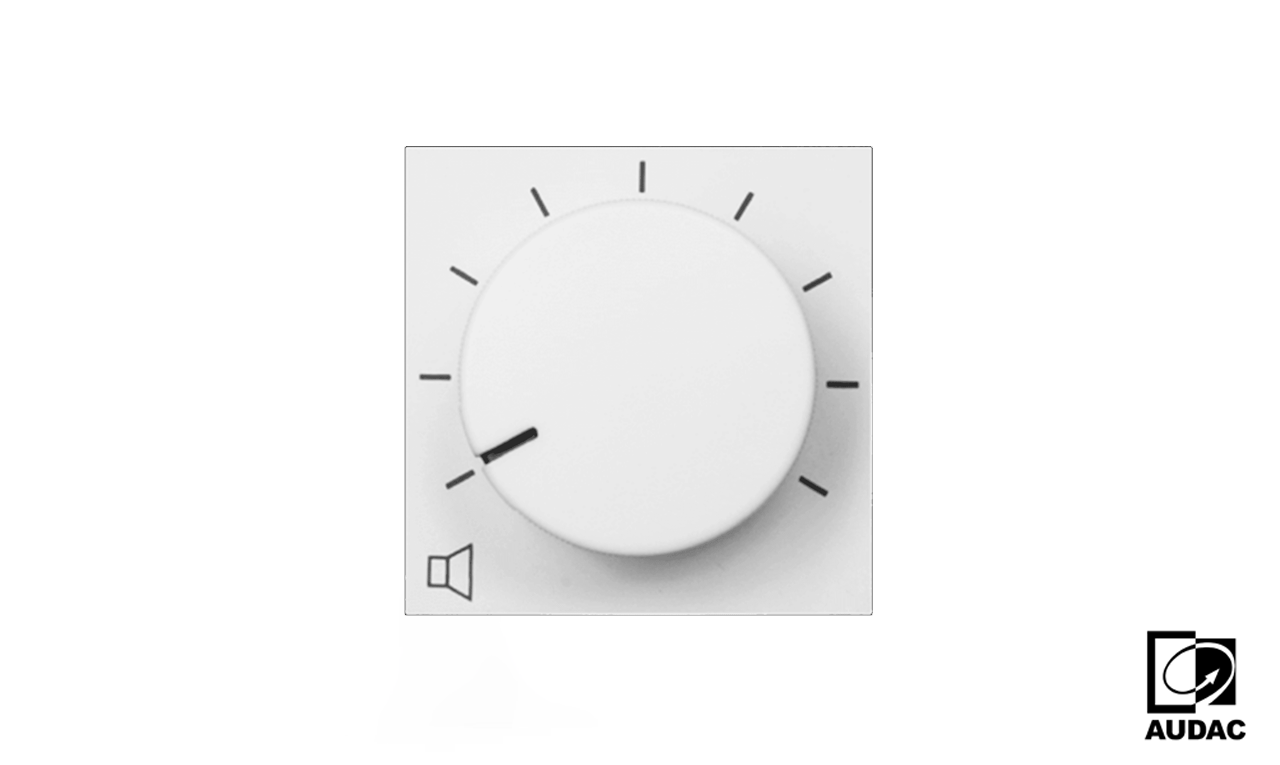

The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W). The 45 x 45 mm size is compatible with Audac, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.
| Max. Power | 36 W |
| RMS Power | 36 W |
| Max. operation Voltage | 100 V |
| Attenuation | 9 x 3 dB |
| Relay | 24 V / 25 mA |
| Product features | ||||
|---|---|---|---|---|
| Dimensions | 45 x 45 x 60 mm (W x H x D) | |||
| Weight | 0.150 kg | |||
| Construction | ABS | |||
| Mounting | 45 x 45 mm (Audac / Niko / Legrand) | |||
| Colours | Black (RAL9005) (VC3036/B) | |||
| White (RAL9010) (VC3036/W) | ||||
Additional information
| Brand | Audac |
|---|---|
| Product Type | Wall Controllers |
