Audac VC3036 – Black

66.20

Call for availability

Audac Flush mount volume control 36 watt 100 volt with relay. (Frame Not Included)

Call for availability

SEND EMAIL QUERY

Description

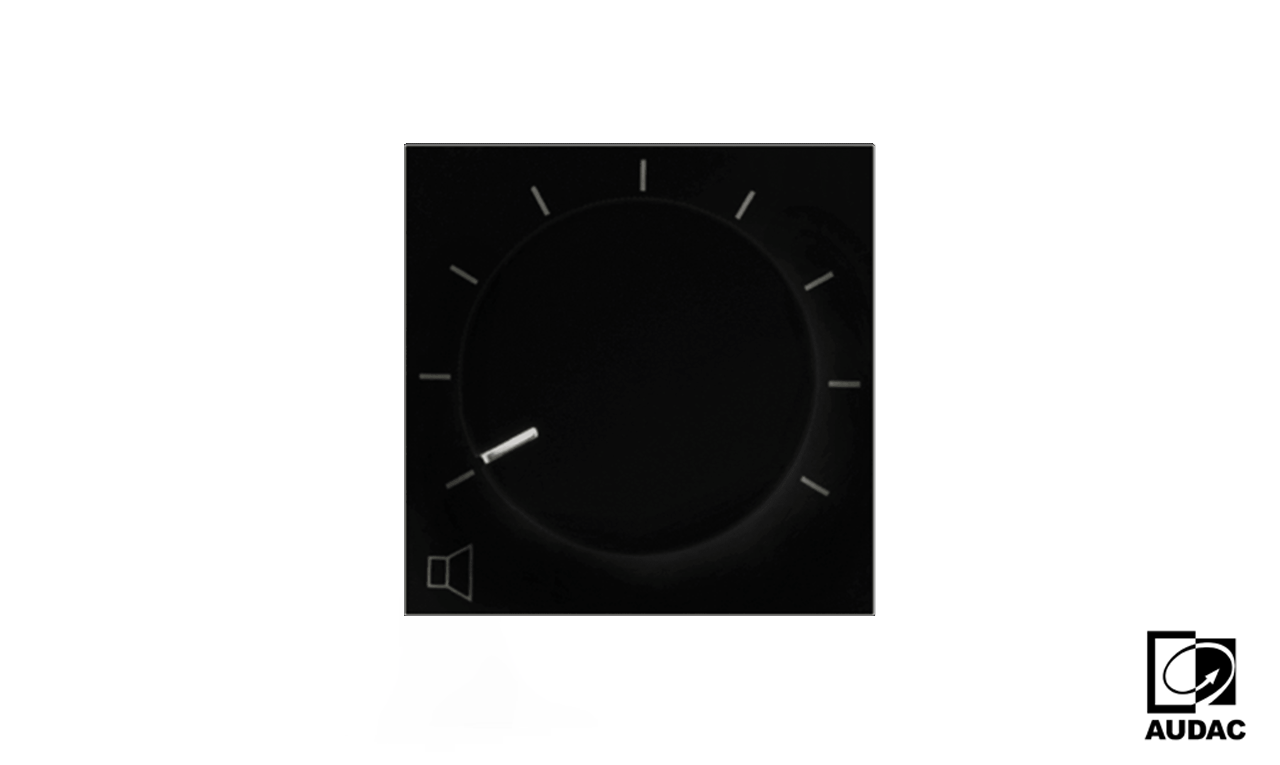

Audac VC3036 flush mount volume controller – Doneo Malta

The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W). The 45 x 45 mm size is compatible with Audac, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.

Max. Power 36 W
RMS Power 36 W
Max. operation Voltage 100 V
Attenuation 9 x 3 dB
Relay 24 V / 25 mA
Product features
Dimensions 45 x 45 x 60 mm (W x H x D)
Weight 0.150 kg
Construction ABS
Mounting 45 x 45 mm (Audac / Niko / Legrand)
Colours Black (RAL9005) (VC3036/B)
White (RAL9010) (VC3036/W)

Additional information

Brand

Audac

Product Type

Wall Controllers
