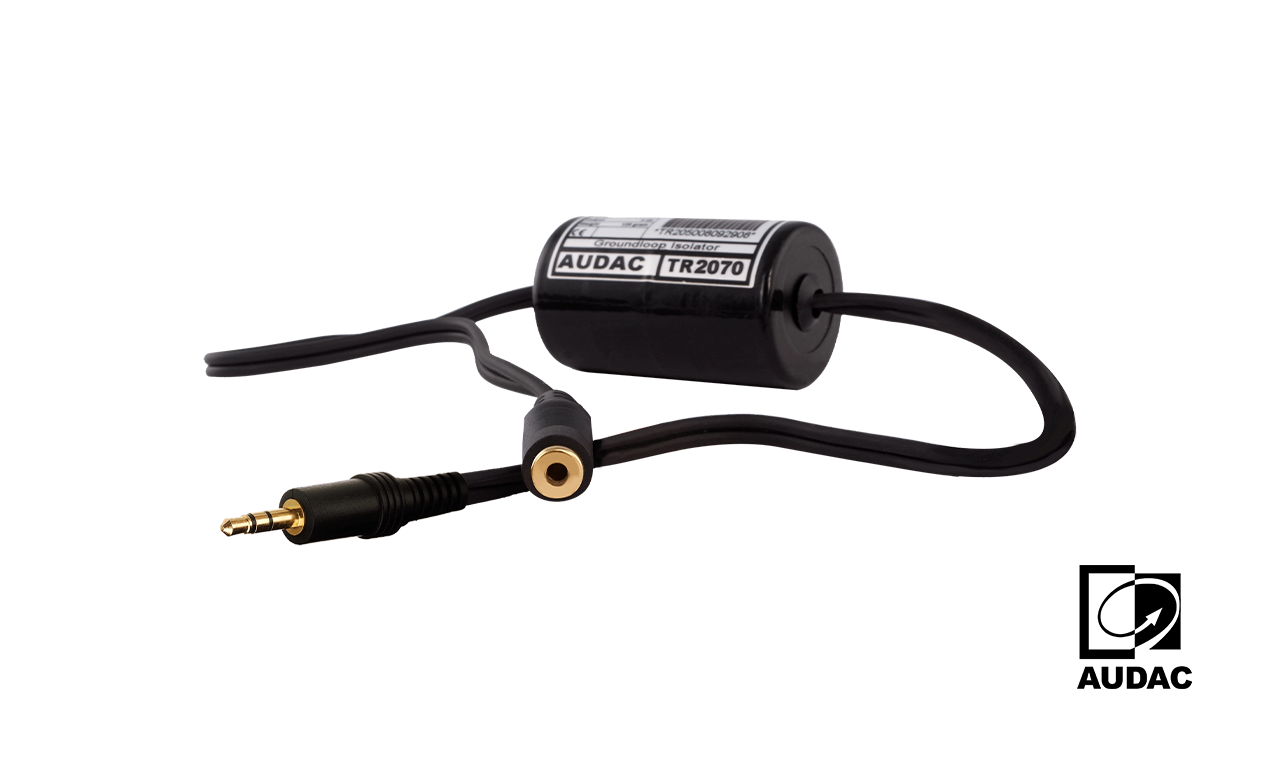

Audac TR2070 Groundloop Isolator

15

In stock

The TR2070 isolates audio devices to prevent ground loop hum. It solves ground loop problems for audio technicians. Causes a 50 Hz hum in the audio signal.

In stock

Description

The TR2070 is a basic bidirectional ground loop isolator, designed to electrically isolate audio devices from each other. Hum in audio systems is usually caused by ground loops in the system. A common mode current will flow in a ground loop created by an electrical system that has grounds on different voltage potentials. This results in a 50 Hz hum in the audio signal. The most common method to solve these problems is an audio isolation transformer such as the TR2070 which always needs to be within reach for every audio technician. When ground loop problems are encountered, these can be solved in a jiffy, by using the TR2070.

Technical specifications

System specifications
Turn ratio1 : 1
FrequencyRange (-10 dB)20 Hz – 20 kHz
THD+N (@ 1 kHz)< 0.1%
Connectors3.5 mm Jack male to female
Product Features
Dimensions35 x 35 x 65 mm (W x H x D)
Weight0.050 kg
ConstructionMetal
ColoursBlack
