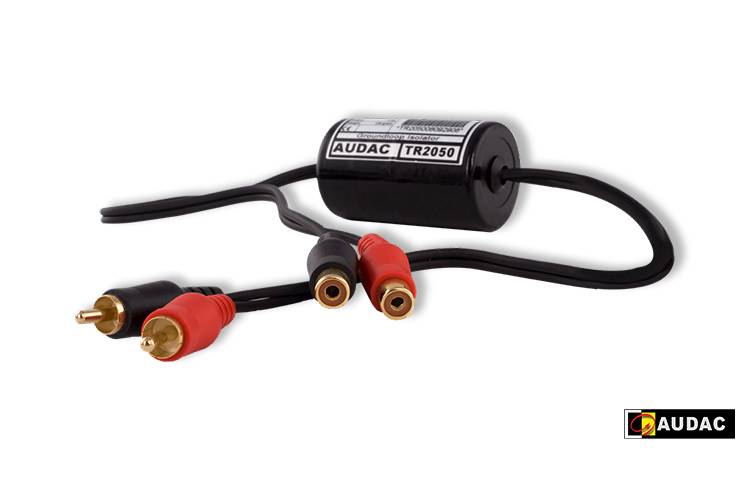

Audio Groundloop Isolation transformer – Audac TR2050

15

Call for availability

‌The TR2050 is a bidirectional basic ground loop isolator designed to electrically isolate audio devices from each other. Eliminates hum in audio systems caused by grounds on different voltage potentials.

Call for availability

Description

Audac TR2050 groundloop isolation transformer – Doneo Malta

The TR2050 is a basic ground loop isolator designed to electrically isolate audio devices from each other. Hum in audio systems is usually caused by ground loops in the system.

A common mode current will flow in a ground loop created by an electrical system that has grounds on different voltage potentials. This results in a 50 Hz hum in the audio signal. The most common method to solve these problems is an audio isolation transformer such as the TR2050 which always need to be in reach for every audio technician. When ground loop problems are encountered, these can be solved in a jiffy, by using the TR2050.

Turn ratio 1 : 1
THD+N (@ 1 kHz) < 0.1%
Connectors 2 x RCA Male to 2 x RCA female
Frequency Range (-10 dB) 20 Hz – 20 kHz
Product features
Dimensions 35 x 35 x 65 mm (W x H x D)
Weight 0.050 kg
Construction Metal
Colours Black
