Audac SP20

78.90

Call for availability

Audac professional Sound projector 20 watt, 100 volt, IP56 weather protections, indoor or outdoor mounting.

Call for availability

SEND EMAIL QUERY

Description

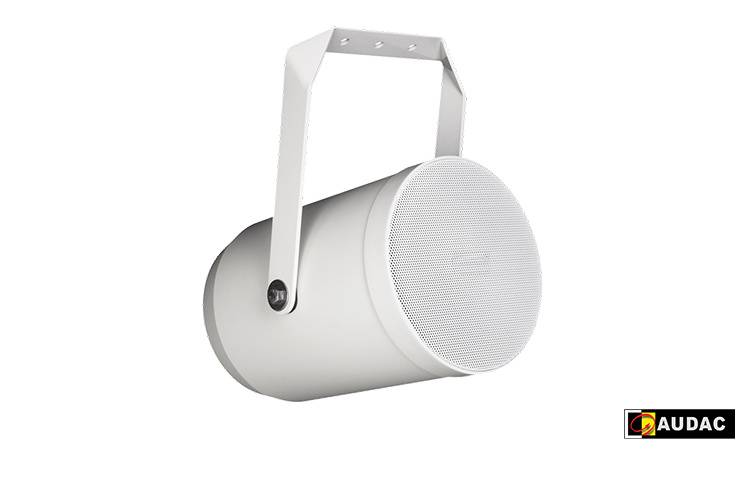

Audac SP20 sound projector speaker – Doneo Malta

The SP series are high efficiency sound projectors designed to provide good speech intelligibility and background music in a wide variation of applications. They are all weather-proof treated to be used indoor as well as outdoor and are perfect suited to be used in large 100V broadcast systems such as train stations or airports. They all meet the IP56 Ingress Protection standard.

The SP20 is a high-efficiency sound projector with an RMS power of 20 Watt, designed to provide good speech intelligibility and background music in a wide variation of applications. It is fitted with a 5″ broadband loudspeaker and the power is adjustable by the integrated 100V line transformer with power taps for 20 Watt, 10 Watt, 5 Watt and 2.5 Watt at 100 Volt.

The speaker can be easily mounted to any wall or ceiling by using the stainless steel mounting bracket. Thanks to the weatherproof treated ABS housing with white weatherproof coated aluminum grill, the speaker has a IP rating of 56 whereby it can be used indoor as well as outdoor for a wide variation of applications.

Max. Power 40 W
RMS Power 20 W
Sensitivity (1W/1m) 92 dB
Sound Pressure (Max. W/1m) 104 dB
Impedance 8 Ω
Dispersion 180°
Directivity Q factor 2.60
Ingress Protection rating IP56
Connectors 75 cm connection cable
Drivers 5”
Line Transformer Tappings 1 20 W / 500 Ω
2 10 W / 1000 Ω
3 5 W / 2000 Ω
4 2.5 W / 4000 Ω
Frequency Response (± 3 dB) 130 Hz – 15 kHz
Product features
Dimensions 138 x 204 mm (Ø x D)
Weight 1.900 kg
Construction ABS
Mounting Stainless steel U bracket
Front finish Aluminium grill
Colours White

Additional information

Brand

Audac

Speaker Type

Ceiling, Bookshelf / Wall-Mounted, Water Resistant, 100 Volt
