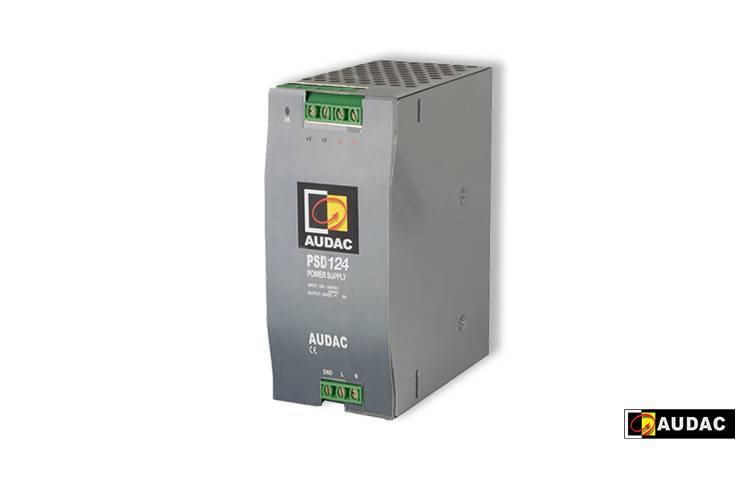

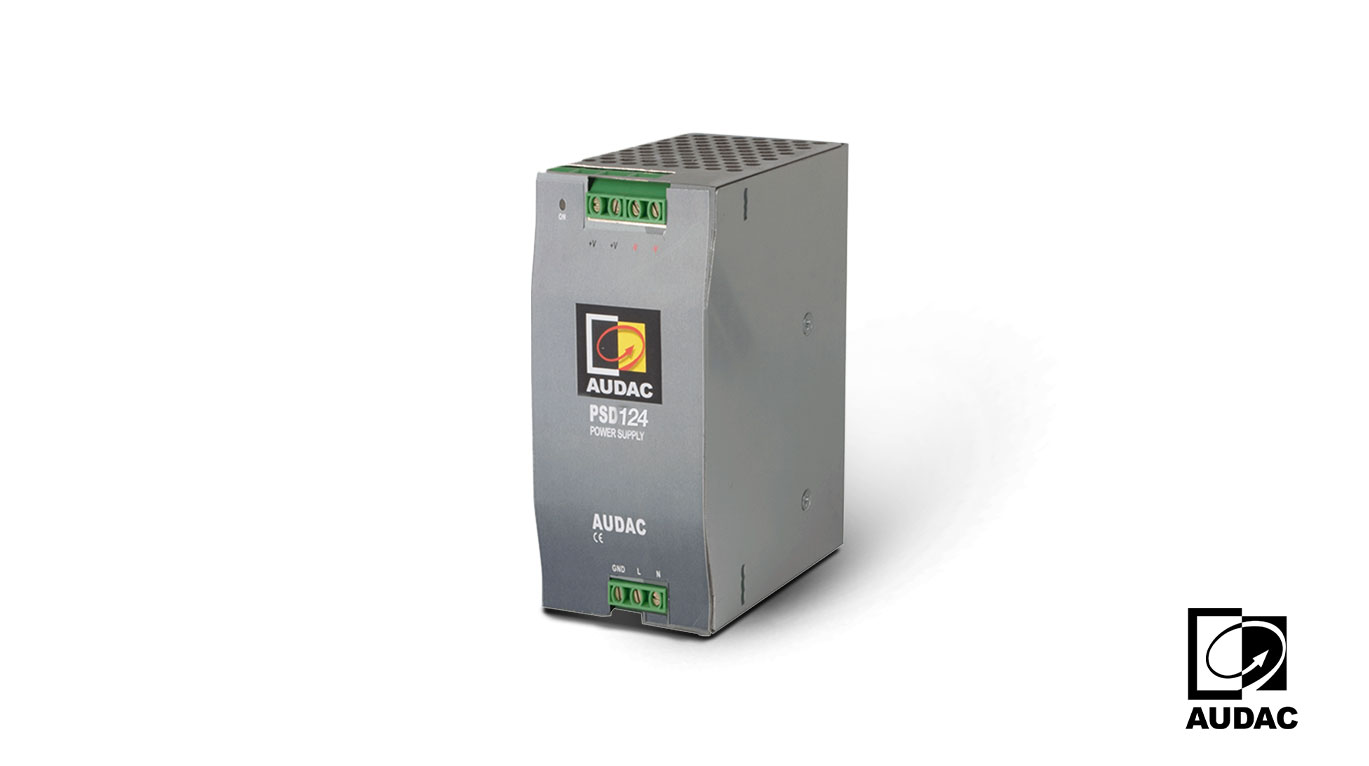

Audac professional AC-DC Adapter 12V 4A / 50 Watt / Din Rail
Audac PSD124
€78.30
In stock
In stock
Description
Audac PSD124 AC-DC Adapter – Doneo Malta
The PSD series offers a wide range of versatile switching power supplies. They are mainly used as power supply for extension units, interface boxes or other expansion units of sound systems, but they can be used for all kinds of applications requiring 12V DC or 24V DC, at different current ratings. There are two different construction forms available, standard ABS housings suited for standard applications, and industrial graded designed DIN rail mounting versions, to be used in all kinds of applications.
Going from small and simple applications to industrial environments and hazardous locations.
| Max. Power | 48 W | ||
| Ripple and Noise | 100 mV | ||
| Efficiency | 83% | ||
| Inrush current full load cold start | 35 Amp @ 230 VAC | ||
| Set-up, Rise, Hold up time | 100 ms, 60 ms, 50 ms @ full load and 230 V AC | ||
| Safety standard | EN60950 | ||
| EN61000-3-2 | |||
| EN61000-4-2, 3, 4, 5, 6 | |||
| Mean Time Between Failures | 1.000.000 H @ 25 °C | ||
| Inputs | Connector | 3 pole screw DIN terminal | |
| Outputs | Power | 12 V DC ± 2% | |
| Connector | 4 pole screw DIN terminal | ||
| DC | Outputs current | 4 A | |
| Adjustment Range (-10 dB) | 10.5 ~ 13.5 V DC | ||
| Protection | Overload | 105% ~ 150% rated output Power | |
| Over Voltage | 115% ~ 135% rated output Voltage | ||
| Tempertature | Working | -10 – 70 °C | |
| Storage | -40 – 85 °C | ||
| Power | Supply | Normal | 100 ~ 240 V AC / 50 ~ 60 Hz |
| Operating | 90 ~ 264 V AC / 47 ~ 63 Hz | ||
| Product features | ||||
|---|---|---|---|---|
| Dimensions | 32 x 125 x 100 mm (W x H x D) | |||
| Weight | 0.310 kg | |||
| Construction | DIN rail | |||
Additional information
| Brand | Audac |
|---|---|
| Product Type | Power Supplies |
