Audac POW2 Power Amplifier Kit

999

Call for availability

Audac Professional Power Amp. Kit 16X60W 8 Channel Stereo for the Audac R2 / Audac M2

Call for availability

Description

Audac POW2 Power Amplifier Kit – Doneo Malta

Power Amp. Kit 16X60W 8 Channel Stereo for the Audac R2 / Audac M2

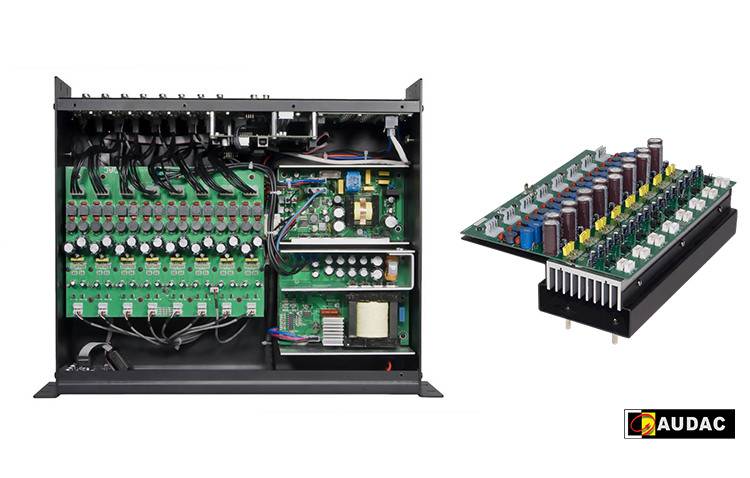

The POW2 is an optional power amplifier kit which can be installed inside the R2 and M2 Multi-Zone Digital Audio Matrix housing.

In its standard configuration, the R2 and M2 is equipped with 8 line level output channels on which the appropriate amplifiers can be connected, depending on the required power for the specific application.

For certain applications where no large power capacities are required, the optional power amplifier kit can be installed, resulting in a multifunctional matrix and power amplifier merged into one single housing.

The POW2 consists of a 16 Channel (8 Stereo Channel) Class-D amplifier, delivering a power of 60 Watt to every channel at 4 Ohm. In bridge mode an output power of 8 x 120 Watt can be obtained at 8 Ohm.

It features an advanced protection circuit which protects against DC malfunctioning, short circuit, overheating and overload while a large heatsink and speed controlled ventilation fan ensure a proper operation temperature is continuously maintained.

The POW2 Power amplifier kit includes the power amplifier module, a switching power supply and all necessary connection and installation accessories to properly install the kit inside the R2 or M2’s housing.

Note: The POW2 replaces the older R2POW model, which offered comparable functionality and performance.

Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power)
Technology Class-D
Cooling Temperature controlled FAN
Protection DC Short circuit
Over heating
Over load
Operating temperature 0° ~ 40° @ 95% Humidity
RMS Power @ 4 Ω Stereo 16 x 60 W
@ 8 Ω Stereo 16 x 30 W
@ 8 Ω Bridge 8 x 120 W
Load impedance Stereo 4 Ω
Bridge 8 Ω
Inputs Connector Internal linked
Outputs Connector 4-pin Euro Terminal Block (5.08 mm / On Matrix Chassis)
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Power Supply Switching mode
Product features
Weight 3.900 kg
Mounting Integrated in R2 or M2 housing

Additional information

Brand

Audac

Amplifier Connectivity

8 Channel
