Audac PMQ Series – Power Amplifiers

Call for price

Our PMQ Class-D 70/100V power amplifiers provide a new standard for premium sound amplification in public address applications. These professional multi-channel power amplifiers bring great flexibility with custom configurations to present solutions for the most complex audio systems.

  • Lightweight class-D amplifier
  • XLR input & linkthrough connections
  • Terminal block output connections
  • RS232 control
  • Dante™/AES67 expansion port
  • Advanced DSP and loudspeaker management
  • 2.5″ LCD display with intuitive user interface
  • WaveDynamics™ speaker & set configurations
SEND EMAIL QUERY

Description

The PMQ series are professional 70/100V quad channel power amplifiers, providing a new standard for premium sound 100V amplification in public address applications. Their advanced features and availability in different output powers provide an enormous flexibility for numerous applications.

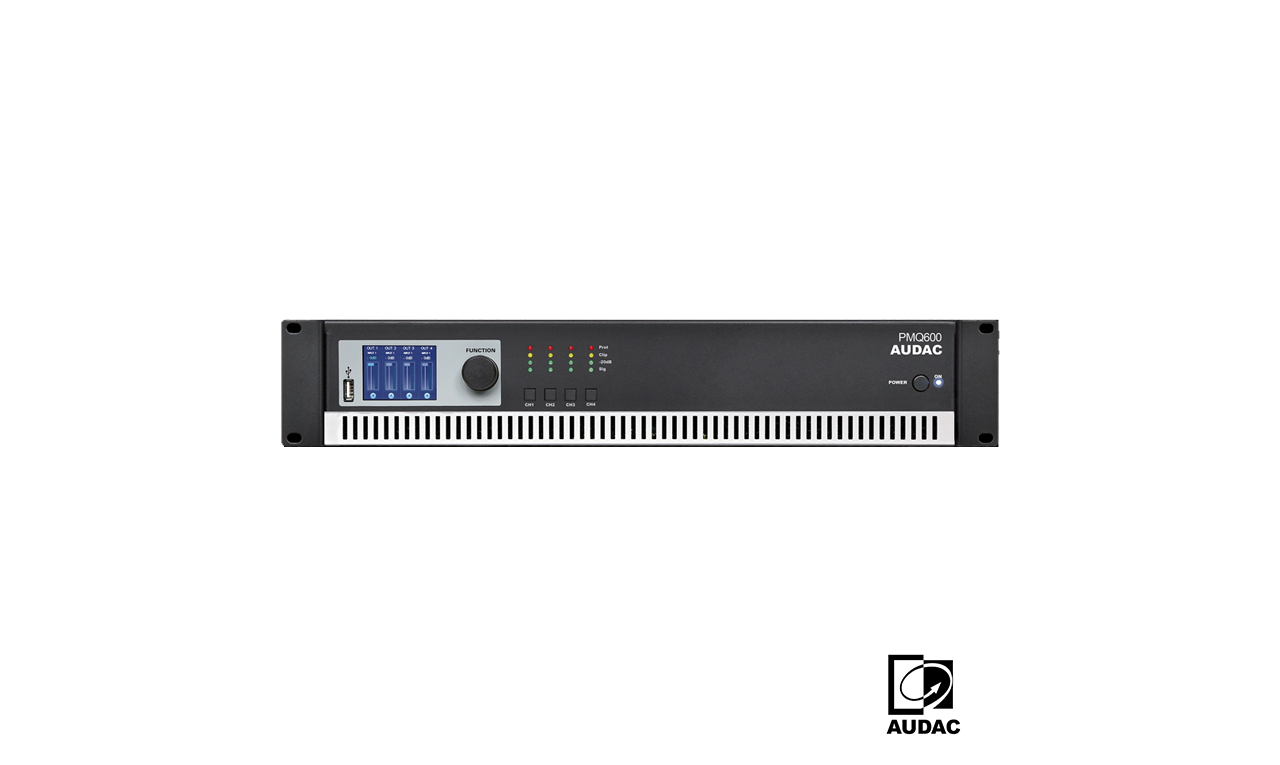

The PMQ600 is a four channel Class-D 70/100V power amplifier with an output power of 600 Watt for each channel. The WaveDynamics™ DSP processor combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.

Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7-Band equalizer both with adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection.

Configuration is made simple by the loudspeaker presets and full system configurations which can be selected from a library and uploaded with a USB flash drive. This ensures the best acoustical performance with a ‘bullet-proof’ loudspeaker protection.

A great input flexibility and source compatibility is offered by the input selection matrix and the XLR and terminal block signal connections. System integration is made easy using the RS-232 control port. Optional Dante™ interface is available for the WaveDynamics™ amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network.

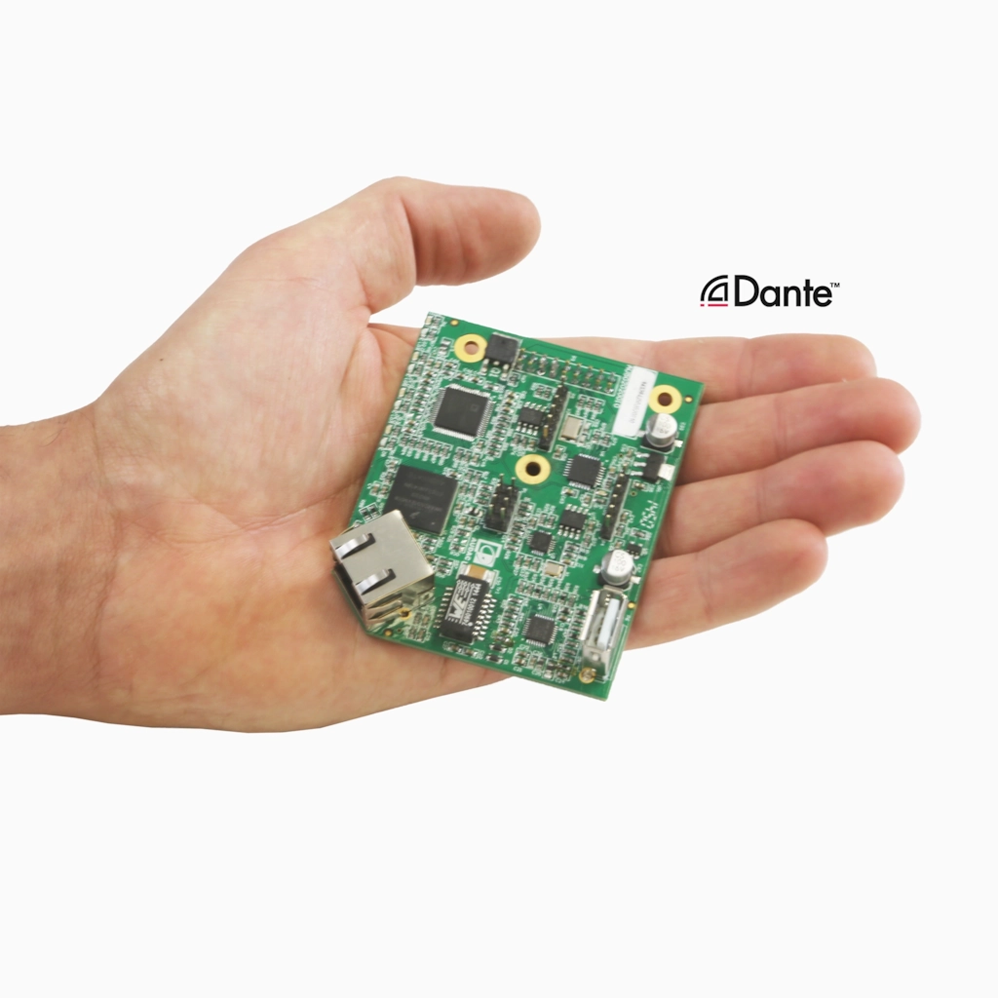

dante-technology

DECENTRALIZE YOUR AUDIO SOLUTIONS

TouchLink™ compatible

Create virtual zones by linking multiple TouchLink™ compatible devices. With the ANI44XT installed it is now possible to create virtual zones for not only the SMQ series but also for the entire SMA, PMQ power amplifier series and many more compatible devices.

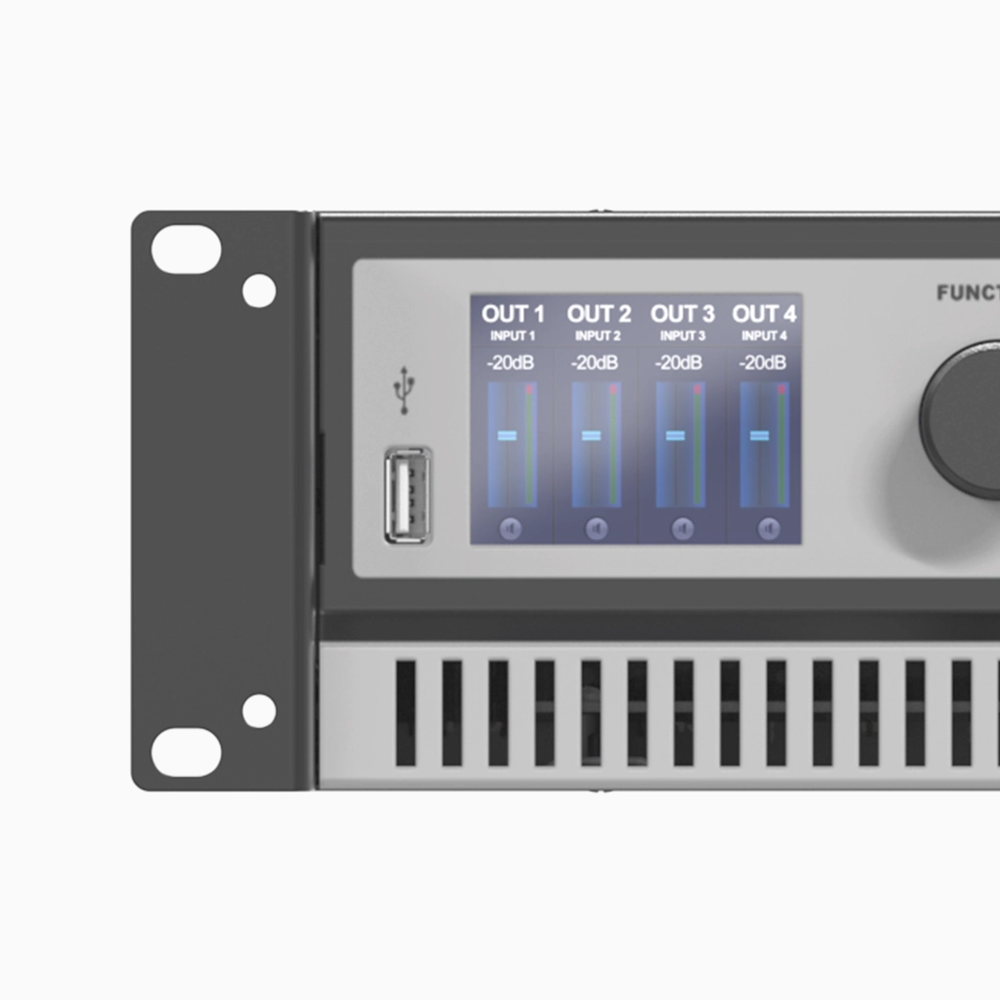

dsp-processor

INTEGRATED DSP PROCESSOR

WaveDynamics™ technology

Enables you to effortlessly master any acoustically challenging setting. By loading in the presets via the USB slot on the front of the device you can easily configure our loudspeaker management to your own preferences. You can create your own custom preset or choose one of our pre-made settings.

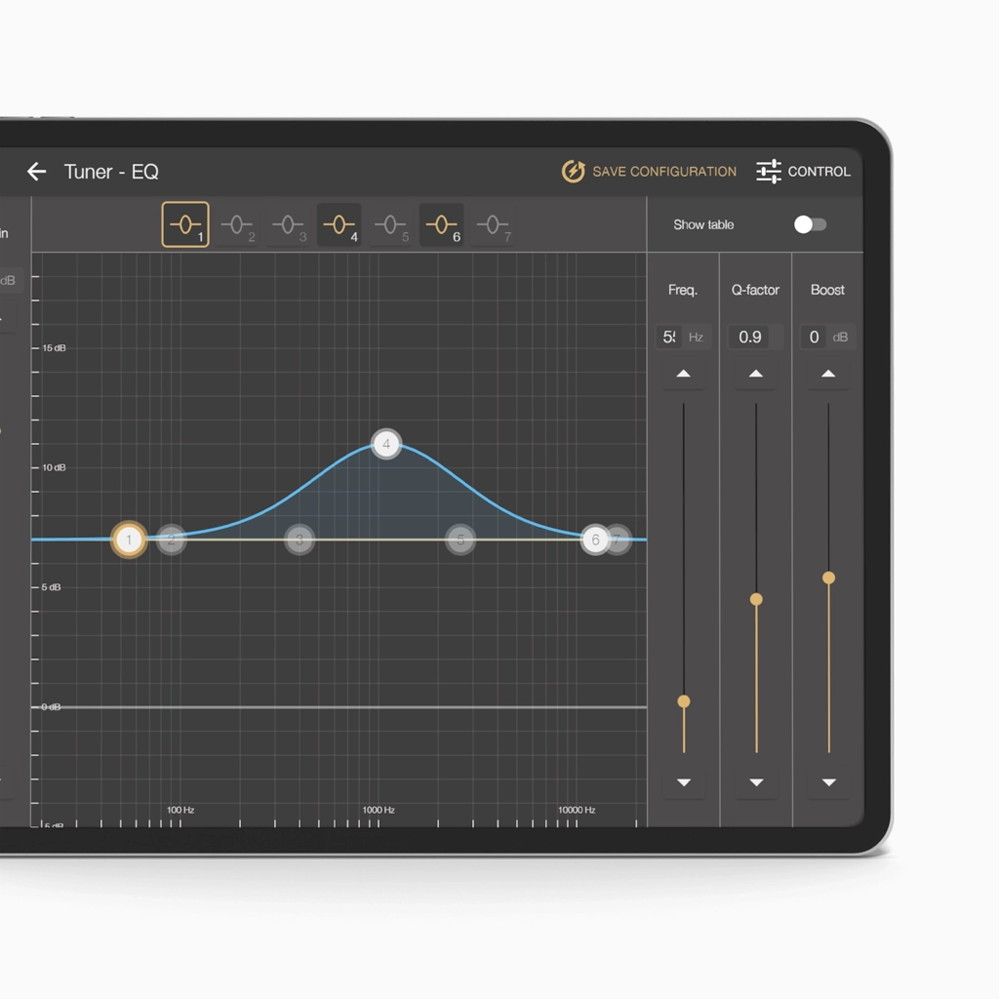

audac-touch

AMPLIFY SOUND, SIMPLIFY CONTROL

AUDAC Touch™ compatible

When the optional ANI44XT is installed our freely available application AUDAC Touch™ allows you to have full WaveDynamics™ capabilities, straight from the mobile device, tablet or computer from where the control of your complete system is also done. This results in true complete system control.

EASY WAY TO CONTROL YOUR SETUP

Scroll-Push control™

This extremely efficient way of controlling your user interface is incorporated in AUDAC wall panels, WaveDynamics™ amplifiers, audio players and MTX matrixes. It allows an easy and logical way of controlling volume and more advanced settings such as EQ and source selection. The Scroll-Push™ button also provides a design advantage to the front of the device by replacing a large selection of buttons.

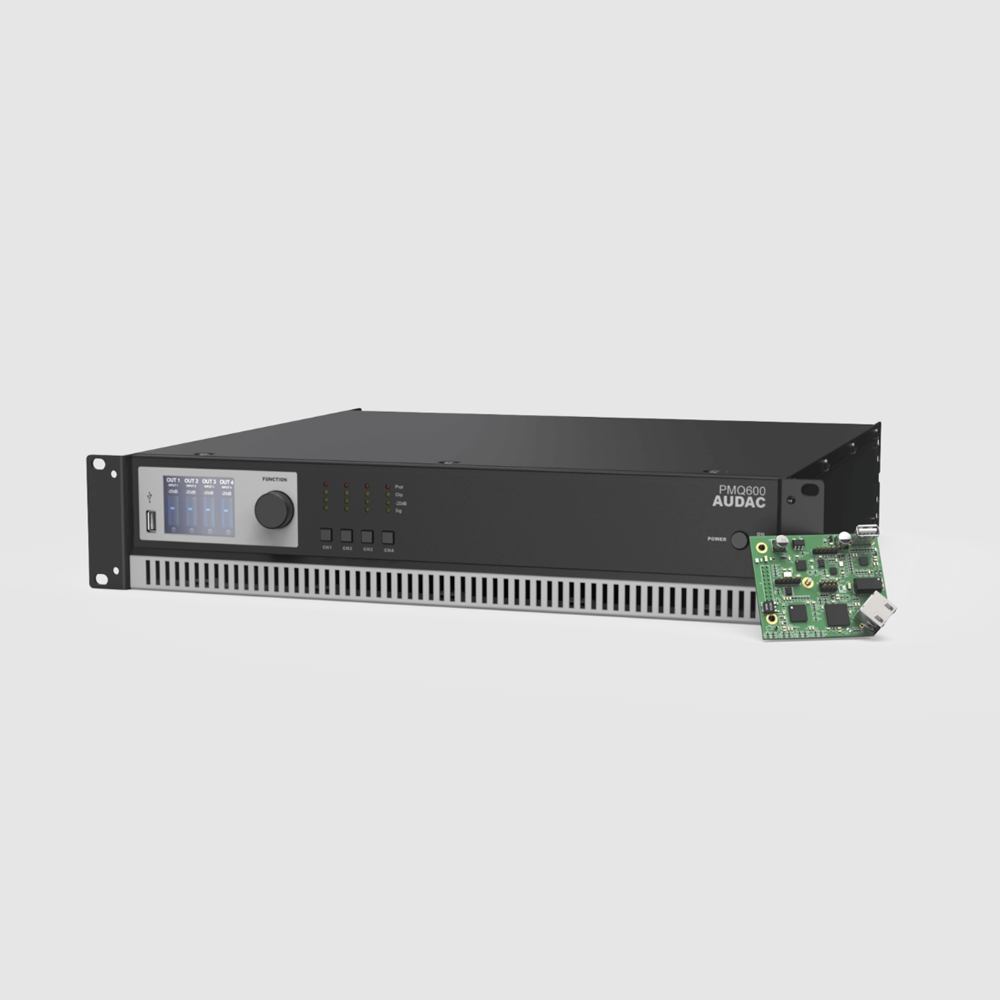

Combine with Dante technology

PMQ600 - Dante™ enabled

The possibility to extend the device with a Dante™ audio network interface is provided. The optional expansion module ANI44XT can be installed quickly and easily.

Technical Specifications

System Specifications

RMS/AES power handling

Frequency Response (± 3 dB)

Signal / Noise

Crosstalk (@ 1 kHz)

Min. load impedance

Technology

Power Supply

4 x 600W (PMQ600)

4 x 480W (PMQ480)

50 Hz – 20 kHz

< 95 dB

> 70 dB

8 Ω

Class-D

Switching mode
AC Input: 100-120V/220-240V~ 50/60Hz

Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility.



Inputs Sensitivity

Impedance

Common mode rejection ratio

Damping factor

Protection Amplifier

-30 dB ~ +5 dB

10 kΩ balanced

70 dB

> 200

DC Short circuit
Over heating
Over load
Signal limiting

Access

Cooling

Operating temperature

Inputs Connector

Outputs Connector

THD+N (@ 1 kHz)

User & Administrator level (Through password and USB-key protection)

Temperature controlled fan

0° ~ 40° @ 95% Humidity

XLR & 3-pin Euro Terminal Block (3.81 mm)

4-pin Euro Terminal Block (Pitch – 5.08 mm)

< 0.05% (1/2 Rated Power)

Product Features

Dimensions

Weight

Mounting

Unit height

Construction

Colours

482 x 88 x 420 mm (W x H x D)

8.6 kg

19″

2 HE

Steel

Black

Recommended Applications

Bars & Restaurants

Education

Corporate

Clubs

Events

Retail

Downloads

Additional information

Model

PMQ600, PMQ480
