Audac MPX88


Call for availability

Audac professional 8-Zone Paging Microphone for MTX88

Call for availability

SKU: MPX88 Categories: , Tag:


Audac MPX48 Microphone – Doneo Malta

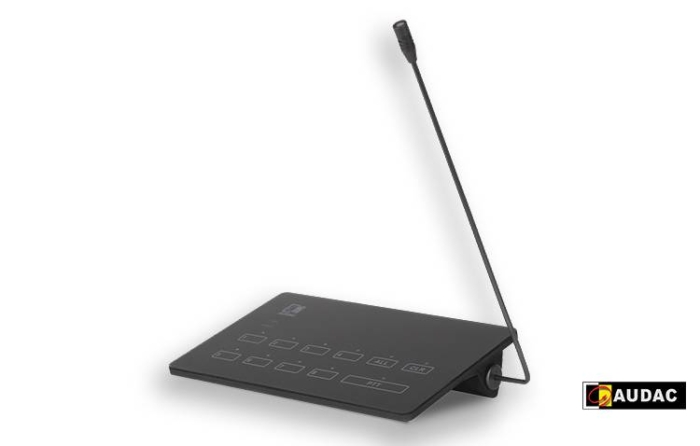

The microphone is specifically designed to be used in combination with the MTX88, 8 Zone Multi-Zone audio matrix system. The MPX88, with eight zone selection buttons, offers a plug-and-play solution for the MTX88 matrix system.

The construction is made of weighted ABS material and finished with an acrylic top panel. The buttons are integrated using the capacitive touch principle without any mechanically moving parts. Selection & status LED’s are integrated below the acrylic surface, giving an indication of the selected zones and databus status. Besides the zone selectors, quick operation is allowed through the Select & Clear all buttons, while the push-to-talk (PTT) button should be pressed during the announcement. An integrated chime tone is heard before any announcement.

Announcements can be made to the integrated pipe-neck microphone with a cardioid pickup pattern which can be tilted to the desired angle.

The microphone should be connected to the matrix system using the fixed cable with a length of 2 meters. The distance can be extended to a maximum length of 300 meters, using standard CAT5E (or better) twisted pair cabling. Cascading of multiple paging stations is made possible using the priority-based (user-configurable) databus, when using additional junction boxes ARJ03P or CP45ARJ.

Sensitivity (1W/1m) 45 dB
Sound Pressure (Max. W/1m) 130 dB
Connectors RJ45 (Fixed 2 m cable)
Polar Pattern Cardioid
Microphone Type Back electret condenser
Length 250 mm
Frequency Response (± 3 dB) 50 Hz – 16 kHz
Power Consumption 1.5 W
Supply 24 V DC (from MTX)

Additional information



Microphone Type

Microphone Features

Paging Microphone, Wired
