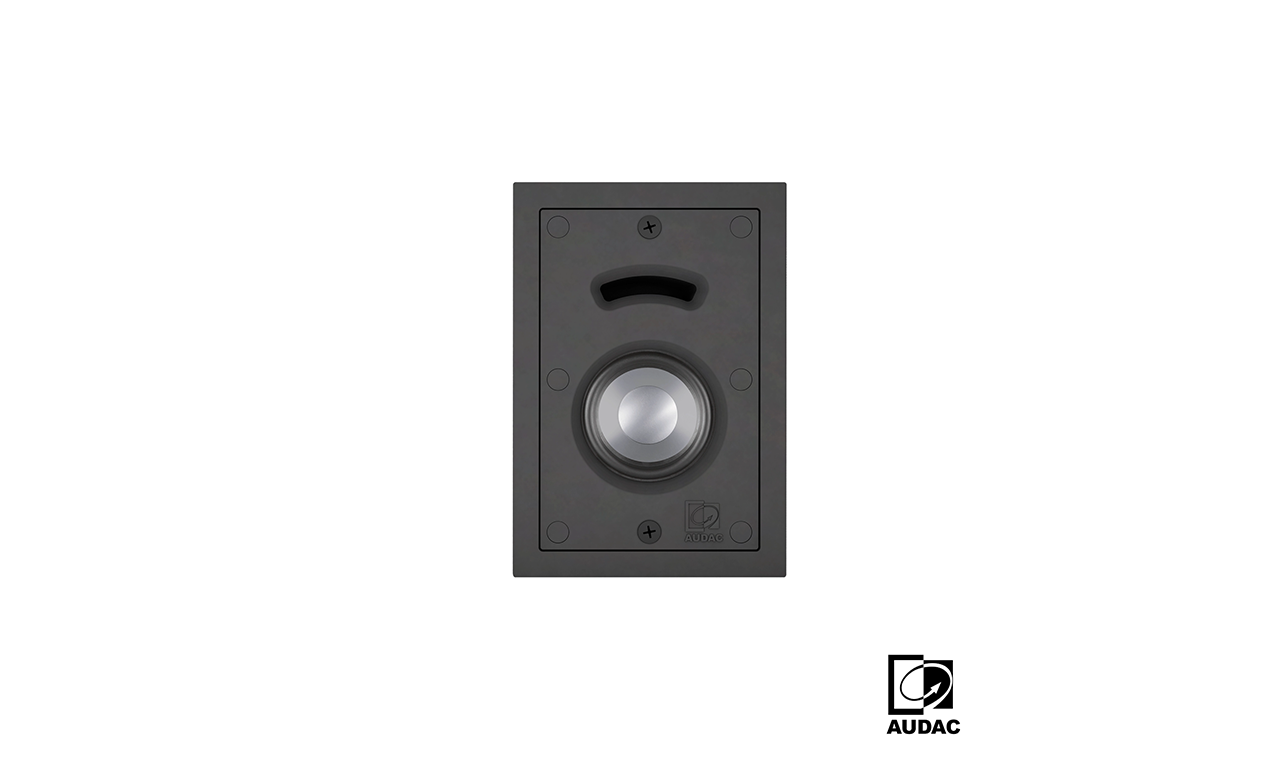

Audac Mero 6 – In-wall Speaker

222.50

High-end in-wall speaker 6″.The MERO speakers will blend beautifully into any interior due to their nearly invisible design making only their extraordinary sound draw your attention. Their slim grill with very thin border of only 1 mm and limited grill depth extrudes the surface by only 3.2 mm when installed.

  • SlimLine™ grill with 1mm thin border
  • Gold-Con™ spring clamps
  • 1″ + 6″ Aluminum membrane drivers

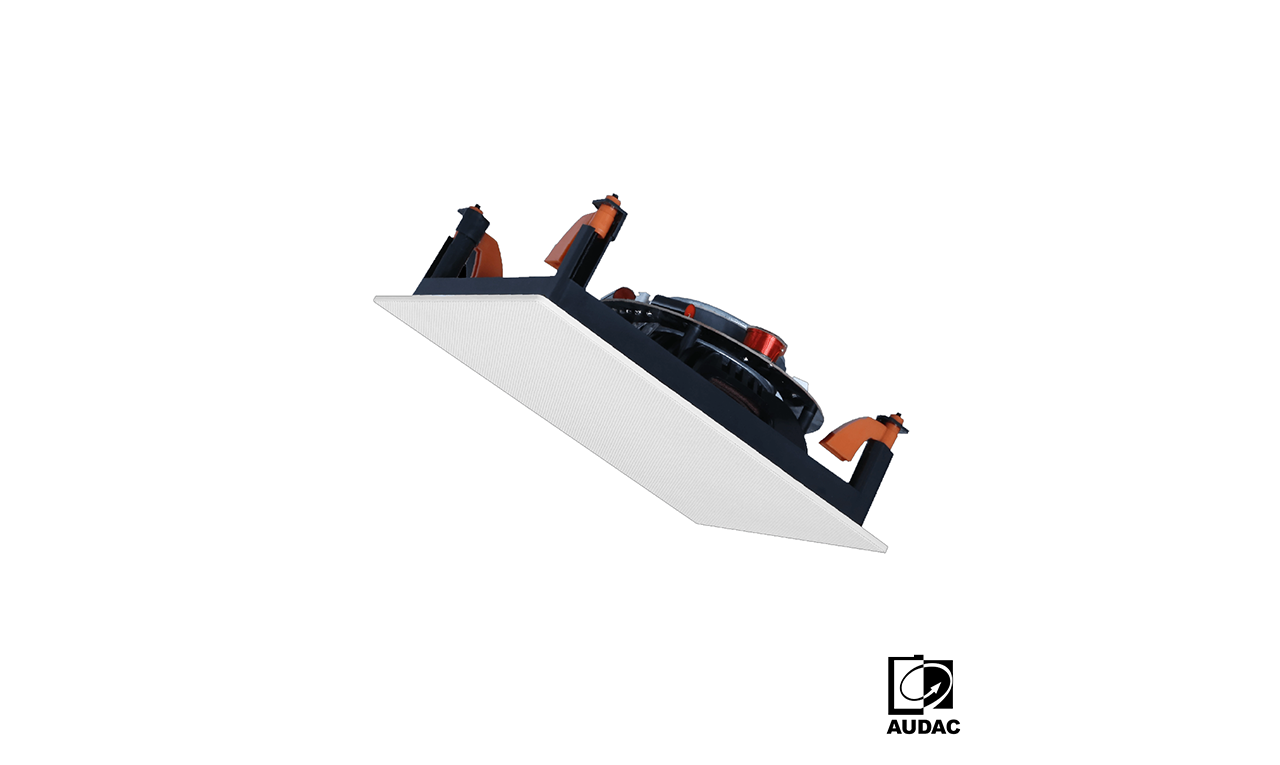

  • QuickFix installation system

Description

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The largest MERO6 consists of a 6” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network. An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phase-plug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound. An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. The grill is held in place using neodymium magnets, providing a quick and stable assembly. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.

Technical Specifications

Available Models

MERO5

White version – 8Ω

System Specifications

Speaker type

Peak power handling

Program power handling

RMS/AES power handling

Impedance

Sensitivity (1W/1m)

Sound Pressure  (Max. W/1m)

Frequency Response ( ±3dB)

Frequency Range ( -10dB)

Crossover Frequency

Crossover Type

Dispersion Horizontal

Dispersion Vertical

Connectors

Drivers HF

Drivers Rotation Angle

Drivers LF

2-way

240W

120W

60W

8Ω

88dB

106dB

55Hz-20Khz

44Hz-20Khz

3 kHz

Passive built-in

160°

140°

Gold-Con™ spring clamps

1” Aluminium membrane

7.5°

6″ Aluminium membrane (coaxial)

Product Features

Dimensions

Weight

Construction

Front finish

Cut-out measurement

Built-in depth

Mounting & handling

Operating temperature

Colours

Accessories Included

Accessories Optional

Included

196.5 x 276.5 x 82 mm (W x H x D)

1.660Kg

ABS

Thin edged white grill (RAL9003)

174 x 254 mm

78.5 mm

4 Screw quick-fixing mechanism

-20 °C ~ 60 °C

Black frame & white grill

Cut-out template

WTR24 – 24W 100V line transformer
GLM06/B – Black grill (RAL9005)
GLM06/P – Paintable grill

GLM06/W – White grill (RAL9003)

Recommended Applications

Hotels

Corporate

Residential

Bars & Restaurants

Retail

Downloads

Additional information

Brand

Audac

Speaker Type

In-Ceiling, Ceiling / Flush Mount, In-Wall

Title
