Audac Mero 2 – In-wall Speaker

73.2074.70

High-end in-wall speaker 2″. The MERO speakers will blend beautifully into any interior due to their nearly invisible design making only their extraordinary sound draw your attention. Their slim grill with very thin border of only 1 mm and limited grill depth extrudes the surface by only 3.2 mm when installed.

  • 2″ full range aluminum driver
  • SlimLine™ grill with 1mm thin border
  • Gold-Con™ spring clamps
  • QuickFix installation system
SEND EMAIL QUERY
SKU: N/A Categories: , ,

Description

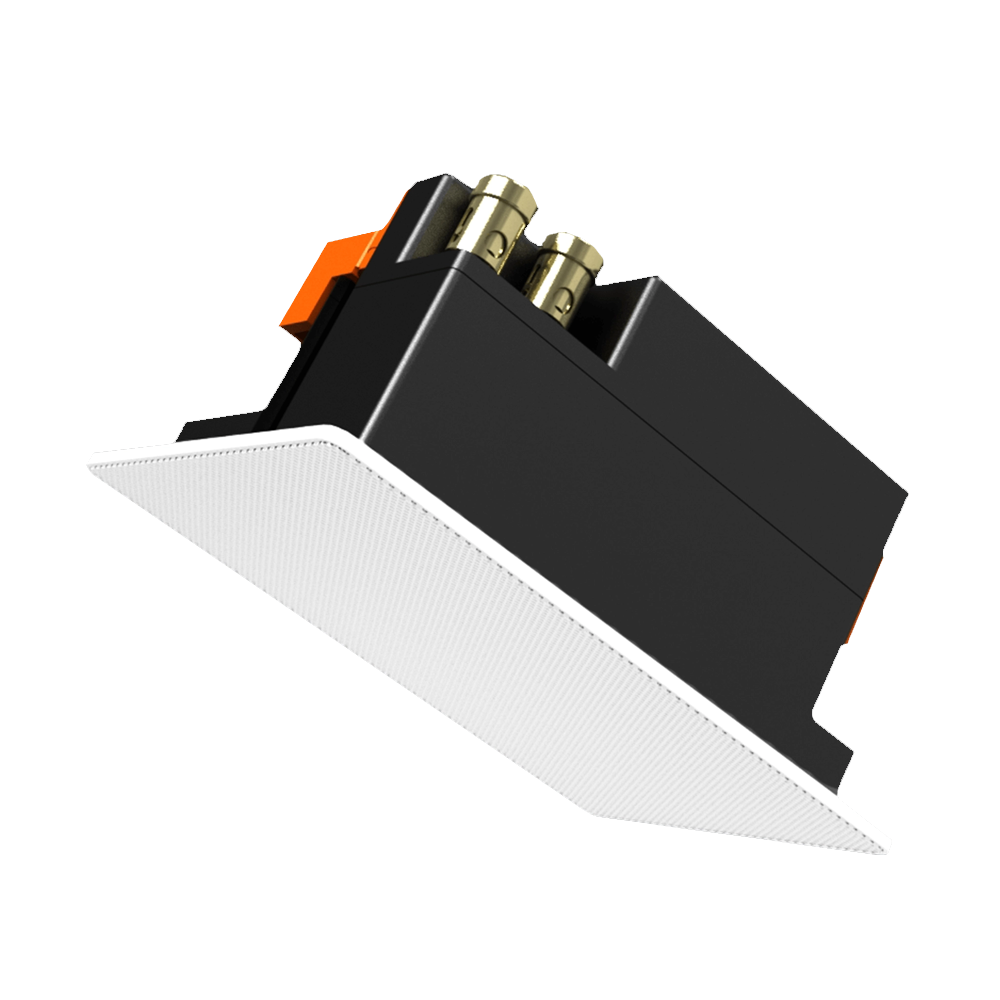

side-shot
front-side

The MERO speakers will blend beautifully into any interior due to their nearly invisible design making only their extraordinary sound draw your attention. Their slim grill with very thin border of only 1 mm and limited grill depth extrudes the surface by only 3.2 mm when installed. The Ultra-compact size enables the MERO2 smoothly integrate into any interior like no other loudspeaker. The outer dimensions only measure only 146 x 98 mm and the built-in depth which doesn’t exceed 70 mm allows installation in any surface while being unobtrusive. The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to a ported enclosure with closed back can. This way, a smooth sound reproduction with clear and crisp sound is guaranteed. An internal self-resetting network provides an optimal overload protection. All these details share their part to the quality of the MERO 2, resulting in a highly reliable loudspeaker producing a pure sound with a maximum power handling of 20 Watt and an RMS power handling of 10 Watt. An elegant look with minimal visual impact is created by the slim grill with very thin border, while lifetime stability, secure mounting and easy installation is guaranteed using the quick-fix mechanism which can be tightened by two screws and the Gold-Con™ spring clamp connectors. The grill is held in place using neodymium magnets, providing a quick and reliable assembly. Installation can be done both vertically and horizontally.

Technical Specifications

Available Models

MERO2

MERO2D

White version – 8Ω

White version – 16Ω

System Specifications

Speaker type

Peak power handling

Program power handling

RMS/AES power handling

Impedance

Sensitivity (1W/1m)

Sound Pressure  (Max. W/1m)

Frequency Response ( ±3dB)

Frequency Range ( -10dB)

Dispersion Horizontal

Dispersion Vertical

Connectors

Drivers

Full range

40W

20W

10W

8Ω (MERO2)

16Ω (MERO2D)

83dB

93dB

120Hz-20Khz

100Hz-20Khz

165°

165°

Gold-Con™ spring clamps

2” Aluminium membrane (coaxial)

Product Features

Dimensions

Weight

Construction

Front finish

Cut-out measurement

Built-in depth

Mounting & handling

Operating temperature

Colours

Accessories Included

Accessories Optional

Included

146 x 98 x 70 mm (W x H x D)

0.355Kg

ABS

Thin edged white grill (RAL9003)

128 x 80 mm

70 mm

2 Screw quick-fixing mechanism

-20 °C ~ 60 °C

Black frame & white grill

Cut-out template

WTR06 – 6W 100V line transformer
GLM02/B – Black grill (RAL9005)
GLM02/P – Paintable grill
WMM20 – In-wall box for MERO2

GLM02/W – White grill (RAL9003)

Recommended Applications

Hotels

Corporate

Residential

Bars & Restaurants

Retail

Downloads

Additional information

Brand

Audac

Model Type

Mero2, Mero2D

Speaker Type

In-Ceiling, Ceiling / Flush Mount, In-Wall
