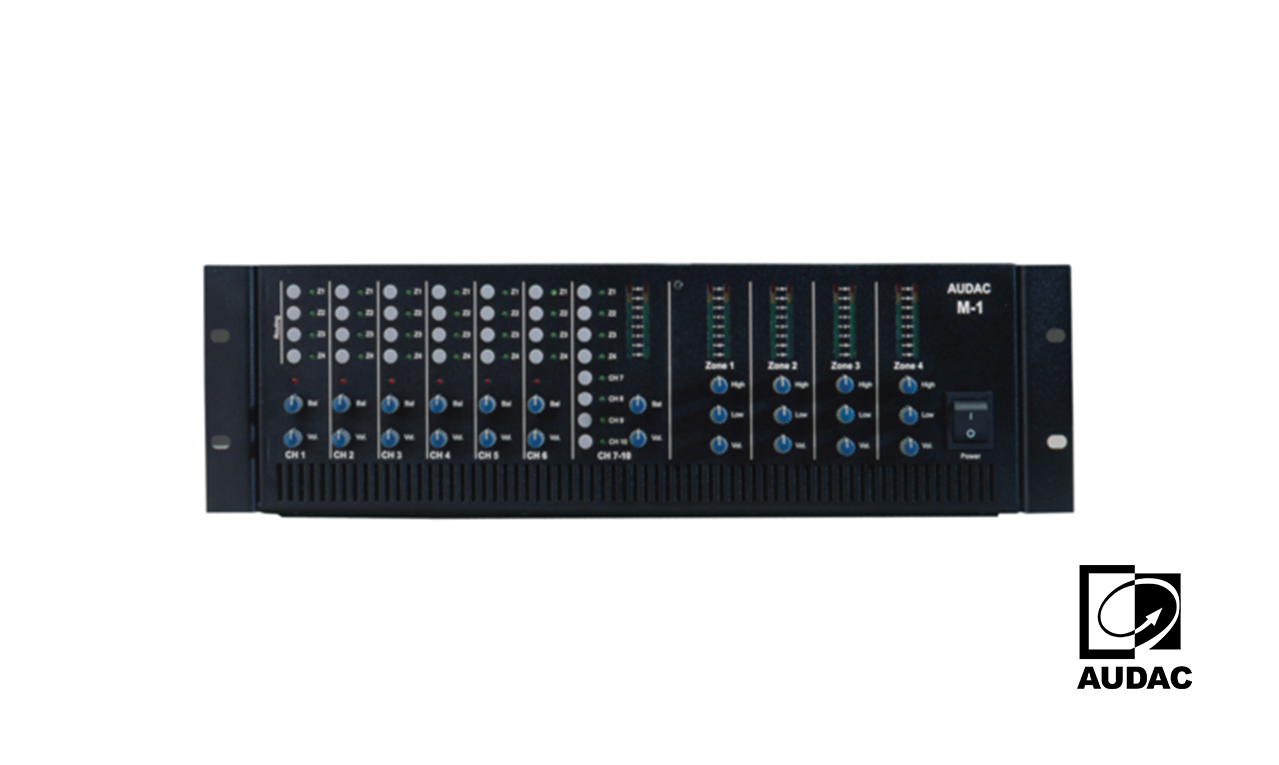

Audac M1 Amplifier / Mixer – Doneo Malta

Where other multizone amplifiers aren’t ‘all-in-one’-devices, the M1 is a truly polyvalent solution. It has the flexibility of an advanced multizone mixer, combined with serveral digital options. By simply surfing to the webpage, one can get full control of the M1 basic functions. The M1 can be directly plugged into a basic LAN network. No extra control software is needed, just a normal web-browser on your PC will do. Installation in commercial applications such as restaurants, clubs, bars, theaters, hotels, conference facilities, houses of worship and medical or professional offices. As a simple example, when installed in a restaurant, the M-1 can provide popular music in the bar, cocktail music in the lounge, jazz in the waiting area, and classical music in the dining room. Six microphones can be plugged in (XLR) with individual zone paging or mixing zone paging. Each room can have a digital wall mounted control panel for selecting a music source, and setting the volume

Sensitivity

• microphone input -60/-20 dB 600 Ohm balanced
• line input -20/+4 dB 10 K Ohm
• Frequency response 20 Hz – 20 kHz
• T.H.D. by 1 kHz less than 0.1 %
• Signal to noise ratio 100 dB
• Slew rate +/- 30 V/µsec

Digital control

• Serial port RS 232
• Remote zone control (1-4) RS 485
• Web based control Ethernet

Zonal outputs

• 1-4 +3 dB 150 Ohm balanced
• Output power per channel 100 Watt 8 ohm
• 150 Watt 4 Ohm
• Bridged mode 300 Watt 8 Ohm
• Power supply 240 V AC, 50-60 Hz
• Max.power consumption 600 W

Dimensions

• Weight 17,5 kg
• Dimensions (B x H x D) 482 x 132 x 350
• Unit height 3HE
