€443
The KYRA column speakers range is the elegant result of research in the field of phased array acoustics.
Design column speaker 6 x 2″
The elegant and qualitative result of research in the field of phased array acoustics, providing extraordinary detail and clarity for music and speech in challenging applications.
The KYRA column speakers range is the elegant result of research in the field of phased array acoustics. The selection of the highest quality materials including aluminum cone 2” drivers guarantee an extraordinary detail and clarity for music and speech, which is uncommon for any kind of column speaker available from the market. It makes them perfectly lend themselves to a wide variety of applications in acoustic difficult environments such as churches, auditoria, presentation and meeting rooms where audibility and intelligibility of music and speech have the highest importance.
They are housed in slim and elegant constructed enclosures made out of aluminum materials and finished with finely perforated grilles. An included mounting bracket with minimum distance to the wall allows swivelling and down-tilting for perfect directional placement.
The KYRA6 design column speaker consists of 6 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 60 Watt and the beamwidth of 174° x 28° (-6 dB avg 1 kHz – 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues.
A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 20W, 10W and 5W and/or low impedance (12Ω) systems.
*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB – 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.

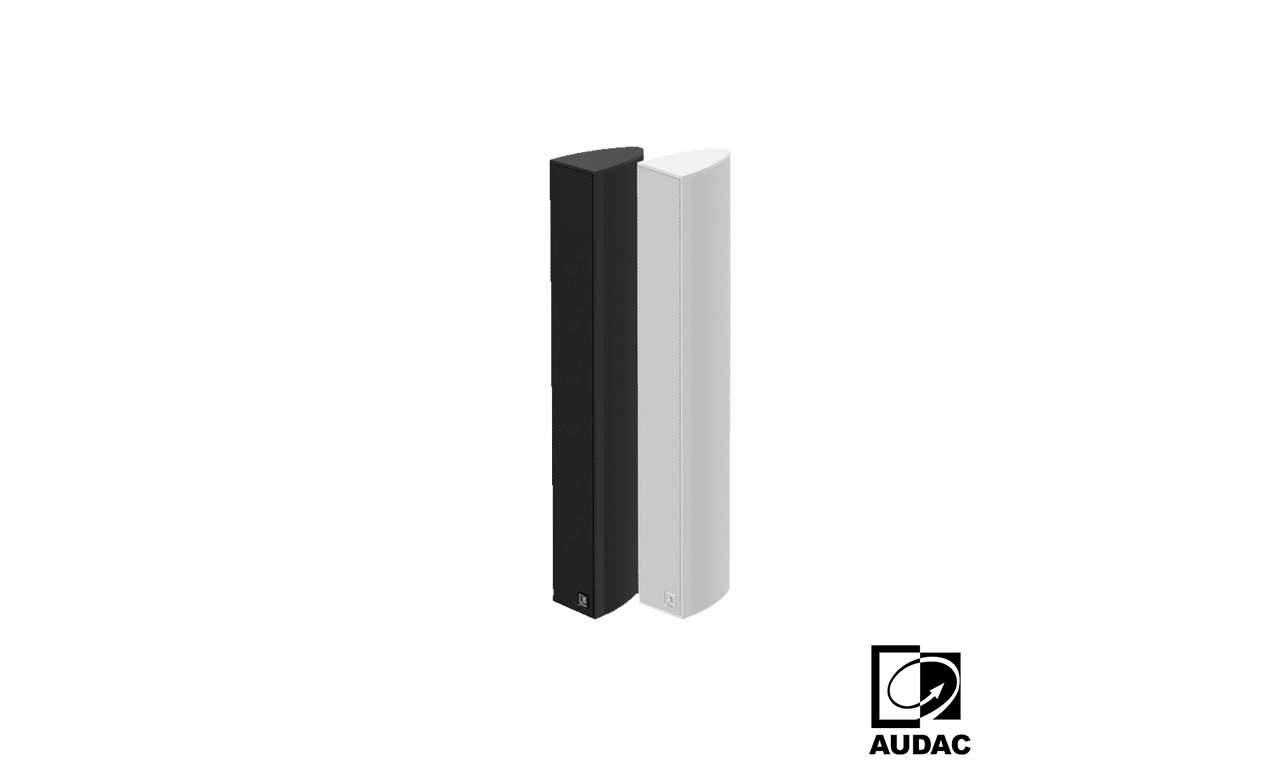

The KYRA column speakers are housed in slim and elegantly constructed enclosures made out of aluminum and finished with finely perforated grills.
An included mounting bracket allows easy swivelling and down-tilting. The renewed bracket ensures that the distance from the wall mounting surface to the front of the loudspeaker is only 147mm, which is 22mm less than the previous version, allowing the column loudspeaker to blend even more esthetically into its surroundings.
The power tapping switch of the KYRA’s indoor versions has been moved to the back of the speaker, allowing you to easily choose the right power tapping for the right 70V/100V application without removing the grill.
The improved 2″ drivers of the KYRA series are repositioned to provide an optimized coverage area.
| Available Models | ||
| KYRA6/B | Black Version | |
| KYRA6/W | White Version | |
| System Specifications | ||
| Speaker Type | Broadband column | |
| Peak power handling | 240W | |
| Program power handling | 120W | |
| RMS/AES power handling | 60W | |
| Impedance | 12Ω | |
| Sensitivity (1W/1m) | 90 dB | |
| Sound Pressure (Max. W/1m) | 106 dB | |
| Frequency | Range (-10 dB) | 120 Hz – 20 kHz |
| Response (± 3 dB) | 150 Hz – 20 kHz | |
| Drivers | 6 x 2” | |
| Line Transformer Tappings | 1 | 20 W – 250 Ω (70V) |
| 2 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
| 3 | 1000 Ω – 100 V / 10 W – 70 V / 5 W | |
| 4 | 2000 Ω – 100 V / 5 W – 70 V / 2.5 W | |
| Ingress Protection rating | IP3x | |
| Temperature | Operating | -20 – +50 °C |
| Incline angle | Left | 42° |
| Right | 42° | |
| Bottom | 13° | |
| Dispersion | Horizontal | 174° (-6 dB avg 1 kHz – 4 kHz) |
| Vertical | 28° (-6 dB avg 1 kHz – 4 kHz) |
| Product Features | ||
| Dimensions | 70 x 546 x 101 mm (W x H x D) | |
| Colours | Black (KYRA6/B – RAL9005) | |
| White (KYRA6/W – RAL9003) | ||
| Front finish | Steel grill | |
| Construction | Aluminium with plastic side covers | |
| Accessories | Included | 1 x 3-pin Euro Terminal Block Input connectors |
| 2-way Revolving mounting bracket | ||
| Recommended Applications | ||
| Education | ||
| Corporate | ||
| House of Worship | ||
| Events |
| Brand | Audac |
|---|---|
| Colour | Black, White |
| Speaker Type | Surface mount, Background Speaker |
