Audac KYRA12_O – Speaker

Call for price

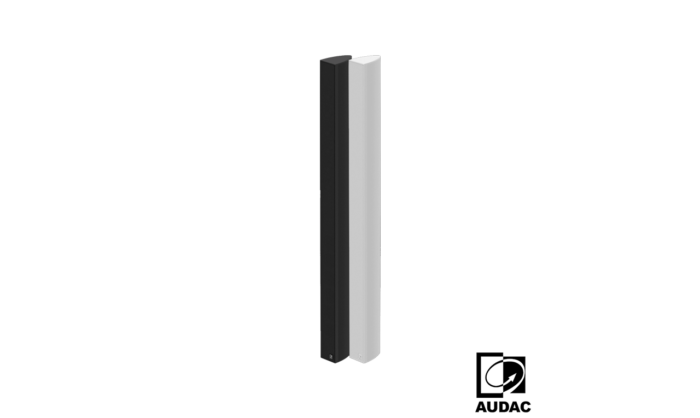

The KYRA12 design column speaker consists of 12 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound.

Outdoor design column speaker 12 x 2″

  • IP55 Ingress protection
  • AWX5™ waterproof connector
  • Multi-functional wall bracket allowing swiveling and down-tilting
  • Slimline aluminum design
  • 12 x 2″ high-quality broadband speakers
  • Multi-tapping 70V / 100V line transformer
SEND EMAIL QUERY

Description

KYRA SERIES

Overcome acoustical challenges.

The elegant and qualitative result of research in the field of phased array acoustics, providing extraordinary detail and clarity for music and speech in challenging applications.



The KYRA12 design column speaker consists of 12 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 120 Watt and the beamwidth of 174° x 9° (-6 dB avg 1 kHz – 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues

A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 40W, 20W and 10W and/or low impedance (12Ω) systems.**

To guarantee the optimal performance and long term reliability in outdoor circumstances, various specific features are provided. The connection of the loudspeaker is performed using a waterproof rotatable AWX-5 connector whereby the desired power tap can be selected depending on the rotation of the connector. Secondly, the 12 drivers receive a special coating to protect them from the elements while an acoustically transparent and water-repellent cloth driver keeps penetrating water at a safe distance.

Further added reliability is achieved by using an aluminum front grill and a stainless steel mounting bracket. Together, these improvements result in a weatherproof IP55 column speaker of exceptional quality and design!

*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB – 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.

**Due to an optimized calibration, the KYRA12, compared to its predecessor the AXIR, will have a standard low impedance of 12 ohms instead of 6 ohms.

GREAT DURABILITY

Only the highest quality materials

The KYRA column speakers are housed in slim and elegantly constructed enclosures made out of aluminum and finished with finely perforated grills.



EASY SWIVELLING AND DOWN-TILTING

Advanced mounting possibilities

An included mounting bracket allows easy swivelling and down-tilting. The renewed bracket ensures that the distance from the wall mounting surface to the front of the loudspeaker is only 147mm, which is 22mm less than the previous version, allowing the column loudspeaker to blend even more esthetically into its surroundings.



70/100V APPLICATIONS

Plug-and-play multi-tapping

The power tapping switch of the KYRA’s indoor versions has been moved to the back of the speaker, allowing you to easily choose the right power tapping for the right 70V/100V application without removing the grill.



OPTIMIZED SPEAKER DRIVER PLACEMENT

Impressive coverage area

The improved 2″ drivers of the KYRA series are repositioned to provide an optimized coverage area.



FULLY WEATHERPROOF

Outdoor Application

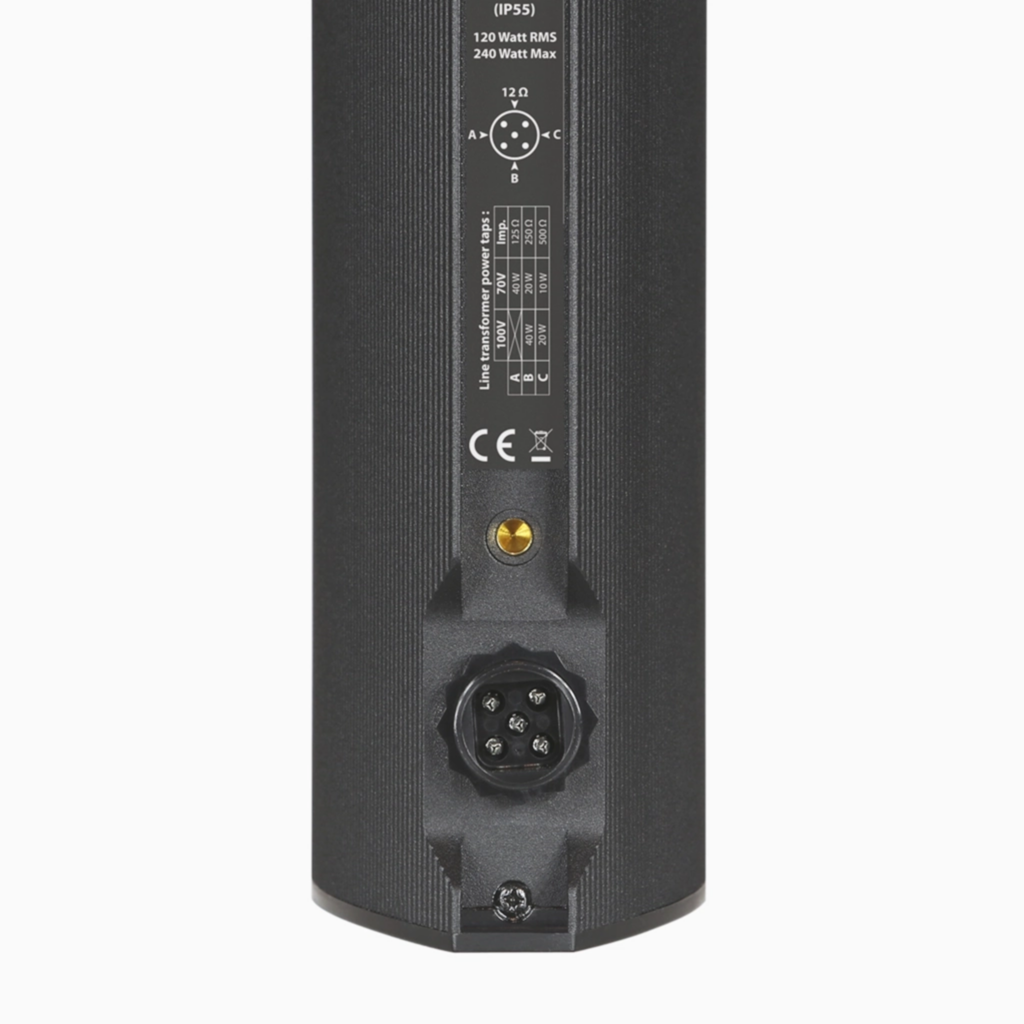

The AWX5™ connector is a specially designed connector that prevents the use of extra equipment and adjusting to a speaker system for setting the desired power tapping and maintaining a IP55 waterproof connection.



Technical Specifications

Available Models
 KYRA12/OBBlack Version
 KYRA12/OWWhite Version

System Specifications
Speaker Type  Broadband column
Peak power handling 480W
Program power handling 240W
RMS/AES power handling 120W
Impedance  12Ω
Sensitivity (1W/1m) 92 dB
Sound Pressure (Max. W/1m) 113 dB
FrequencyRange (-10 dB)120 Hz – 20 kHz
Drivers 12 x 2”
Line Transformer Tappings140 W – 125 Ω (70V)
 2250 Ω – 100 V / 40 W – 70 V / 20 W
 3500 Ω – 100 V / 20 W – 70 V / 10 W
Ingress Protection rating IP55
TemperatureOperating-20 – +50 °C
Incline angleLeft42°
 Right42°
 Bottom13°
DispersionHorizontal174° (-6 dB avg 1 kHz – 4 kHz)
 Vertical9° (-6 dB avg 1 kHz – 4 kHz)
Connectors Waterproof AWX-5 connector
Product Features
Dimensions  70 x 1006 x 101 mm (W x H x D)
ColoursBlack (KYRA12/OB – RAL9005)
  White (KYRA12/OW – RAL9003)
Front finish Aluminum grill
Construction Aluminum with plastic side covers
AccessoriesIncludedIncluded 5-pin AWX5 connection cable
  2-way Revolving mounting bracket
Recommended Applications
  Education
  Corporate
  House of Worship
  Events

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

Surface mount, Background Speaker
