Audac IMEO2 – Soundbar

299.70

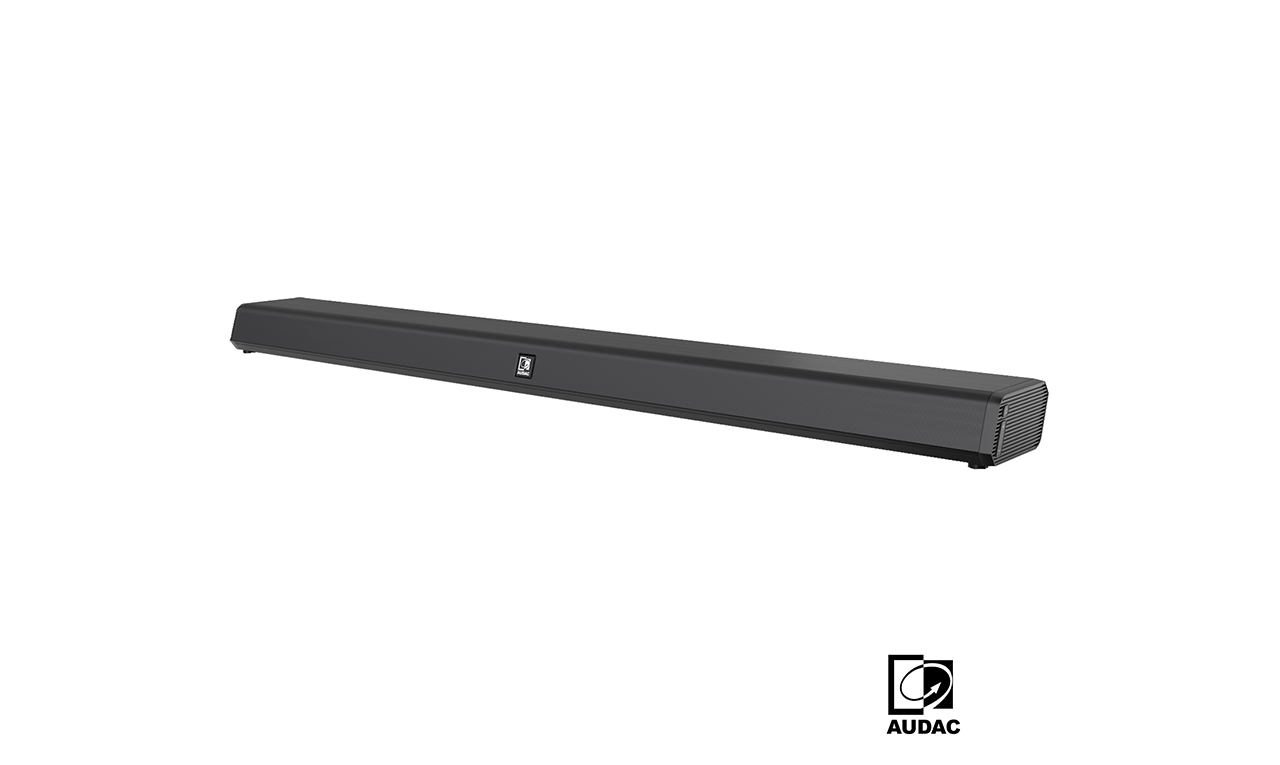

The IMEO2 Soundbar features a slim and elegant design and includes all required functions for expansion of any audiovisual system with an impressive sound, while having a minimal hassle for installation. It’s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens,smartboards or projectors.

  • 3-way soundbar design
  • Integrated Bluetooth receiver
  • Clever bracket system included
  • Integrated subwoofer
  • Preset equalizer modes
  • HDMI (ARC with CEC) input
  • Optical & coaxial inputs (SPDIF)
  • Included remote control
SEND EMAIL QUERY

Description

IMEO SERIES

Crystal-clear sound production.

A clever yet qualitative audio solution in meeting rooms, class rooms, hotel rooms and many more applications.



The IMEO2 Soundbar features a slim and elegant design and includes all required functions for expansion of any audiovisual system with an impressive sound, while having a minimal hassle for installation. It’s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens,smartboards or projectors.

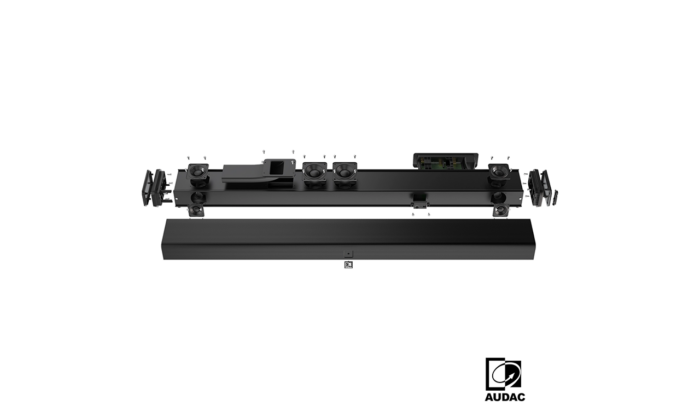

The acoustics originate from a 3-way speaker construction, composed of two 1.5” high frequency drivers, two 2″ mid frequency drivers and a low frequency section with two 2.5” low frequency drivers with an RMS rating. The power handling reaches an overall level of 60 Watt RMS. The Class-D amplifier with integrated WaveSelect DSP processing and transmission line configuration for the low-frequency drivers offers a crystalclear sound reproduction with stunning low-frequency response. Selectable DSP presets offer optimization for applications such as presentations, music playback or video’s.

Various input possibilities such as an unbalanced line input, HDMI (ARC) input or SPDIF (optical and coaxial) allow compatibility with a variation of input sources, while an integrated 4.2 Bluetooth receiver allows wireless connections with portable devices. In installations with multiple IMEO’s installed throughout the area, it can be desirable to assign custom Bluetooth ID’s to distinguish them from each other. Typical applications are hotels, conference rooms, schools, … The hotel mode function in the firmware offers a solution for these applications. An additional function is also implemented to define a specific wake-up source, allowing the IMEO2 to always turn-on with the same input source selected, no matter which input source was selected before power-down. An USB interface enables the playback or storage of media and voice files. In addition, the USB interface also allows the connection of memory device of your choice.

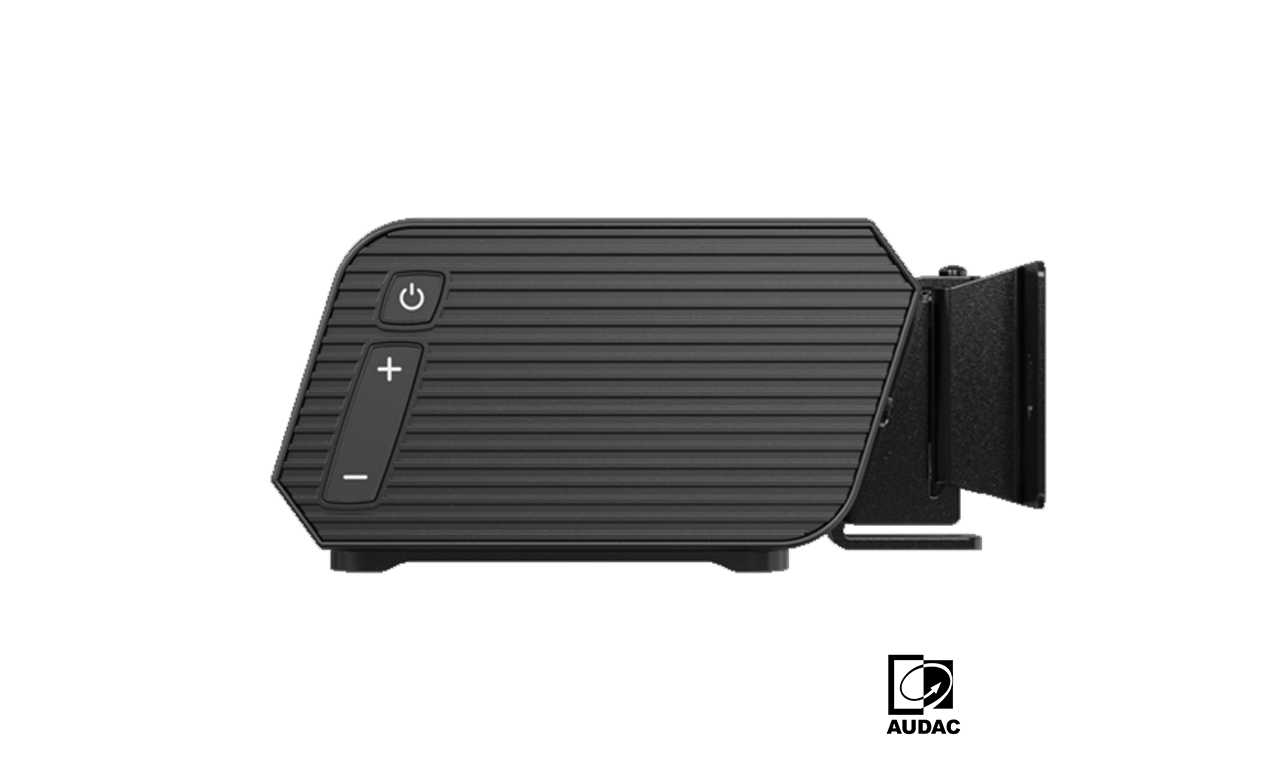

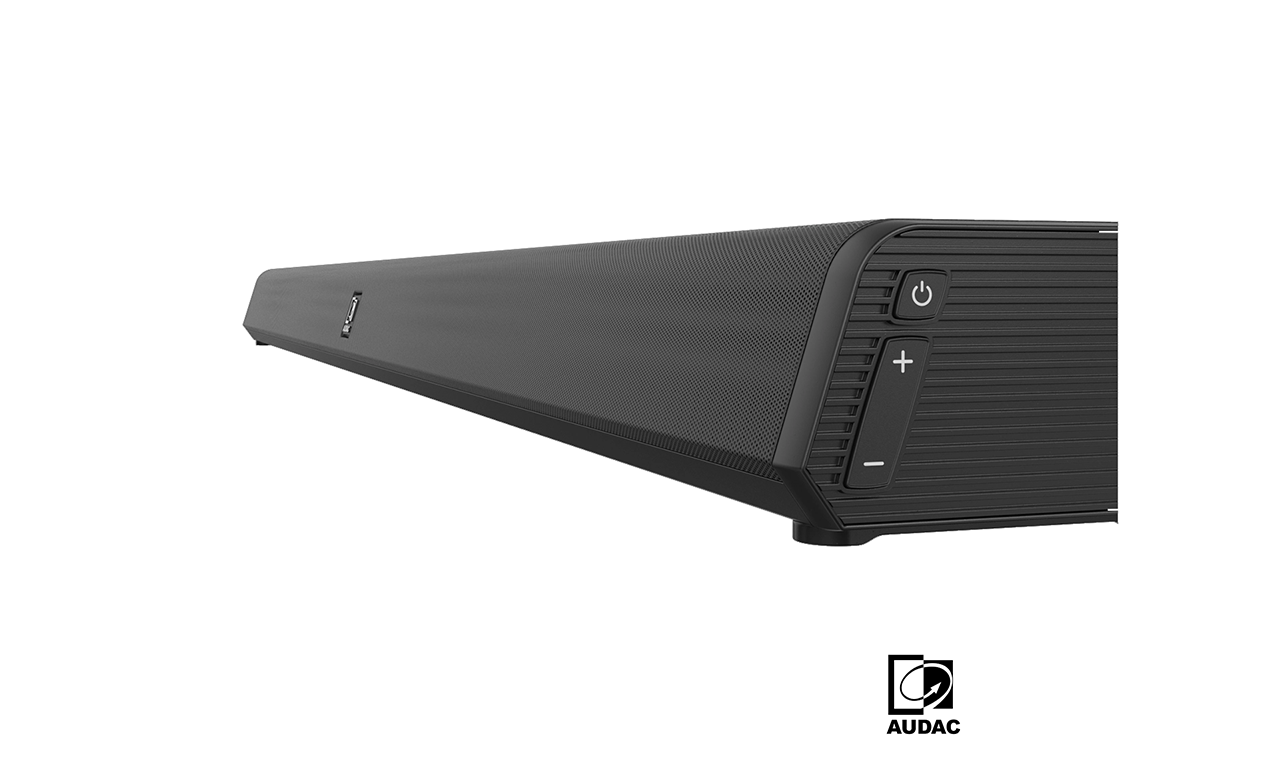

Quick side controls on the device allows input selection and volume control. These same tactile buttons permit to lock both input and volume, which again is very useful in hotel or education environments to set the right expectations.

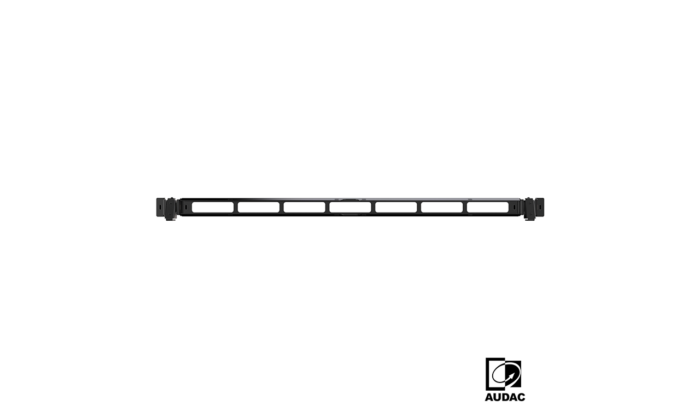

An included IR remote control allows input selection, volume control and EQ preset selection while the unique and clever wall mounting bracket allows convenient mounting to walls on any kind of surface or location with an optimal guiding andcoverage for the cables. The soundbar can be versatile mounted above or below any projection screen, in addition it is also possible to use the optional MBK440 screen mounting bracket to mount the professional soundbar on the wall or any trolley that is compliant with VESA200 to VESA700.

The auto standby function ensures that the IMEO is automatically put in energy-saving mode. This way, no unnecessary energy is lost, while the IMEO remains ready to play at any moment. This also means the IMEO2 has obtained an ENERGY STAR® certification.

hotel-use

CUSTOM BLUETOOTH ID'S

Hotel Mode

For installations with multiple IMEO’s throughout the building, it can be very useful to assign custom Bluetooth ID’s to distinguish them from each other. This function allows you to name your IMEO after the hotel room the soundbar has been installed in.

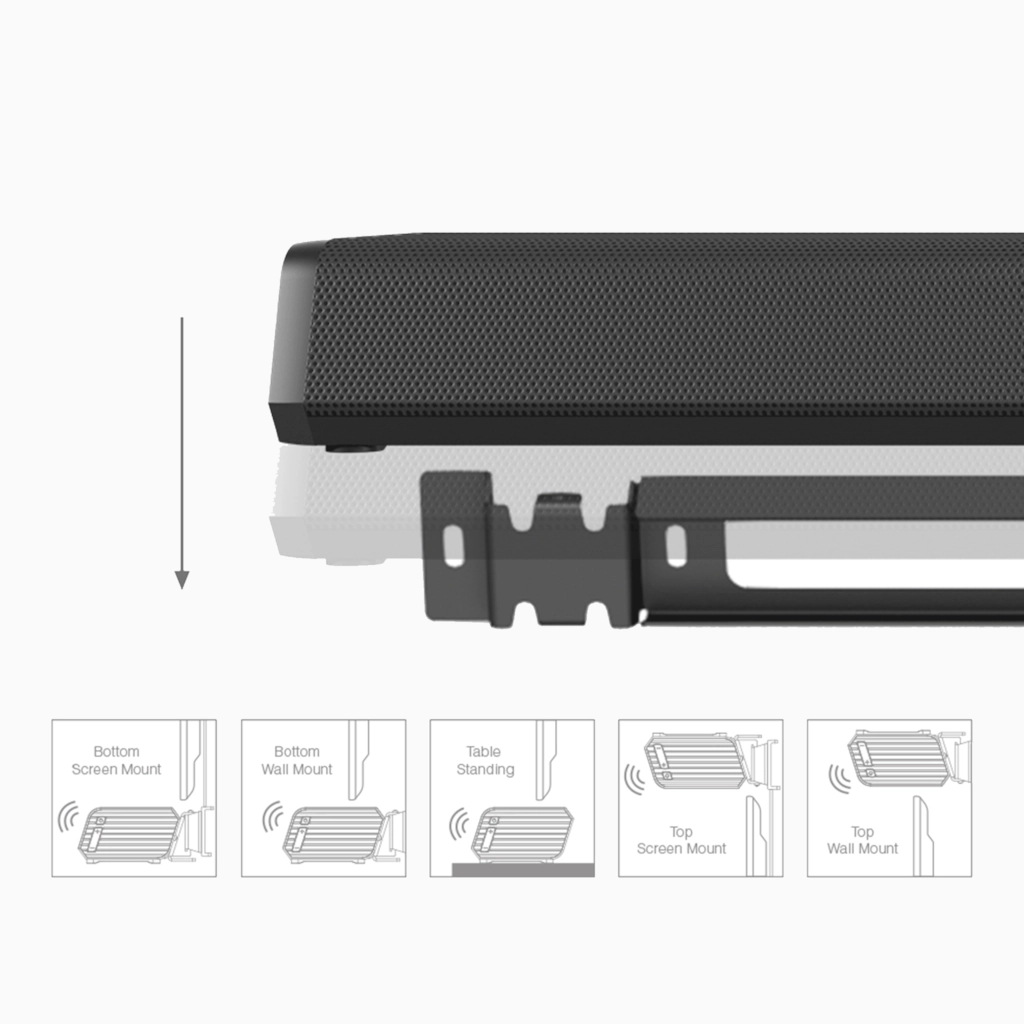

versatile-mounting

NO APPLICATION TO DIFFICULT

True versatile mounting

It’s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens, smartboards or projectors.



Technical Specifications

Available models

IMEO2/B

Black Version

System Specifications

Outputs

Sound Pressure (Max. W/1m)

Frequency Response (± 3 dB)

THD+N (@ 1 kHz)

Bluetooth specification

Drivers

Power

Inputs

Control

–

Energy certification

Power

HF

MF

LF

Consumption

Source

Consumption Standby

Connector

2 x 15W

1 x 30W

90dB

40 Hz – 20 kHz

1%

1V4.2

Class 2 output power

2 x 1.5”

2 x 2”

2 x 2.5”

30W

100 ~ 240 V AC / 50 ~ 60 Hz

0.5W

3.5 mm Jack (Unbalanced)

Coaxial SP/DIF digital input

HDMI ARC

USB Playback (MP3, FLAC, WAV)

Optical & coaxial inputs (SPDIF)

Remote control (IR)

Selection / volume switches (side panel)

Energy Star 3.0

Product Features

Weight

Dimensions

Colours

Mounting & handling

Front finish

Construction

Accessories Included

4.24kg

1000 x 60.8 x 111.3 mm (W x H x D) (Excl.bracket)

1000 x 60.8 x 134.8 mm (W x H x D) (Incl.bracket)

Black

Mounting wall bracket

Steel grill

ABS

Power cable

Wall mounting bracket

Remote control (IR)

3.5 mm jack audio cable (1 meter)

3.5 mm jack audio pigtail (0.15 meter)

90° HDMI angle adapter



Downloads

Additional information

Brand

Audac

Soundbar Features

Bluetooth

Colour

Black
