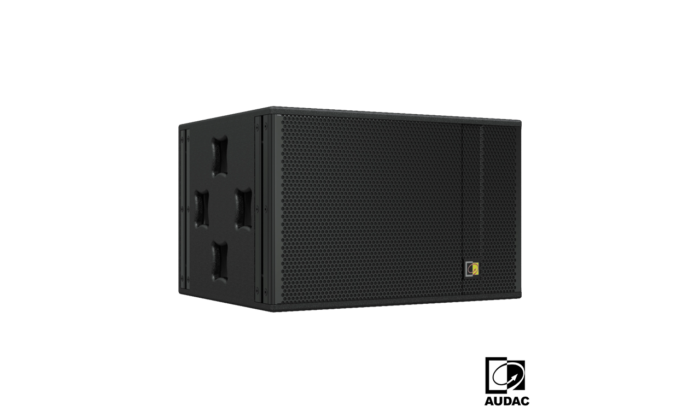

Audac FX3.15 – High Performance Speaker

2,180.60

The FX3.15 is a 3-Way high-output, active driven compact High / Mid / Mid-Bass speaker cabinet which is a part of the unique and versatile FX series system.

High-output cabinet 15″

  • High quality 18 mm plywood
  • Integrated carry handle on both sides
  • Integrated metal rigging frame
  • DuraCoat™ texture paintwork
  • IP55 Ingress protection
  • High output 3-way active driven system
  • 90° x 40° Rotatable horn
SEND EMAIL QUERY

Description

The FX series is a unique and versatile speaker system series. When you combine the FX1.18 bass cabinet with the FX3.15 3-way active speaker cabinet, this truly modular system can be scaled and adapted for every application where a powerful system with a high clarity and sound quality is required. The compact enclosures are provided with weatherproof and scratch resistant DuraCoat textured paintwork and are fitted with eight carry handles allowing easy carriage and handling of the system. The integrated metal rigging frame allows easy and secure rigging, allowing multiple cabinets to be rigged together. The FX3.15 is a 3-Way high-output, active driven compact High / Mid / Mid-Bass speaker cabinet which is a part of the unique and versatile FX series system. This three-way cabinet includes a 15” horn-loaded Mid-Bass driver, 6” loaded mid speaker and 1.75” PEEK (Polyether ether ketone) compression driver. The entire system has a power handling of 750 Watt RMS with a maximum power of 1500 Watt. The Mid-Bass section takes part for 500 Watt RMS while the Mid section takes part for 200 Watt RMS and the High section represents 50 Watt RMS. The horn with a coverage pattern of 90° x 40° incorporates both High and Mid frequency drivers which can be rotated allowing complete flexibility in selection of horizontal & vertical as well as left & right positioning. This system shall be active processed and powered by separate amplifiers for each section. The connections for each sections are performed using two 8-pin speakon compatible connectors, allowing linkthrough when multiple identical speakers are used in the same system.

Technical Specifications

System specifications
Speaker Type  3-way high outputs speaker cabinet

Peak power handling

 3000W
Program handling  1500W
RMS/AES power handling 750W
Impedance
Sensitivity (1W/1m) 105 dB
Sound Pressure (Max. W/1m) 134 dB
FrequencyResponse (± 3 dB)130 Hz- 20 kHz
 Range (-10 dB)85 Hz – 20 kHz
CrossoverTypeActive Driven System
DispersionHorizontal90° (Rotatable)
 Vertical40° (Rotatable)
Ingress Protection Rating IP55
Connectors 2 x 8-pin Speakon compatible connector (Allowing linkthrough)
DriversHF1.75″ PEEK
 MF6″ Neodymium
 LF15″ ferrite
Product Features
Dimensions 714 x 456 x 580 mm (W x H x D)
Weight 47.500 kg
Construction 18 mm solid plywood with Dura Coat weather and scratch resistant coating
Mounting & handlingCarry handles8 Integrated carry handles
 RiggingIntegrated metal rigging frame
Recommended applications  Bars & Restaurants
  Clubs
  Education
  Sporting Facilities
  Events
  Concert Venues



Additional information

Brand

Audac

Speaker Type

Floorstanding, Indoor/outdoor
