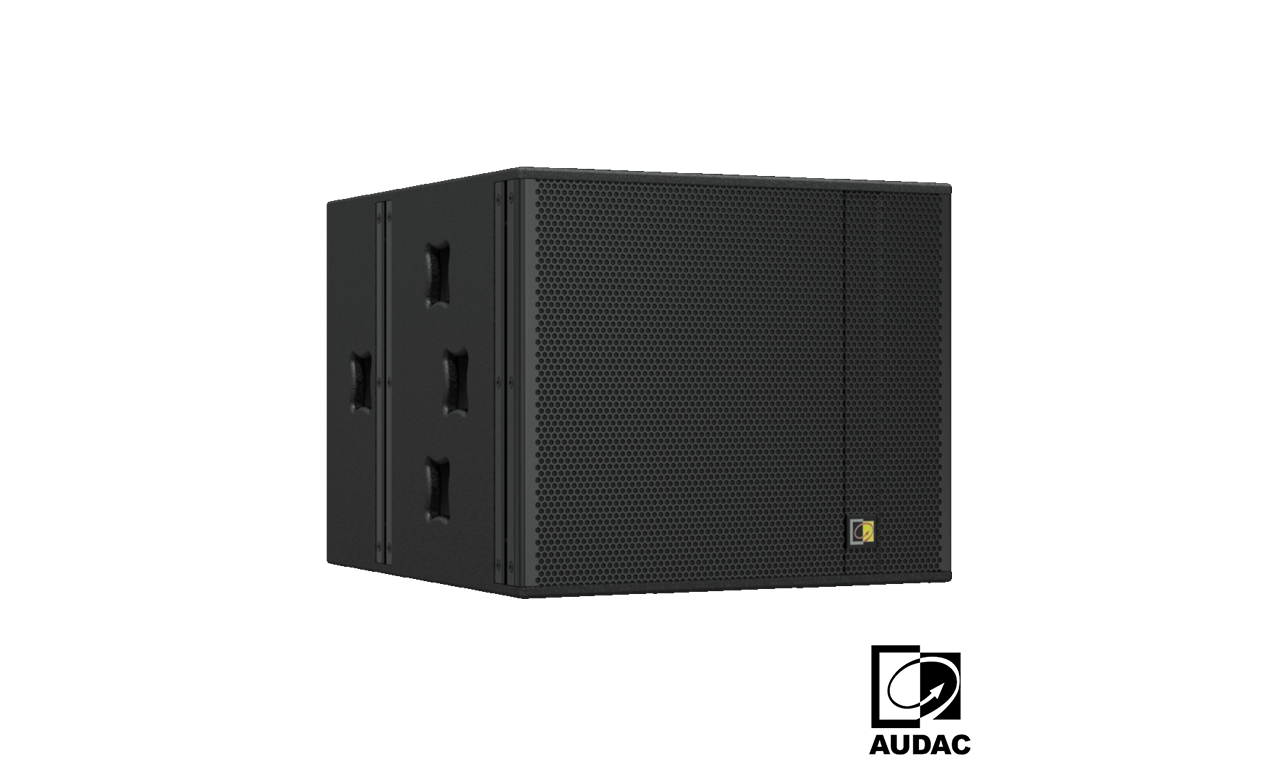

Audac FX1.18 – High Performance Bass Cabinet

1,981

The FX1.18 is a high-output, horn-loaded single 18” bass cabinet which is designed as a part of the unique and versatile FX series system.

High-output bass cabinet 18″

  • High quality 18 mm plywood
  • Integrated carry handles
  • 18” Horn loaded subwoofer cabinet
  • Integrated metal rigging frame
  • DuraCoat™ texture paintwork
  • IP55 Ingress protection
SEND EMAIL QUERY

Description

The FX series is a unique and versatile speaker system series. When you combine the FX1.18 bass cabinet with the FX3.15 3-way active speaker cabinet, this truly modular system can be scaled and adapted for every application where a powerful system with a high clarity and sound quality is required. The compact enclosures are provided with weatherproof and scratch resistant DuraCoat textured paintwork and are fitted with eight carry handles allowing easy carriage and handling of the system. The integrated metal rigging frame allows easy and secure rigging, allowing multiple cabinets to be rigged together The FX1.18 is a high-output, horn-loaded single 18” bass cabinet which is designed as a part of the unique and versatile FX series system. This horn loaded subwoofer cabinet includes an 18” woofer, achieving an RMS power handling of 800 Watt with a maximum power of 1600 Watt. The sensitivity of 102 dB and maximum sound pressure level of 131 dB in combination with the flat frequency response from 37 Hz to 130 Hz ensures a tight, up-front, low frequency reinforcement with attack and definition. The connections are performed using two 4-pin speaker connectors, allowing linkthrough when multiple identical speakers are used in the same system.



Technical Specifications

System specifications
Speaker Type  18” Horn loaded subwoofer cabinet

Peak power handling

 3200W
Program handling  1600W
RMS/AES power handling 800W
Impedance
Sensitivity (1W/1m) 102 dB
Sound Pressure (Max. W/1m) 131 dB
FrequencyResponse (± 3 dB)37 Hz- 130 Hz
 Range (-10 dB)33 Hz – 130 Hz
CrossoverTypeActive Driven System
Ingress Protection Rating IP55
Connectors 2 x 8-pin Speakon compatible connector (Allowing linkthrough)
Drivers 18″ ferrite
Product Features
Dimensions 714 x 600 x 800 mm (W x H x D)
Weight 63.300 kg
Construction 18 mm solid plywood with Dura Coat weather and scratch resistant coating
Mounting & handlingCarry handles8 Integrated carry handles
 RiggingIntegrated metal rigging frame
Recommended applications  Bars & Restaurants
  Clubs
  Education
  Sporting Facilities
  Events

Additional information

Brand

Audac

Speaker Type

Floorstanding, Indoor/outdoor
