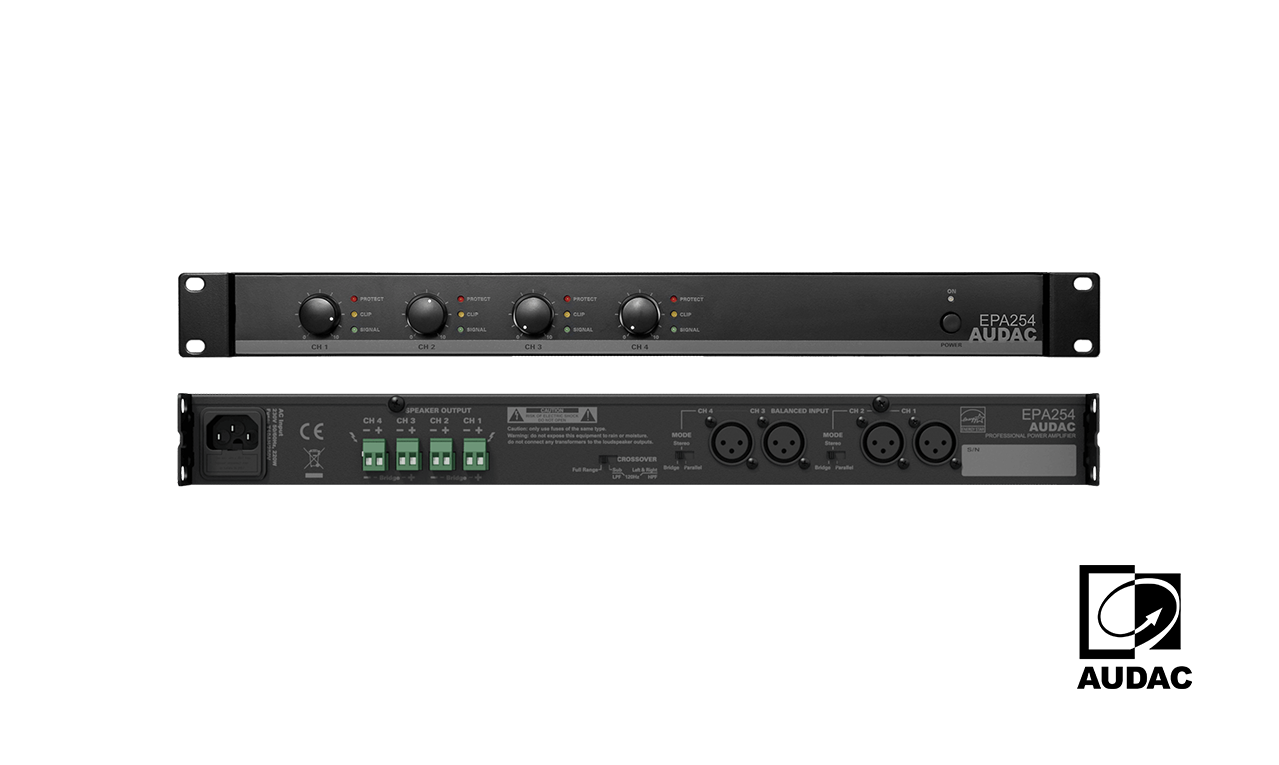

Quad Amp – 4 x 250W, with Crossover – Audac EPA254

623

In stock

Class-D Amplifier 4 X 250W at 4 Ohm, 4 x 130W at 8 Ohm, 2 x 500W at 8 Ohm bridged. Also configurable using built in crossover as 2 x 250w + 1 x 500w for highs and subwoofer

In stock

SKU: EPA254 Categories: , Tag:

Description

Audac EPA254 Quad-channel Class-D Amplifier – Doneo Malta

Features

  • 4 x 250 Watt RMS output power
  • Energy-star certified
  • Standby energy saving mode
  • Internal crossover network (switchable)
  • Lightweight Class-D amplifier
  • Convection cooled
  • Advanced protection circuitry
  • Stereo, parallel and bridged mode
  • High efficiency

Overview

The EPA series are energy efficient Class-D power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi-zone distributed speaker systems. They come available in various models with different output configuration and power ratings.

An outstanding sound quality is combined with other known advantages of Class-D amplifiers such as high energy efficiency. Automatic signal detection switches the amplifier to standby mode when no input signal is detected. This makes the amplifier comply to international energy and environmental requirement standards.

The compact size and lightweight design only requires a single 19” rackspace, while making them suitable for both fixed rack and mobile applications. The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability. The EPA254 is built as a quad channel amplifier containing four individually controllable channels capable of delivering a power of 4 x 250 Watt in stereo mode.

The outputs can be bridged two-by-two for merging their power, while an integrated (selectable) active crossover network allows to apply high-pass and low-pass filters to the channels, creating a sub / top configuration for a stereo system with bass cabinet. Specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload. The signal input connections are implemented using balanced XLR connectors. Loudspeaker outputs are connected using terminal block output connectors.

RMS Power @ 4 ? Stereo 4 x 250 W
@ 8 ? Stereo 4 x 130 W
@ 8 ? Bridge 2 x 500 W
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.1%
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Power Supply Switching mode
230 ~ 240 V AC / 50 ~ 60 Hz
Consumption 438 W
Standby 0.7 Watt (~30 sec standby time)
Inputs Sensitivity (1W/1m) 0 dB (1V RMS)
Impedance 12 k? balanced
Connector 3-pin XLR female
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° at 95% Humidity
Outputs Connector 2-pin Euro Terminal Block (Pitch – 5.08 mm)
PRODUCT FEATURES
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 4.700 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black

Additional information

Brand

Audac

Amplifier Connectivity

4 Channel
