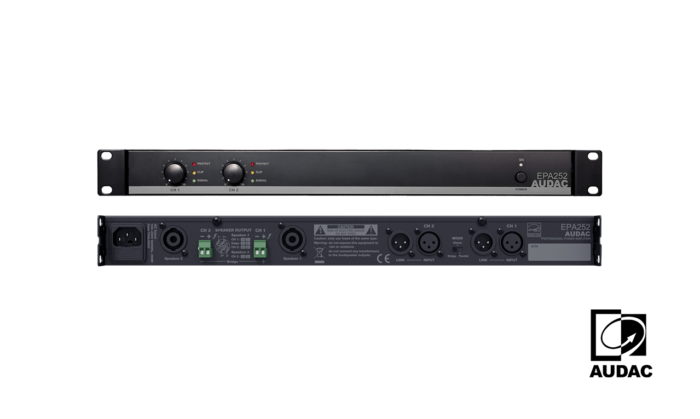

Audac EPA252

568.50

In stock

Audac Professional Dual-Channel Class-D Amplifier 2 X 250W

In stock

SKU: EPA252 Categories: , Tag:

Description

Audac EPA252 Dual-Channel Class-D Amplifier – Doneo Malta

Highlights

  • 2 x 250 Watt RMS output power
  • Energy-star certified
  • Standby energy saving mode
  • Lightweight Class-D amplifier
  • Convection cooled
  • Advanced protection circuitry
  • Stereo, parallel and bridged mode
  • High efficiency

Overview

The EPA series are energy efficient Class-D power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi-zone distributed speaker systems. They come available in various models with different output configuration and power ratings.

An outstanding sound quality is combined with other known advantages of Class-D amplifiers such as high energy efficiency. Automatic signal detection switches the amplifier to standby mode when no input signal is detected. This makes the amplifier comply to international energy and environmental requirement standards.

The compact size and lightweight design only requires a single 19” rackspace, while making them suitable for both fixed rack and mobile applications. The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability. The EPA252 is built as a dual channel (Stereo) amplifier containing two individually controllable channels capable of delivering a power of 2 x 250 Watt in stereo mode. In bridge mode, an output power of 500 watt can be delivered to a single load. It features various specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload.

The signal input connections are implemented using balanced XLR connectors with link output connectors, allowing linkthrough to other amplifiers. Loudspeaker outputs are connected using both Speakon compatible and terminal block output connectors.

RMS Power @ 4 ? Stereo 2 x 250 W
@ 8 ? Stereo 2 x 130 W
@ 8 ? Bridge 500 W
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.1%
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Power Supply Switching mode
100 ~ 240 V AC / 50 ~ 60 Hz
Consumption 224 W
Standby 0.8 Watt (~30 sec standby time)
Inputs Sensitivity (1W/1m) 0 dB (1V RMS)
Impedance 12 k? balanced
Connector XLR female with Male Linkthrough
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° at 95% Humidity
Outputs Connector Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)
PRODUCT FEATURES
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 4.400 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black

Additional information

Brand

Audac

Amplifier Connectivity

100V, 2 Channel
