Audac EPA152

400.90

Stock arriving in approximately 12 days

Audac professional Dual-channel Class-D amplifier 2 x 150W

Stock arriving in approximately 12 days

SKU: EPA152 Categories: , Tag:

Description

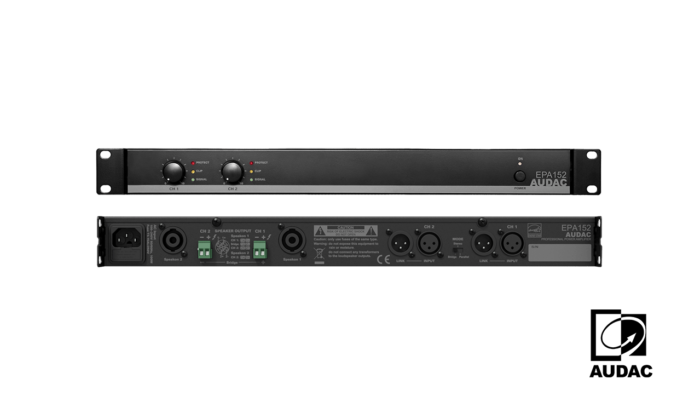

Audac EPA152 Dual-channel Class-D amplifier 2 x 150W – Doneo Malta

Features

  • 2 x 150 Watt RMS output power
  • Energy-star certified
  • Standby energy saving mode
  • Lightweight Class-D amplifier
  • Convection cooled
  • Advanced protection circuitry
  • Stereo, parallel and bridged mode
  • High efficiency

Overview

This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode).

Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.

RMS Power @ 4 ? Stereo 2 x 150 W
@ 8 ? Stereo 2 x 80 W
@ 8 ? Bridge 300 W
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Power Supply Switching mode
100 ~ 240 V AC / 50 ~ 60 Hz
Consumption 145 W
Standby 0.8 Watt (~30 sec standby time)
Inputs Sensitivity (1W/1m) 0 dB (1V RMS)
Impedance 12 k? balanced
Connector XLR female with Male Linkthrough
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° at 95% Humidity
Outputs Connector Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 4.100 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black

Additional information

Brand

Audac

Amplifier Connectivity

100V, 2 Channel
