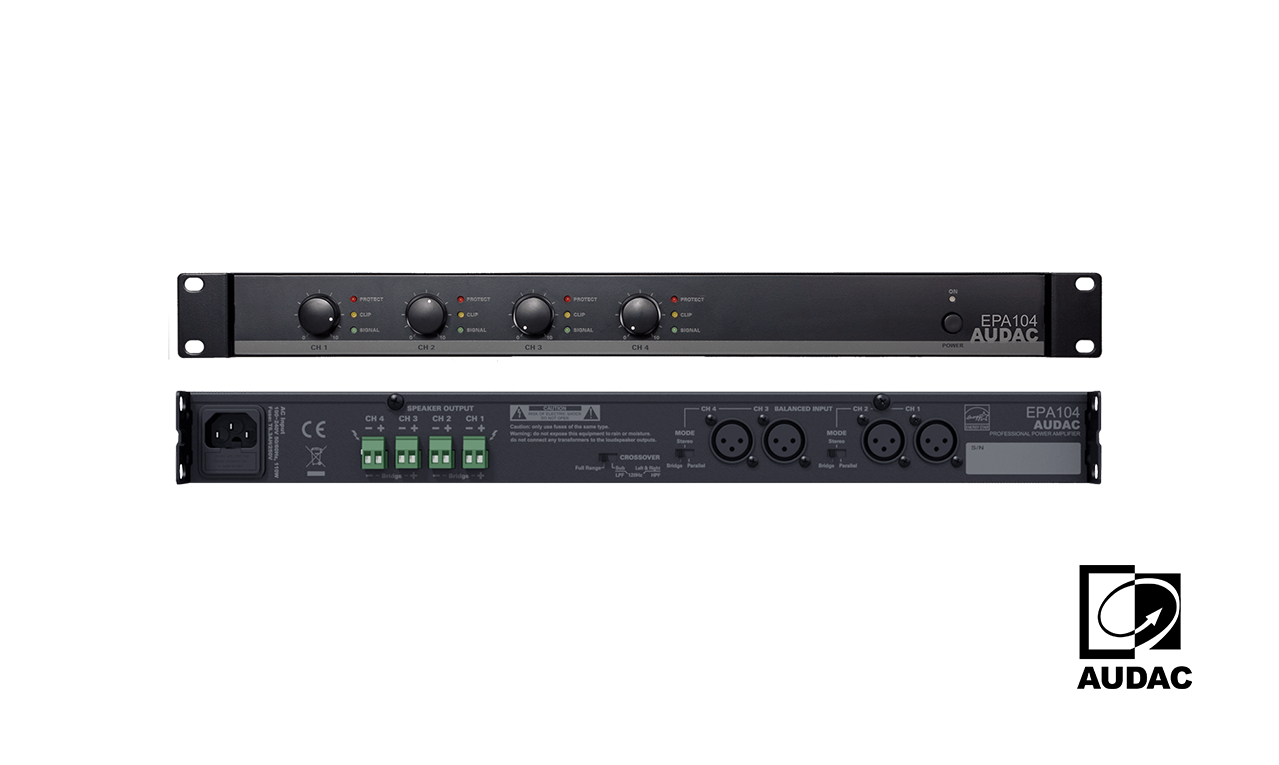

Quad Amp – 4 x 100W, with Crossover – Audac EPA104

491

Stock arriving in approximately 12 days

Audac professional Quad-channel Class-D Amplifier 4 X 100W at 4 Ohm, 4 x 50W at 8 Ohm, 2 x 200W at 8 Ohm bridged. Also configurable using built in crossover as 2 x 100w + 1 x 200w for highs and subwoofer

Stock arriving in approximately 12 days

SKU: EPA104 Categories: , Tag:

Description

Audac EPA104 4 x 100 Watt RMS output power – Doneo Malta

Features

  • Energy-star certified
  • Standby energy saving mode
  • Internal crossover network (switchable)
  • Lightweight Class-D amplifier
  • Convection cooled
  • Advanced protection circuitry
  • Stereo, parallel and bridged mode
  • High efficiency

Overview

The EPA series are energy efficient Class-D power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi-zone distributed speaker systems. They come available in various models with different output configuration and power ratings. An outstanding sound quality is combined with other known advantages of Class-D amplifiers such as high energy efficiency.

Automatic signal detection switches the amplifier to standby mode when no input signal is detected. This makes the amplifier comply to international energy and environmental requirement standards.

The compact size and lightweight design only requires a single 19” rackspace, while making them suitable for both fixed rack and mobile applications. The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability.

The EPA104 is built as a quad channel amplifier containing four individually controllable channels capable of delivering a power of 4 x 100 Watt in stereo mode. The outputs can be bridged two-by-two for merging their power, while an integrated (selectable) active crossover network allows to apply high-pass and low-pass filters to the channels, creating a sub / top configuration for a stereo system with bass cabinet. Specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload.

The signal input connections are implemented using balanced XLR connectors. Loudspeaker outputs are connected using terminal block output connectors.

RMS Power @ 4 ? Stereo 4 x 100 W
@ 8 ? Stereo 4 x 50 W
@ 8 ? Bridge 2 x 200 W
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Power Supply Switching mode
100 ~ 240 V AC / 50 ~ 60 Hz
Consumption 188 W
Standby 0.8 Watt (~30 sec standby time)
Inputs Sensitivity (1W/1m) 0 dB (1V RMS)
Impedance 12 k? balanced
Connector 3-pin XLR female
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° at 95% Humidity
Outputs Connector 2-pin Euro Terminal Block (Pitch – 5.08 mm)
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 4.500 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black

Additional information

Brand

Audac

Amplifier Connectivity

100V, 4 Channel
