Audac Professional Sixteen channel Class D amplifier 16 x 60w at 4 Ohms or 16 x 30w at 8 Ohms or 8 x 120w at 8 Ohms bridged.
16 Channel Amplifier – Audac DPA616
Audac DPA616 Sixteen channel Class-D amplifier – Doneo Malta
– Sixteen channel power amplifier
– Class-D Technology
– 16 x 60 Watt in Stereo mode
– 8 x 120 Watt in Bridge mode
– Stereo / Bidge & Parallel switch
– Euro Terminal block connectors
– Advanced Protection circuit
– 19” Mounting device
– Public buildings

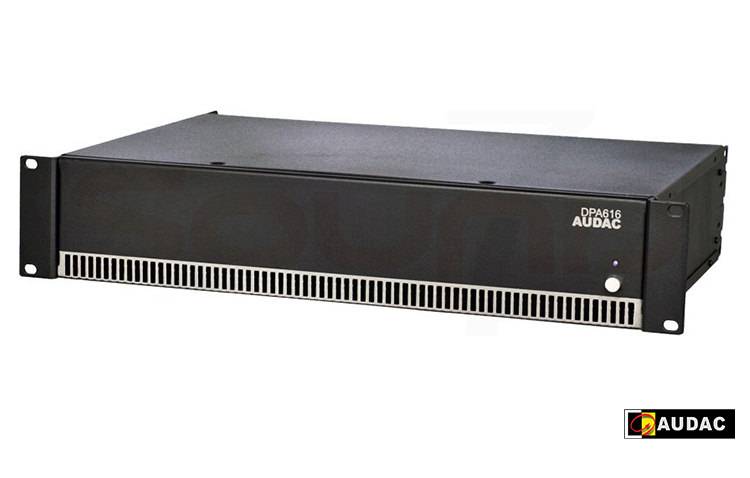

The DPA616 is a professional sixteen channel pow- er amplifier, which is capable of delivering a power of 60 Watt to 4 Ohm loads connected to the 16 out- put channels. When used in bridge mode, it can de- liver a power of 120 Watt to 8 Ohm loads connected to the 8 bridged outputs. This way, the DPA616 is the perfect solution for installed Multi-Zone audio distribution systems with 8 zones.
It is designed as a no-nonsense amplifier with only the necessary controls and connections, which cre- ates great simplicity in use and installation.
The input connections are all performed with 3-pin Euro-Terminal block connectors, allowing the con- nection of balanced input signals. Every channel is fitted with a separate gain control potentiometer and for every two input connectors is a Stereo / Bridge & Parallel switch provided whereby two channels can be bridged or linked in parallel, avoiding a cable clutter when multiple channels should be fed with the same input signal. The output connections are performed with 4-pin Euro-Terminal block connec- tors allowing connections for separate or bridged output channels.
A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is housed in a double rack space, steel 19” rack mount housing.
|RMS Power @ 4 Ohm Stereo||16 x 60 Watt|
|RMS Power @ 8 Ohm Stereo||16 x 30 Watt|
|RMS Power @ 8 Ohm Bridge||8 x 120 Watt|
|Frequency response||20 Hz – 20 kHz|
|Signal to noise ratio||> 100 dB|
|T.H.D at 1 kHz||Less than 0.1% (1/2 rated power)|
|Power supply||Switching mode|
|Power supply range||100-240 V AC / 50-60 Hz|
|Input Sensitivity||-20 dB ~ +20 dB|
|Protection||DC short circuit|
|Operating temperature||0° ~ 40° at 95% Humidity|
|Dimensions (Width x Height x Depth)||482 x 88 x 322 mm|
|Weight net||xxx Kg|
|Unit height||2 HE|
|3-Pin Euro Terminal Block|
|Output 4-Pin Euro Terminal Block|
Multiroom, 100V, 16 Channel
