Audac CSF506

60.30

Call for availability

Ceiling speaker with Firedome fire protection – 100 Volt – 6 Watt transformer conforms to EN60849

Call for availability

Description

Audac CSF506 ceiling speaker with firedome – Doneo Malta

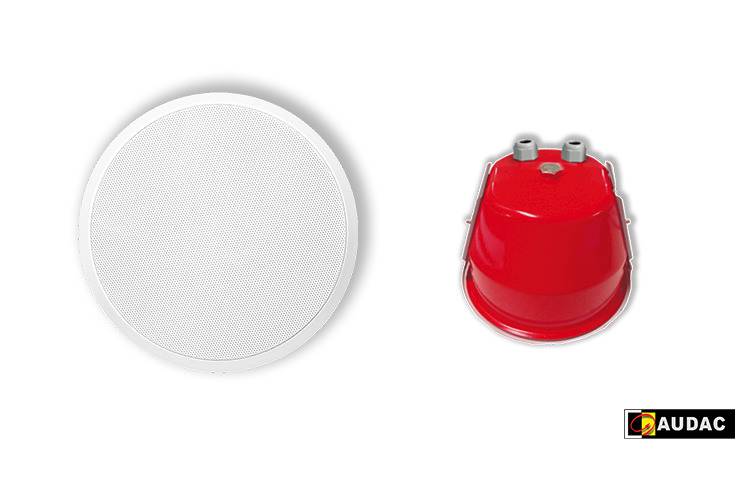

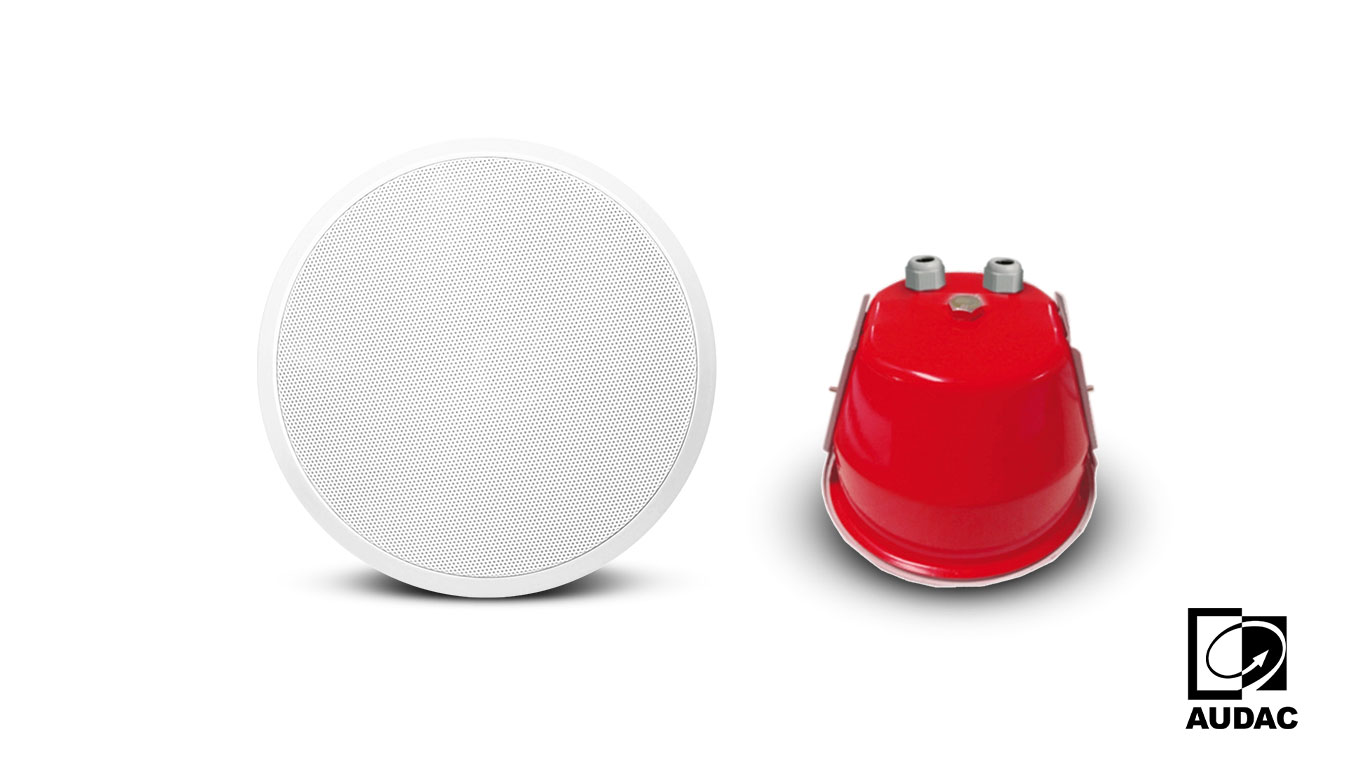

The CSF506 is a fire-protected ceiling speaker with a 5” cone, capable of producing a power of 6W.

It ensures a good reproduction of speech and alarm signals for evacuation purposes. It is fitted with a 100V line transformer with power taps for 6W and 3W to be used in large 100V PA systems.

The speaker is equipped with a special steel fire protection dome fitted around the speaker and a steel front grill with flame retardant materials.

The connections of the loudspeaker are performed using a ceramic connection block and the thermal fuse ensures that in case of fire the loudspeaker will be disconnected from the circuit.

Hereby, the other loudspeakers on the same circuit will keep on operating.

Features

  • Steel fire protection dome
  • Two power taps
  • Steel front grill
  • Flame retardant materials
  • Ceramic connection block
  • Thermal fuse

Applications

  • All applications where built-in speakers are needed for evacuation purposes

Max. power 10 W
RMS power 6 W
Line voltage 100 V
Power taps
6 W / 1666 Ohm
3 W / 3333 Ohm
Impedance 8 Ohm
Frequency response -3dB 90 Hz – 18 kHz
Sound pressure W/1m 90 ± 3 dB
PRODUCT FEATURES
Dimensions (Diameter x Depth) Ø 180 x 127 mm
Mounting hole Ø 160 mm
Weight net 1.3 Kg
Drivers 5”
Construction Steel
SHIPPING & ORDERING
Packaging Packaging Carton box
*AUDAC reserves the right to change specifications without notice: this is part of our policy to continually improve our products

Additional information

Brand

Audac

Speaker Type

Ceiling, 100 Volt
