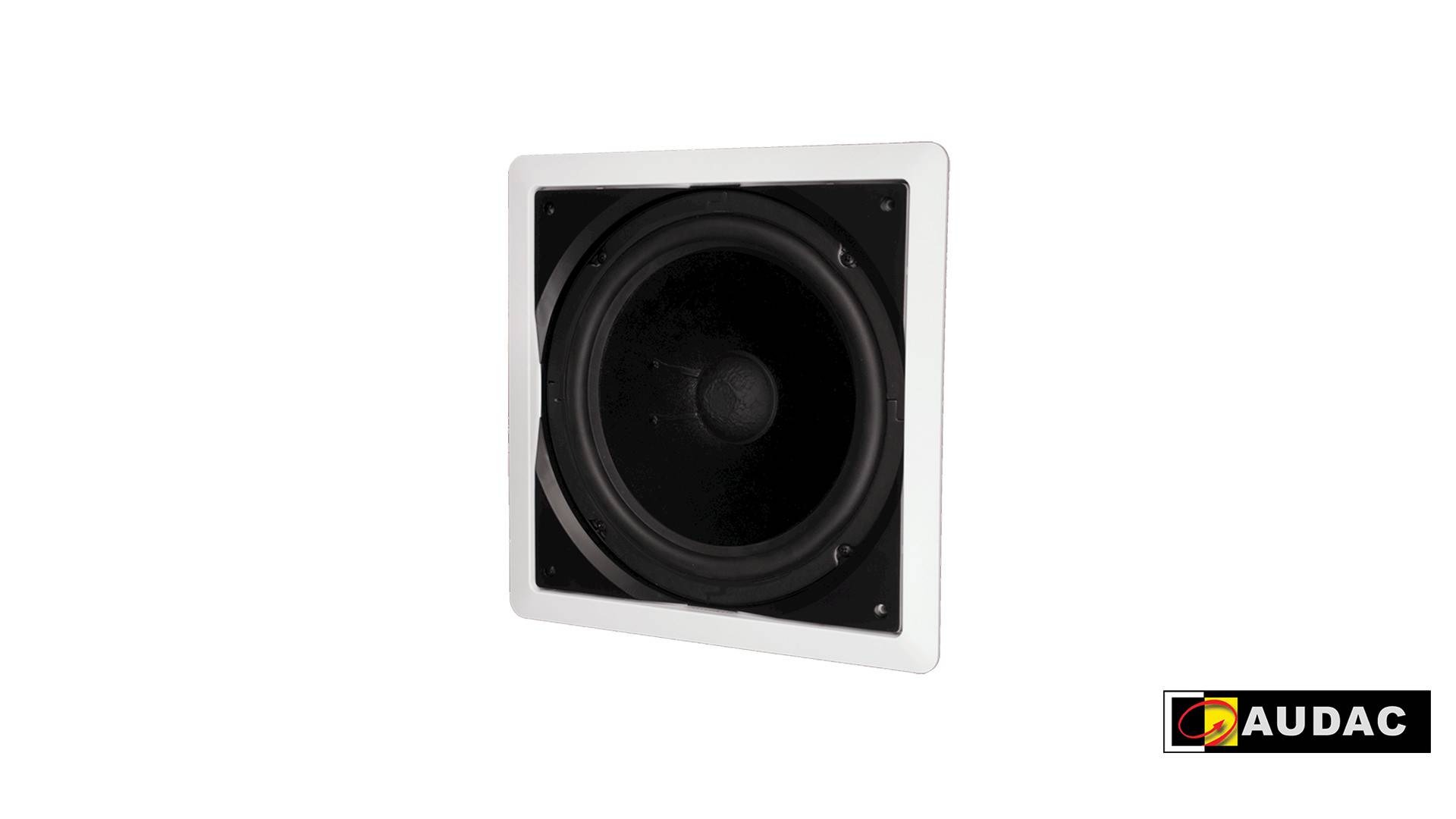

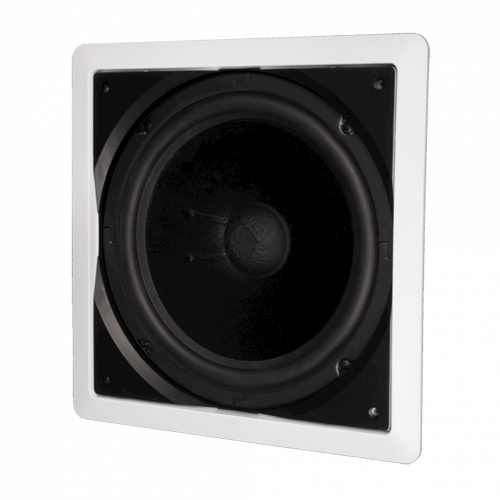

Audac CS1000SW – Ceiling / in-wall subwoofer


In stock

10” in-wall/ceiling sub-woofer with a super slim design for added depth in your music with an unobtrusive look.

In stock


The CS1000S is a 10” in-wall/ceiling subwoofer speaker with a super slim design. The built-in depth of merely 104 mm makes the CS1000S fit into almost every wall or ceiling and it can be painted in any desired colour to blend in with the environment the speaker is used in. This subwoofer offers a superb reproduction of the low frequencies and is ideal to be used in combination with other ceiling or in-wall loudspeakers like the WS and CS series. It is made of strong ABS and equipped with the necessary installation accessories and connection clamps for easy mounting. The cone of the speaker is treated to be completely moisture proof, so it can also be used in damp rooms or outside applications. The CS1000S features a 10” low frequency range woofer with an output power of 100 Watt RMS and a maximum power of 200 Watt. The speakers impedance is 8 Ohm and it can produce a sound pressure level up to 108 dB and has a stunning frequency response ranging from 28 Hz to 300 Hz, which is really low sound ensuring a brilliant reproduction of the low frequencies.

Max. Power200 W
RMS Power100 W
Impedance8 Ω
Sound Pressure (Max. W/1m)108 dB
ConnectorsCable clamps
FrequencyResponse (± 3 dB)50 Hz – 250 Hz
 Range (-10 dB)28 Hz – 300 Hz
CrossoverFrequency250 Hz
 TypePassive built-in
Dimensions304 x 304 x 104 mm (W x H x D)
Cut-out measurement270 mm (Ø)
Built-in depth70 mm
Weight3.600 kg
Front finishWhite aluminium grill
MountingClaw clamps
ColoursWhite (RAL9010) (CS1000S/W)

Additional information



Speaker Type

Ceiling, In-Wall
