Audac CPA12

502.90

Call for availability

Audac professional CPA12 is the lightest single channel amplifier of the new line of pro 100V amplifiers, balanced XLR, 100V, 70V or 4Ohms application.

Call for availability

SEND EMAIL QUERY
SKU: CPA12 Category: Tag:

Description

Audac CPA12 pro 100v amplifier – Doneo Malta

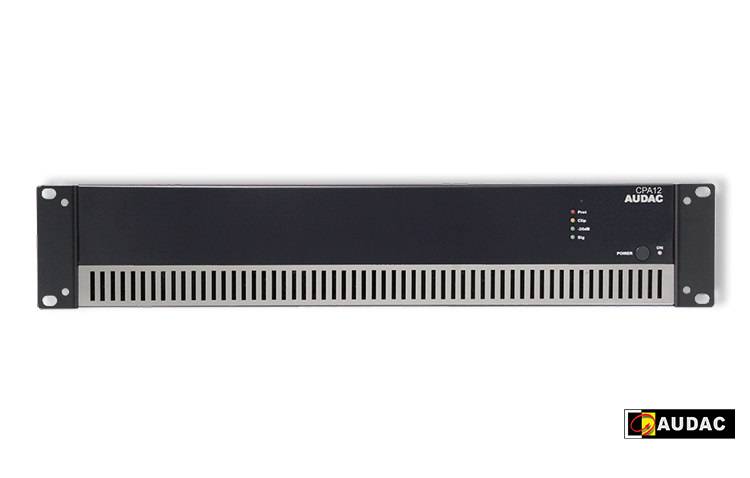

The CPA12 is a professional single channel 100V power amplifier with a power of 120 Watt, especially designed for most common 100V PA systems and perfect to be used in combination with the CPR12 pre-amplifier.

It is designed as a no-nonsense amplifier with only the necessary controls and connections. This creates great simplicity in use and installation. There are several power output taps available for use in 100V, 70V and even 4 Ohm Low impedance installations and they are fitted with an advanced multipurpose protection circuit. The protection circuit detects DC malfunction, short circuit, overheating, overload and limits the signal when necessary. Another present feature is the 24 V DC connection for powering the amplifier with emergency power when the main power is shut down. At the back of the amplifier, there are trim potentiometers to set the input level, a high pass filter switch and a ground lift switch provided.

The input connection is made with balanced XLR connectors and there is a signal output for linking with other amplifiers. The steel 19″ housing has a height of 2 HE.

RMS Power 120 W
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 1%
Technology Class A/B
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Dual speed controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 70 Hz – 18 kHz
Power Supply Conventional (Transformer)
Source 230 ~ 240 V AC / 50 ~ 60 Hz (110~115 V AC / 50~60 Hz after connection change)
Inputs Sensitivity (1W/1m) -12 dB ~ 0 dB
Impedance 10 kΩ balanced
Connector XLR female with Male Linkthrough
Outputs Voltage / Impedance 100 V / 83 Ω
70 V / 42 Ω
21.9 V / 4 Ω
Connector 4-pin Euro Terminal block (Pitch – 5.08 mm with locking)
Product features
Dimensions 482 x 88 x 330 mm (W x H x D)
Weight 10.500 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black

Additional information

Brand

Audac
