Audac COM24 MK2

721.60

In stock

Audac professional 5 x 100V mono output zones, Mic level inputs with priority settings and phantom power, tone control, Up to 6 Mics, Possibility to connect a telephone pager

In stock

SKU: COM24MK2 Categories: , Tag:

Description

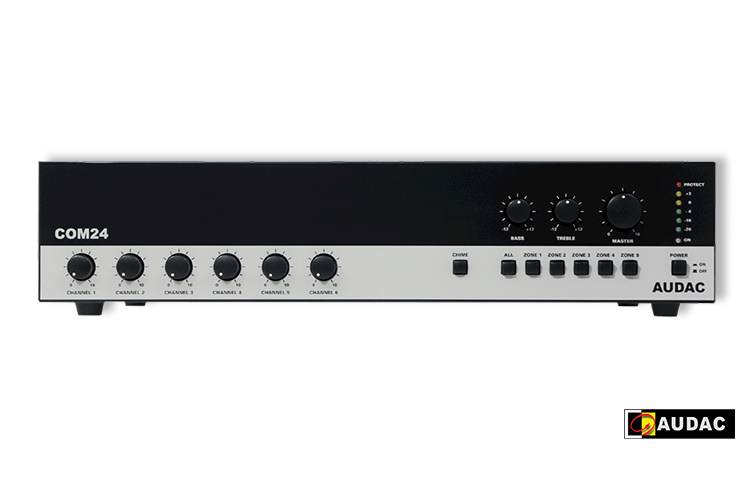

Audac COM24 MKII Public Address Amplifier  – Doneo Malta

The COM series public address mixing amplifiers are providing an ideal solution for small to medium size commercial sound systems.

Different configurations in terms of output power and connectivity provide an enormous flexibility for numerous applications. The COM24 is capable of delivering an output power of 240 Watt to 100 Volt constant voltage systems or 4 Ohm low impedance loads. Six input channels with individual level control allow connectivity and mixing to a wide variation of music sources. Four balanced microphone inputs (XLR)containing phantom power (15 V) and two priority allow connection for almost any (dynamic or condenser)microphone. Two inputs selectable between stereo unbalanced line (RCA) and microphone (6.3mm Jack) allow connection for any source such as CD-player, music computer or portable device, or enable to expand the total microphone count to 6. The remote microphone and tele-paging inputs allow expansion of the system with a paging station(with chime tones) or couple the system with your business telecom system (or any other priority line source). Using the priority mute contact, coupling and muting can be done through an external fire alarm system. The output level can be adjusted using a master volume control accompanied with 2-band tone regulation.

The level is indicated with a 5-segment VU-barwhile output selection is made possible using an integrated 5-zone speaker switcher. Both table-top installation or 19” (2HE) equipment rack mounting is made possible using the included adapters.

RMS Power 240 W
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.5%
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Power Supply Transformer
Source 230 ~ 240 V AC / 50 ~ 60 Hz
Inputs Other Remote mic (Priority mic + chime)
Tele-paging (Priority line)
Priority mute contact
Outputs Connector 2-pin Euro Terminal Block (Pitch – 5.08 mm)
10-pin Euro Terminal Block (Pitch – 5.08 mm)
Voltage / Impedance 100 V / 4 Ω
Inputs Balanced Microphone 1 – 4 Type 4 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 2 x XLR/Jack Combo & 2 x XLR
Other 4 x 15 V DC Phantom & 2 x Priority
Balanced Microphone 5 Type 1 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 6.3 mm Jack
Unbalanced Stereo Type 1 x Stereo Unbalanced Line (+14 dB / -30 dB)
Connector RCA
Product features
Dimensions 420 x 88 x 320 mm (W x H x D)
Weight 11 kg
Mounting 19” / 2 HE or tabletop
Construction Steel
Colours Black

Additional information

Brand

Audac

Amplifier Connectivity

Aux-In, Multiroom, 100V, Microphone In
