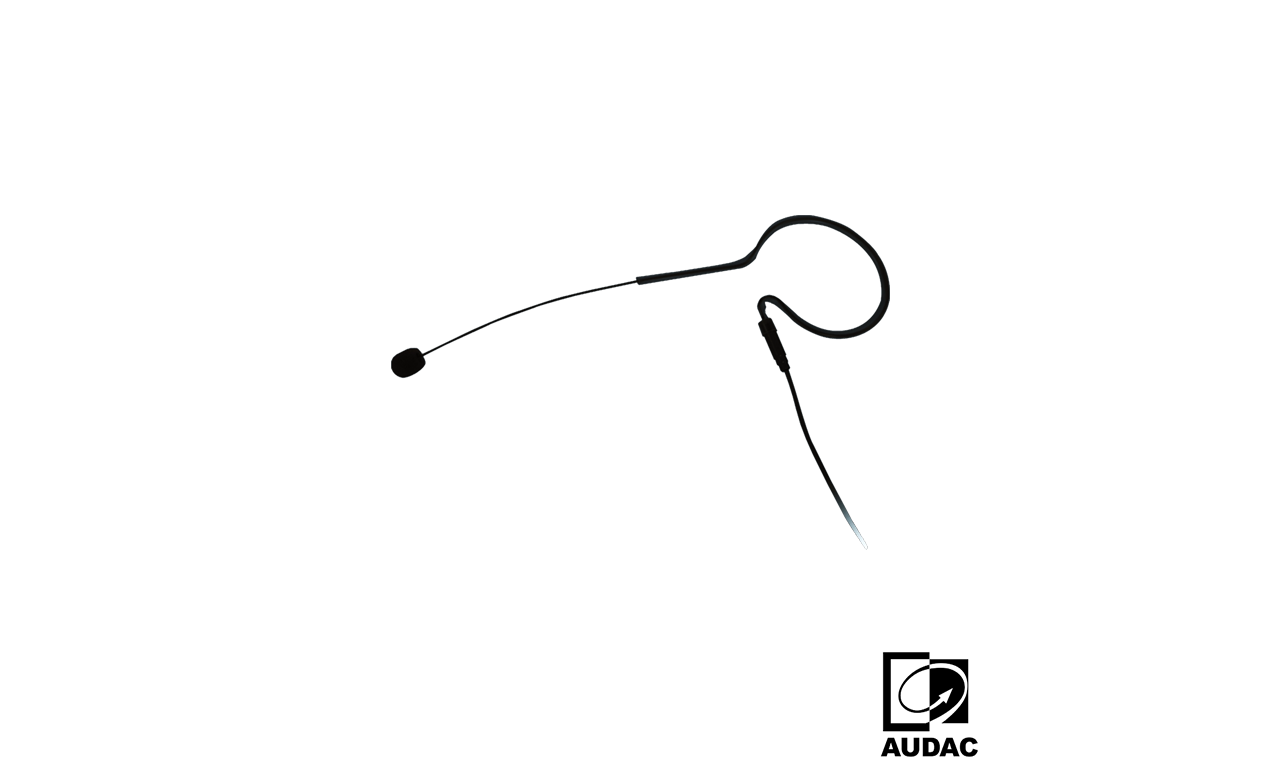

Audac CMX706 – Clip-on ear Microphone

116

The CMX706 is a headset condenser microphone with an omnidirectional pickup pattern, designed for a wide variation of vocal and speech applications.

Clip-on ear microphone

  • Back electret omnidirectional condenser microphone
  • Multi-system compatibility (4 connectors types included)
  • Comfortable lightweight design
  • Single ear design with adjustable boom
  • Quick split connector for cable and connector exchange
SEND EMAIL QUERY

Description

The CMX706 is a headset condenser microphone with an omnidirectional pickup pattern, designed for a wide variation of vocal and speech applications. The back-electret condenser capsule with flat frequency response guarantees a pristine audio quality true to the speakers voice and intonation. The high SPL capabilities guarantee a true reproduction without distortion even while exposed to hard and vigorous sounds. The construction is lightweight and ergonomically designed, guaranteeing a comfortable fit with minimum visual impact. A drop stopper on the microphone boom avoids humidity to reach the microphone cell while the microphone boom itself can slightly be adjusted to allow an optimal placement on the cheek. A connector splits the cable from the microphone, allowing quick exchange which is valuable for both service use or when used in combination with different types of transmitters. The microphone comes with 4 types of connectors included, making it suitable for use with different major systems manufacturers. Additional connector types are optionally available. Available in black and beige and comes with windscreen and cable clip for anchoring to clothing included.

Technical Specifications

Available Models
CMX706/S Beige
CMX706/B Black

System Specifications
Microphone TypeBlack electret condenser
FrequencyResponse (± 3 dB)20 Hz – 20 kHz
Polar pattern Omnidirectional
Sensitivity (1W/1m) 42 dB
Impedance± 30%2 kΩ
Sound Pressure (Max. W/1m) 135 dB
PowerSupply1.5 ~ 9 V DC

Product Features
Dimensions 150 x 50 x 20 mm (W x H x D)
Weight 0.003 kg
Construction Metal
Connection cable length 1.2 m
Colours Beige (CMX706/S)
  Black (CMX706/B)
Accessories IncludedWindscreen (MWS700)
  Akg 3-pin mini XLR (AU78726x001)
  Shure 4-pin mini XLR (AU78726x002)
  Sennheiser 3.5mm jack (AU78726x003)
  dB Tech 3.5mm jack (AU78726x004)
 OptionalAudio technica UniPak® (AU78726x005)

Recommended Applications Education
  Corporate
  Sporting Facilities

Additional information

Brand

Audac

Microphone Type

,

Microphone Features

Condenser Microphone, Wired
