Audac CMP30

360.30

In stock

Audac professional Digital Muli-Media Player – CD, MP3 & Tuner all housed in a single 19″ rack space, CD USB & SD/MMC card slots.

In stock

Description

Audac CMP30 Digital Muli-Media Player – Doneo Malta

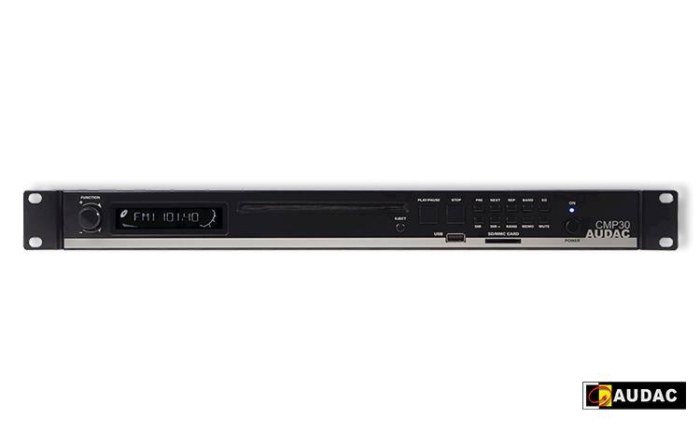

The CMP30 is an All-In-One digital audio source device which accommodates three different kinds of audio sources into one single device.

It combines a CD-Player, MP3 player and AM/FM RDS tuner into one single rack space 19” housing, offering a flexible, multi-functional and compact solution for many applications where multiple source devices are needed. Some typical application examples can range from simple standard audio systems to the most complex and advanced Multi-Zone audio distribution systems. Besides the necessary control and function buttons, the CMP30’s front panel also contains a clear LCD screen displaying the operation mode with the ID3 and RDS information of the currently playing track or radio station. Its CD slot, USB slot and SD/MMC memory card slot make it possible to play regular audio CDs, but also MP3 audio CDs and MP3 files stored on USB memory sticks or SD/MMC memory cards. On the rear side are three audio outputs provided. Two of them are fixed audio outputs with a constant line level output carrying the signal from the CD/MP3 player and the tuner. This way the CD/MP3 player and tuner can operate simultaneously, making the device perfect for Multi-Zone audio distribution systems where multiple audio sources are required. The third audio output is a Variable audio output with volume control.

The signal present on this audio output can be selected between CD/MP3 and Tuner. An RS232 control port makes the operation possible from external control devices such as home automation systems.

Control Front panel
RS-232
Operating temperature 0° ~ 40° @ 95% Humidity
Inputs Type 1 x Slot in CD loader (12 cm CD)
1 x USB memory drive input
1 x SD/MMC memory card input
Outputs Type 1 x Tuner audio outputs (fixed level)
1 x CD/MP3 audio outputs (fixed level)
1 x Selectable audio outputs (variable level)
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Tuning range FM 87.5 ~ 108 MHz
MW 522 ~ 1620 kHz
Compatible filesystems Playback FAT16
FAT32
Supported filetypes Playback WAV
MP3
WMA
Power Source 110 ~ 240 V AC / 50 ~ 60 Hz
Consumption 10 W
Supply Switching mode
Outputs Level Fixed Outputs -10 dB
Variable Outputs – ∞ ~ 0 dB
Product features
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 3.820 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black

Additional information

Brand

Audac
