6.5” driver, 1” Mylar tweeter, phase plug, 30 Watt (RMS) and 60 watt (MAX), 100V line with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.

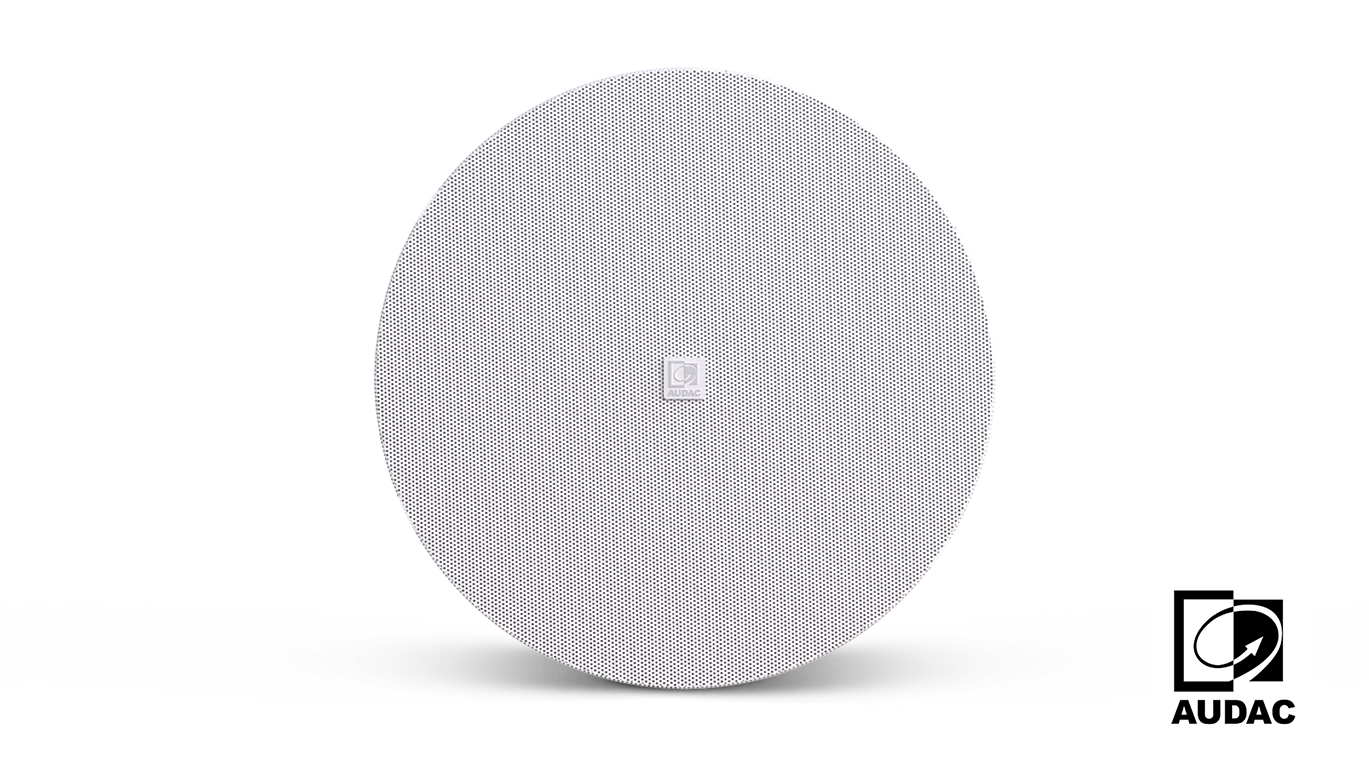

Audac CIRA724 – White
€85.79
In stock
In stock
Description
Clear Sound, hidden in plain sight
Coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. Designed to offer the best value for money ratio.
QuickFit™ 2-way 6.5" ceiling speaker with TwistFix™ grill
- Exceptional intelligibility and musical performance
- TwistFix™ borderless grill design
- Excellent off axis performance
- Flat frequency response
- Consistent sound profile throughout complete family
- Lifetime stability and toolfree installation with unique Quickfit™ innovation
Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.
Stunning musical performance
Exceptional intelligibility
The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response.
Borderless grill design
TwistFix™ technology
The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend into its environment.
Mounting made easy
QuickFit™ innovation
The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
Up to 155° dispersion
Excellent off-axis performance
CIRA series features a high-quality driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance.
Consistent sound profile
A complete family
This version too big or too small? No worries, the CIRA series consists of a complete family of different models without the loss of sound quality that will fit perfectly into your project.
Technical Specifications
| Max. Power | 60 W |
| RMS Power | 30 W |
| Sensitivity (1W/1m) | 88dB |
| Speaker type | 2-way coaxial |
| Impedance | – 8 Ω (CIRA724) – 16 Ω (CIRA730D) |
| Connectors | Multi-tap Fast-con™ connections |
| Sound Pressure (Max. W/1m) | @ 100 V 103 dB |
| Frequency Response (± 3 dB) | 55 Hz – 20 kHz |
| Range | (-10 dB) 45 Hz – 20 kHz |
| Dispersion Conical | 150° |
| Drivers | – HF 1” – LF 6.5¼” |
| Line Transformer Tappings | – 1 24 W – 417 Ω (CIRA724) – 2 12 W – 833 Ω (CIRA724) – 3 6 W – 1667 Ω (CIRA724) |
Product features
| Cut-out measurement | 200 mm (Ø) |
| Weight | – 1.45 kg (CIRA724) – 1.35 kg (CIRA730D) |
| Construction | ABS |
| Front finish | TwistFix™Borderless finely perforated steel grill |
| Built-in depth | 78 mm (CIRA724) 75 mm (CIRA730D) |
| Mounting | Quick-Fit™ mounting system |
| Fixture point for safety cable | |
| Colours | White (RAL9003) (CIRA724/W& CIRA730D/W) |
| Dimensions | 224 mm (Ø) |
Additional information
| Brand | Audac |
|---|---|
| Product Colours | White |
| Speaker Type | Ceiling, 100 Volt |
