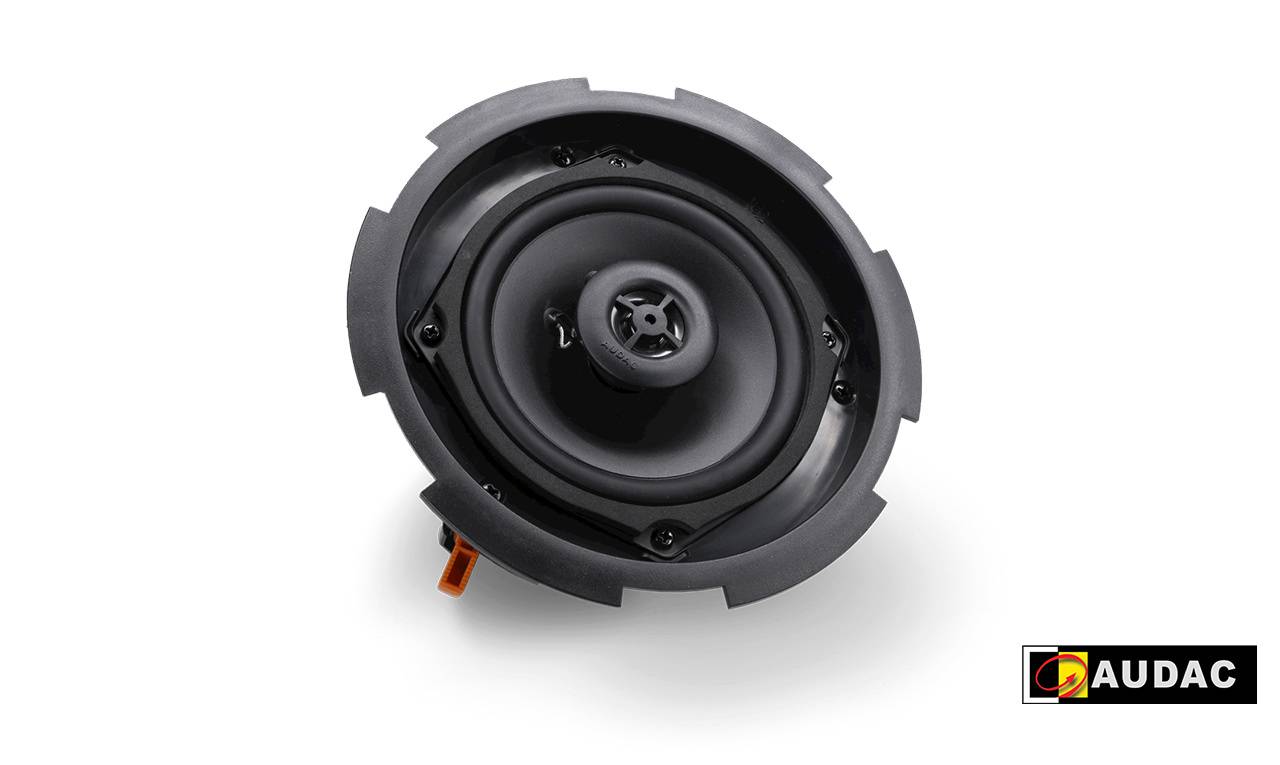

Audac CIRA7

60.5072.70

6.5” driver, 1” Mylar tweeter, phase plug, 30 Watt (RMS) and 60 watt (MAX), 100V line with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.

SEND EMAIL QUERY

Description

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.

VARIANTS

  • New CIRA724/W – White version, 8Ω & 100V
  • New CIRA730D/W – White version, 16 Ω

SYSTEM SPECIFICATIONS

Max. Power 60 W
RMS Power 30 W
Sensitivity (1W/1m) 88 dB
Speaker type 2-way coaxial
Impedance 8 Ω (CIRA724)
16 Ω (CIRA730D)
Connectors Multi-tap Fast-con™ connections
Sound Pressure (Max. W/1m) @ 100 V 103 dB
Frequency Response (± 3 dB) 55 Hz – 20 kHz
Range (-10 dB) 45 Hz – 20 kHz
Dispersion Conical 150°
Drivers HF 1”
LF 6.5¼”
Line Transformer Tappings 1 24 W – 417 Ω (CIRA724)
2 12 W – 833 Ω (CIRA724)
3 6 W – 1667 Ω (CIRA724)

PRODUCT FEATURES

Cut-out measurement 200 mm (Ø)
Weight 1.45 kg (CIRA724)
1.35 kg (CIRA730D)
Construction ABS

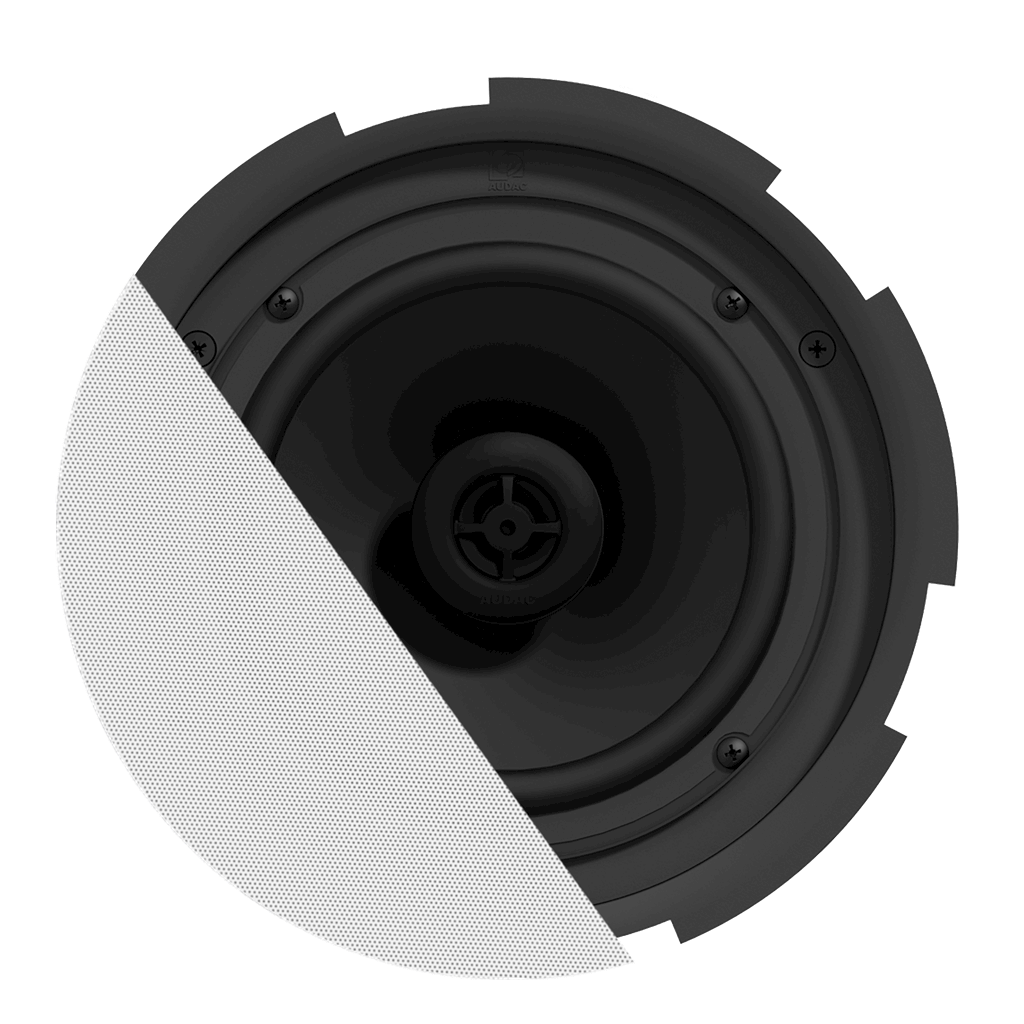

Front finish TwistFix™Borderless finely perforated steel grill
Built-in depth 78 mm (CIRA724)
75 mm (CIRA730D)
Mounting Quick-Fit™ mounting system
Fixture point for safety cable
Colours White (RAL9003) (CIRA724/W& CIRA730D/W)
Dimensions 224 mm (Ø)

Additional information

Brand

Audac

Speaker Type

Ceiling, 100 Volt

Product Variable

CIRA724B, CIRA724W, CIRA730DB, CIRA730DW
