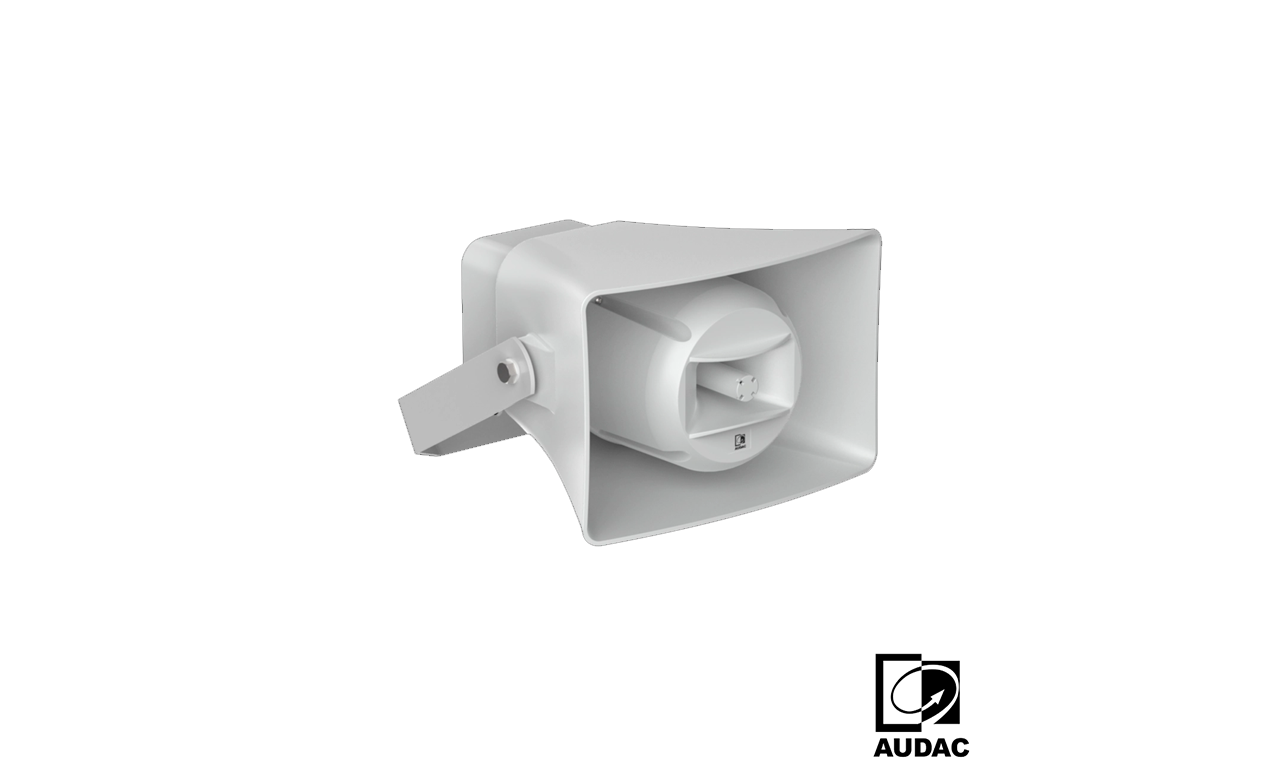

Audac CHA530

Original price was: €353.Current price is: €339.

The CHA530 is a 2-way horn loaded loudspeaker which is designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor applications.

2-Way horn loudspeaker 5″

  • 1″ HF Horn tweeter
  • 5″ Low frequency loudspeaker
  • IP66 Ingress protection
  • 30 Watt RMS power
  • Multi-tapping 70V / 100V line transformer
SEND EMAIL QUERY

Description

The CHA530 is a 2-way horn loaded loudspeaker which is designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor applications.

The construction is composed of a 1″ high frequency compression driver and a 5″ mid/low frequency driver. The selection of high-quality components and acoustic engineering craftmanship makes the CHA530 significantly better performing than other traditional horn speakers. A smooth frequency response and high efficiency ensures an extraordinary clarity of speech and extended frequency response for music.

It features an RMS power handling of 30 Watt and a max power handling of 60 Watt. The sensitivity measures 98 dB while a maximum continuous SPL of 113 dB can be achieved. The frequency response (±3 dB) starts from 110 Hz up to 16 kHz.

A multi-tapping line transformer allows the speaker to be used in 100 Volt and 70 Volt public address systems. It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector. Various power tappings for 30 Watt, 15 Watt, 7.5 Watt and 3.75 Watt are available.

The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement. This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.

Technical Specifications

System specifications

Speaker type

Peak power handling

Program power handling

RMS/AES power handling

2-way horn speaker

120W

60W

30 W

Inputs

Sensitivity (1W/1m)

Connector

-pin Euro Terminal block (Balanced)

98 dB

Line Transformer Tappings

1

2

3

4

167 Ω – 100 V / Not used – 70 V / 30 W

333 Ω – 100 V / 30 W – 70 V / 15 W

667 Ω – 100 V / 15 W – 70 V / 7.5 W

1333 Ω – 100 V / 7.5 W – 70 V / 3.75 W

Sound Pressure (Max. W/1m)

Frequency

Crossover

Dispersion

@100V

Response (± 3 dB)

Type

Horizontal

Vertical

113 dB

110 Hz – 16 kHz

Passive built-in

110°

60°

Drivers

HF

1″ HF Horn tweeter

5” MF / LF Woofer

Ingress Protection rating

Connection

IP66

AWX5™ waterproof

Product Features

Dimensions

Weight

Construction

Colours

Mounting & handling

Accessories Included

310 x 215 x 330 mm (W x H x D)

4.7 kg

Impact & UV resistant ABS

Light grey (RAL7035)

Powder coated steel

Mounting bracket

Recommended Applications

Museums & Themeparks

Events

Corporate

Sporting facilities

Retail

Downloads

Additional information

Brand

Audac

Speaker Type

Surface mount, Water Resistant, Indoor/outdoor
