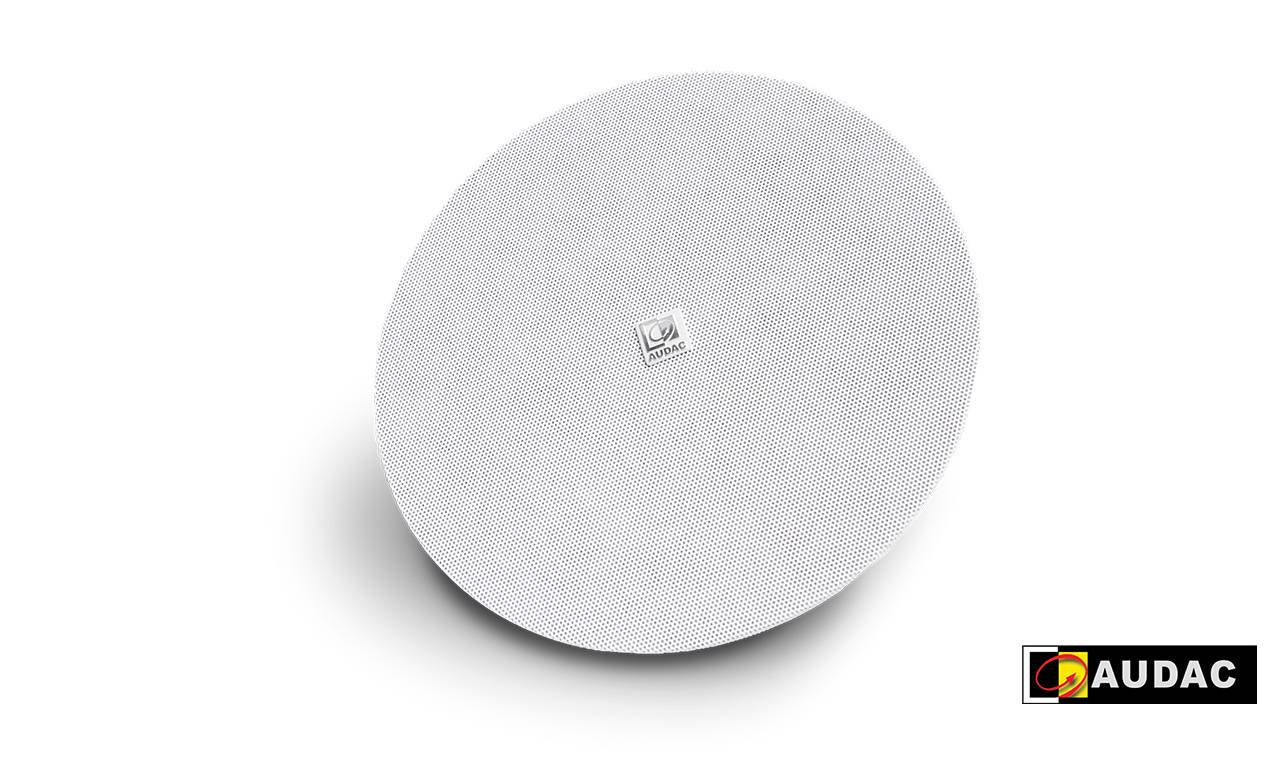

Audac CENA812W ceiling speaker


In stock

8” driver, 20 Watt (RMS) and maximum power handling of 40 Watt. 100V line transformers with tappings for 12W and 6W – transformer can be bypassed for low impedance connection

In stock


The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. The selection of high-quality cone materials guarantee an exceptional intelligibility and background music performance.

The CENA812 features a 8” broadband driver with a continuous power handling of 20 Watt (RMS) and maximum power handling of 40 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 12W and 6W.


Max. Power40 W
RMS Power20 W
Sensitivity (1W/1m)99 dB
Speaker typeBroadband
Impedance8 Ω (CENA812)
 16 Ω (CENA820D)
ConnectionScrew terminal
DriversDual cone
Sound Pressure (Max. W/1m)@ 100 V112 dB
FrequencyResponse (± 3 dB)100 Hz – 15 kHz
 Range (-10 dB)60 Hz – 18 kHz
Line Transformer Tappings112 W / 833 Ω
 26 W / 1667 Ω


Cut-out measurement207 mm (Ø)
Dimensions232 x 90 mm (Ø x D)
Front finishBorderless finely perforated steel grill
Built-in depth77 mm
MountingSpring-Fit™ mounting system
ColoursWhite (RAL9003) (CENA812/W)
 Black (RAL9005) (CENA812/B)

Additional information



Speaker Type

Ceiling, 100 Volt
