€25
The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects.

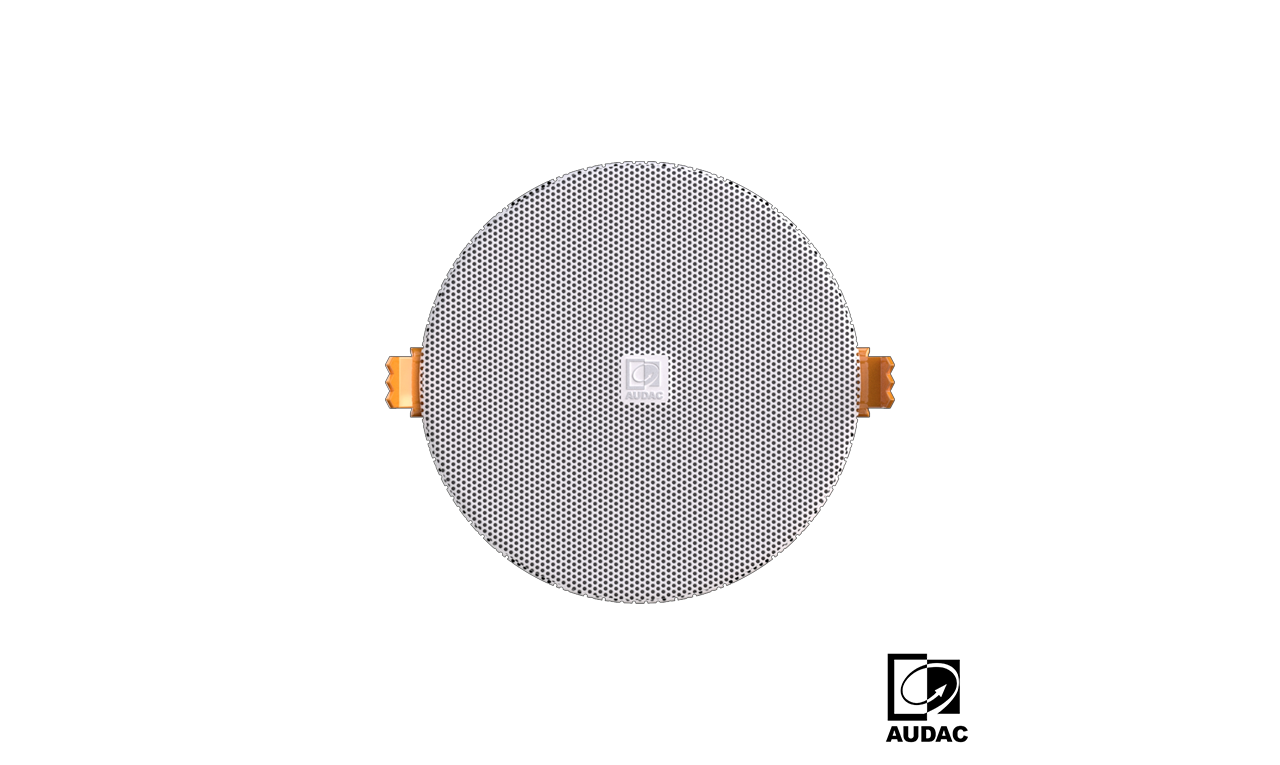

SpringFit™ 2,5″ ceiling speaker
The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².

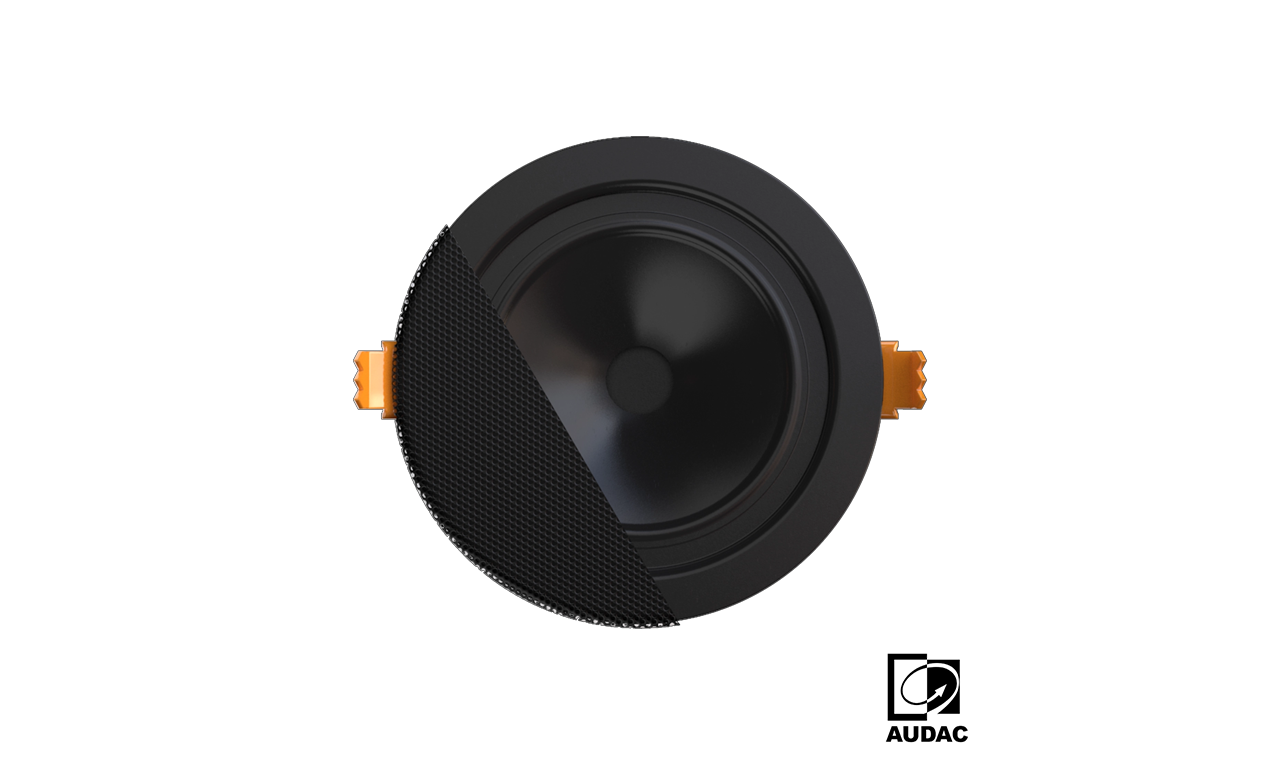

The CENA3 features a 2,5” broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.
CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large-scale public-address projects. With a selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed.

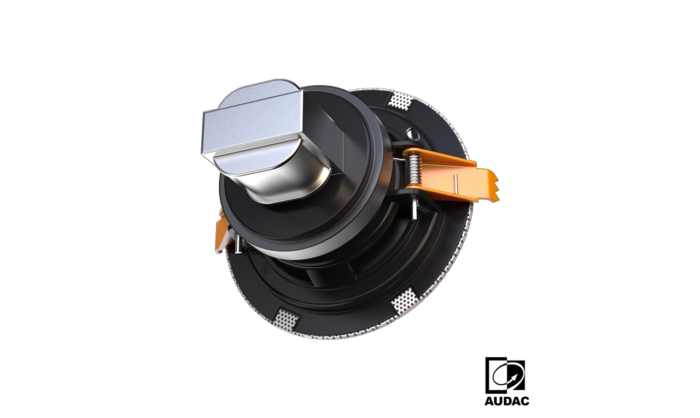

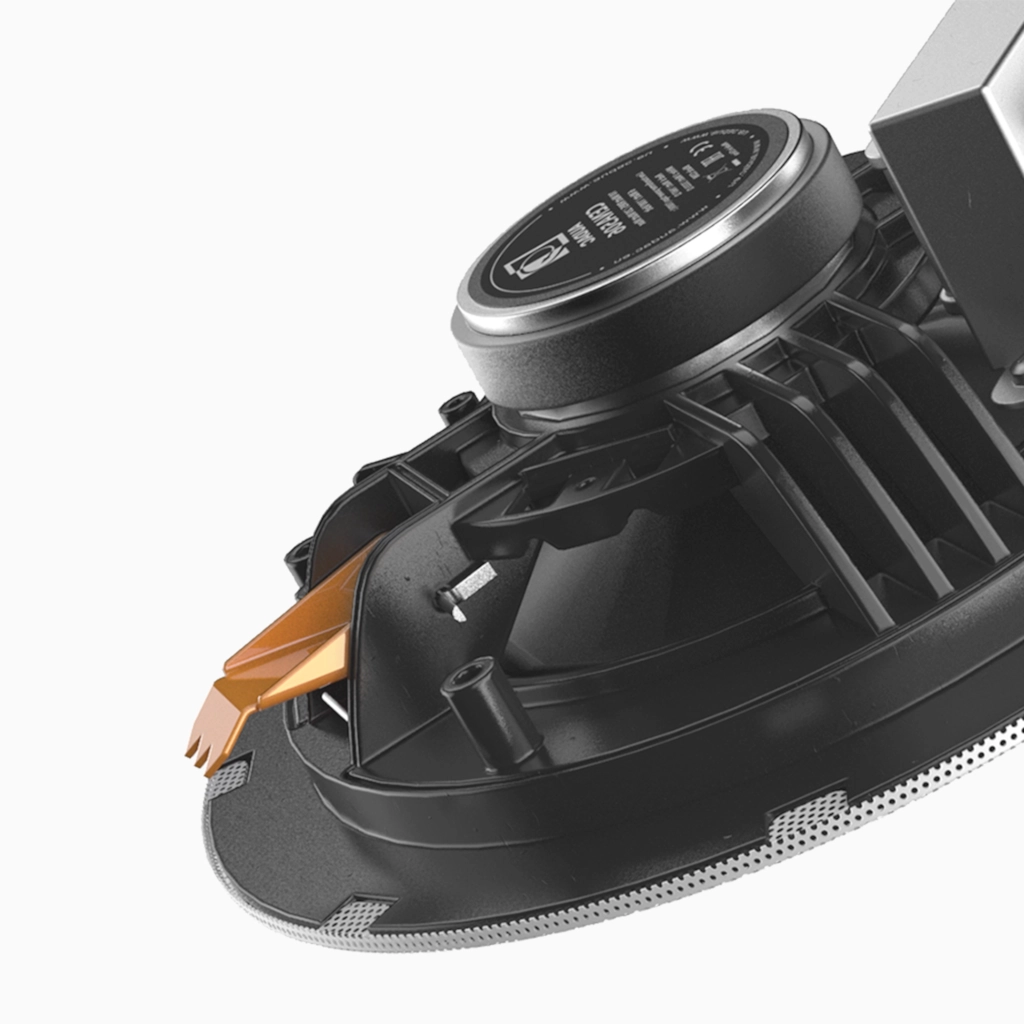

The SpringFit™ installation system allows installation of the CENA series speakers in a snap. Bend the mounting arms inwards and insert the speaker through the provided cut-out. The spring loaded mechanism will flip out and lock the speaker behind the ceiling surface.
A more user-friendly equivalent for screw terminal connectors to connect speaker cables together. SnapConnect™ is a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².

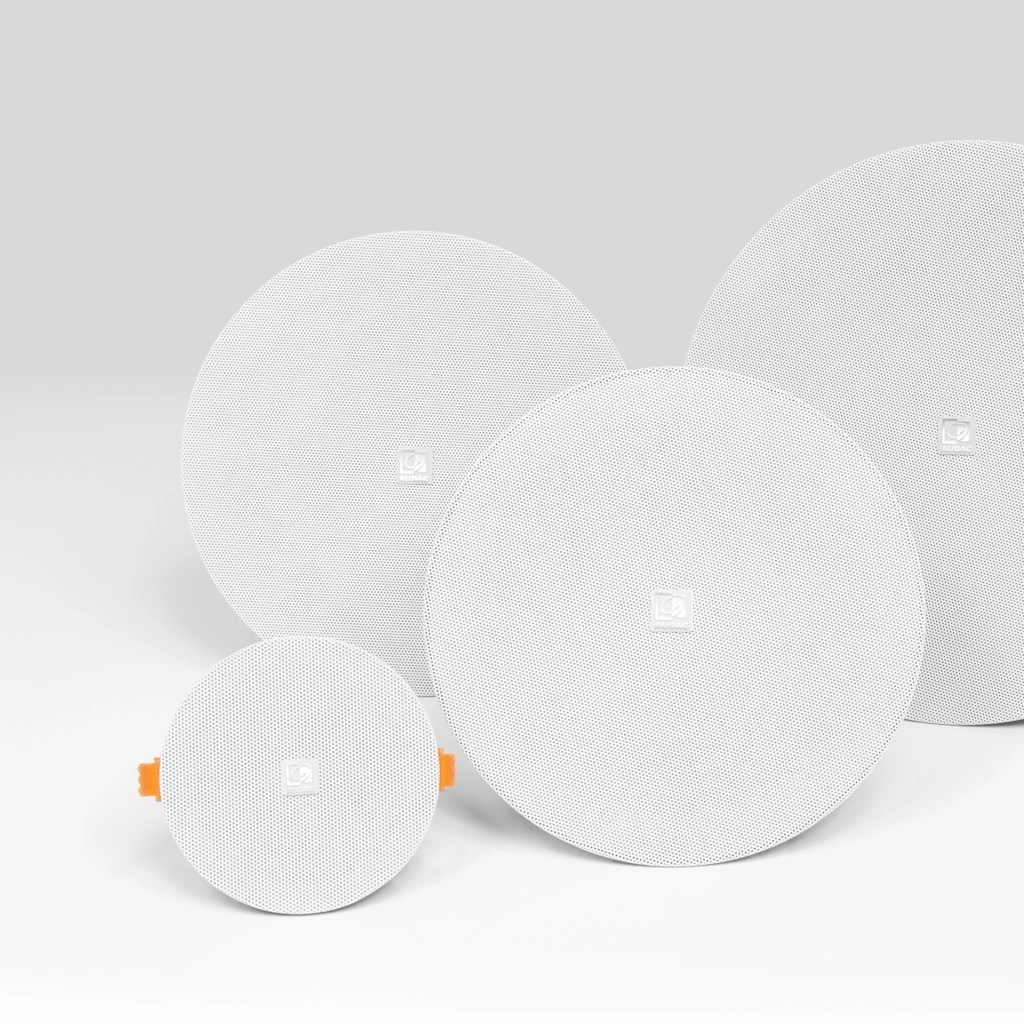

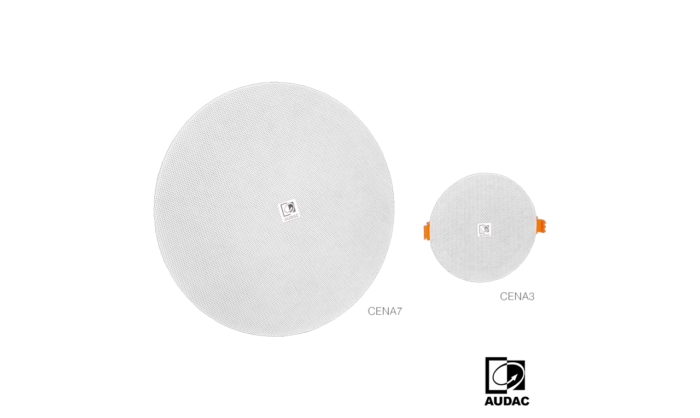

This version too big or too small? No worries, the CENA series consists of a complete family of different models that will fit perfectly into your project.
Available Models
CENA306/W
CENA306/B
White Version – 100V
Black Version – 100V
System specifications
Peak power handling
Program power handling
RMS/AES power handling
40W
20W
10W
Sound Pressure (Max. W/1m)
@ 100 V
97dB
Sensitivity (1W/1m)
Speaker type
Connection
Impedance
87dB
Broadband
SnapConnect™
8 Ω
Frequency
Response (± 3 dB)
Range (-10 dB)
120 Hz – 20 kHz
95 Hz – 20 kHz
Line transformer tappings
1
2
6 W / 1667 Ω
3 W / 3333 Ω
Drivers
2,5” Full Range
Dispersion
Conical
160°
Product Features
Construction
Front finish
Mounting
Colours
ABS
Borderless finely perforated steel grill
SpringFit™ mounting system
White (RAL9003) (CENA306/W)
Black (RAL9005) (CENA306/B)
Cut-out measurement
Dimensions
Weight
Operating Temperature
80 mm (Ø)
95 x 72 mm (Ø x D)
0.36 kg
-15 °C ~ 55 °C
Recommended Applications
Corporate
Retail
Bars & Restaurants
| Brand | Audac |
|---|---|
| Speaker Type | In-Ceiling, In-Wall |
