Audac CELO8S – In wall/ceiling Subwoofer

364

This 8” ceiling subwoofer is fitted with a stiff and light aluminum membrane, minimizing ceiling vibrations and resulting in energetic depths from above, while the open back design enables the CELO8S to reproduce low frequencies in the most natural way possible.

High-end 8″ ceiling subwoofer

  • 2 x 50 Watt RMS power
  • 8″ Aluminum membrane drivers
  • Terminal block connection (Lockable Phoenix style)
  • Reduce cable and amplifier channel usage thanks to integrated stereo crossover
  • SlimLine™ grill with 1mm thin border
  • Paintable front grill
  • Elegant & unobtrusive design
  • Warm & true to nature sound
SEND EMAIL QUERY

Description

The CELO8S is the next step in our journey to provide an impeccable musical atmosphere. This 8” ceiling subwoofer is fitted with a stiff and light aluminum membrane, minimizing ceiling vibrations and resulting in energetic depths from above, while the open back design enables the CELO8S to reproduce low frequencies in the most natural way possible. Its integrated stereo crossover enables you to effortlessly connect your satellite speakers, resulting in the absolute finest full-range sound experience in the most efficient way possible.

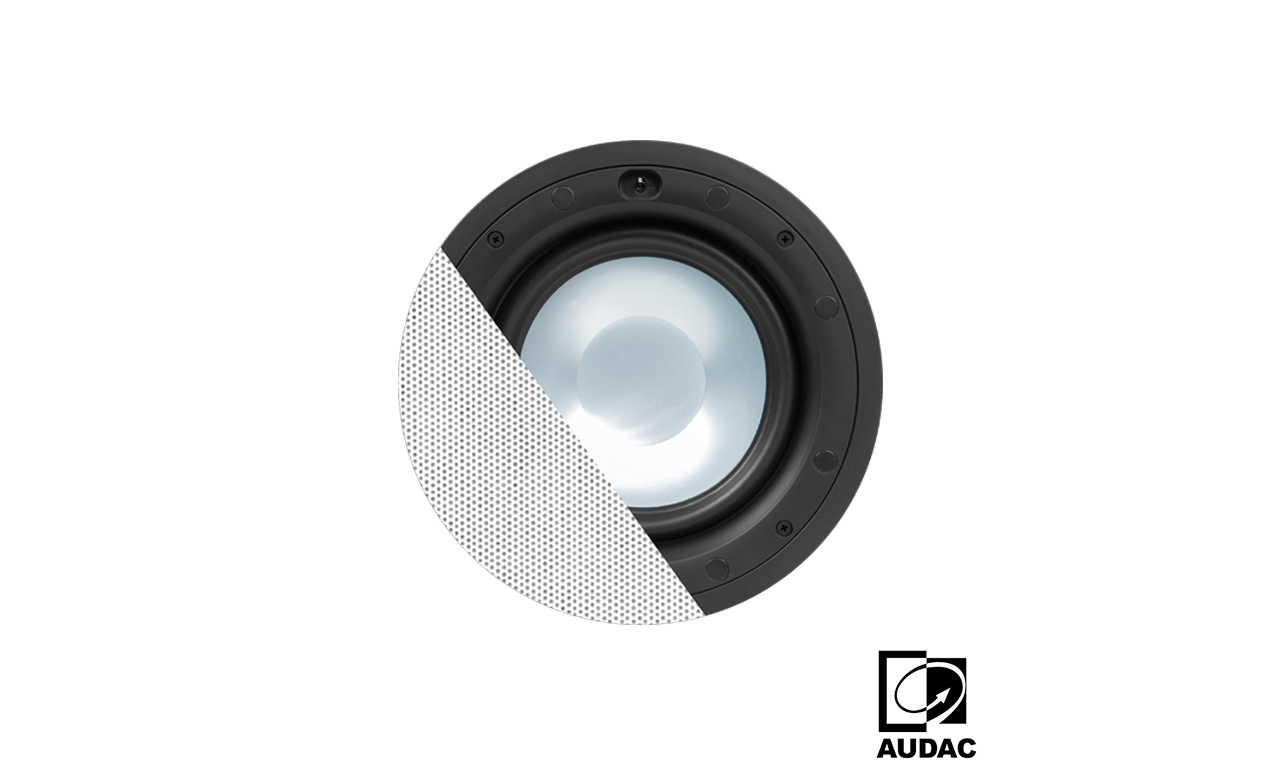

To overcome the architectural challenges of the most luxurious interior designs, the CELO8S is fitted with our SlimLine™ grill design with an exceptionally thin border of only 1 mm and a minimized grill depth, extruding merely 3.2 mm from the ceiling surface. In addition, the grill is completely paintable, making the speaker disappear without sacrificing any sound quality. This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly simple and reliable.

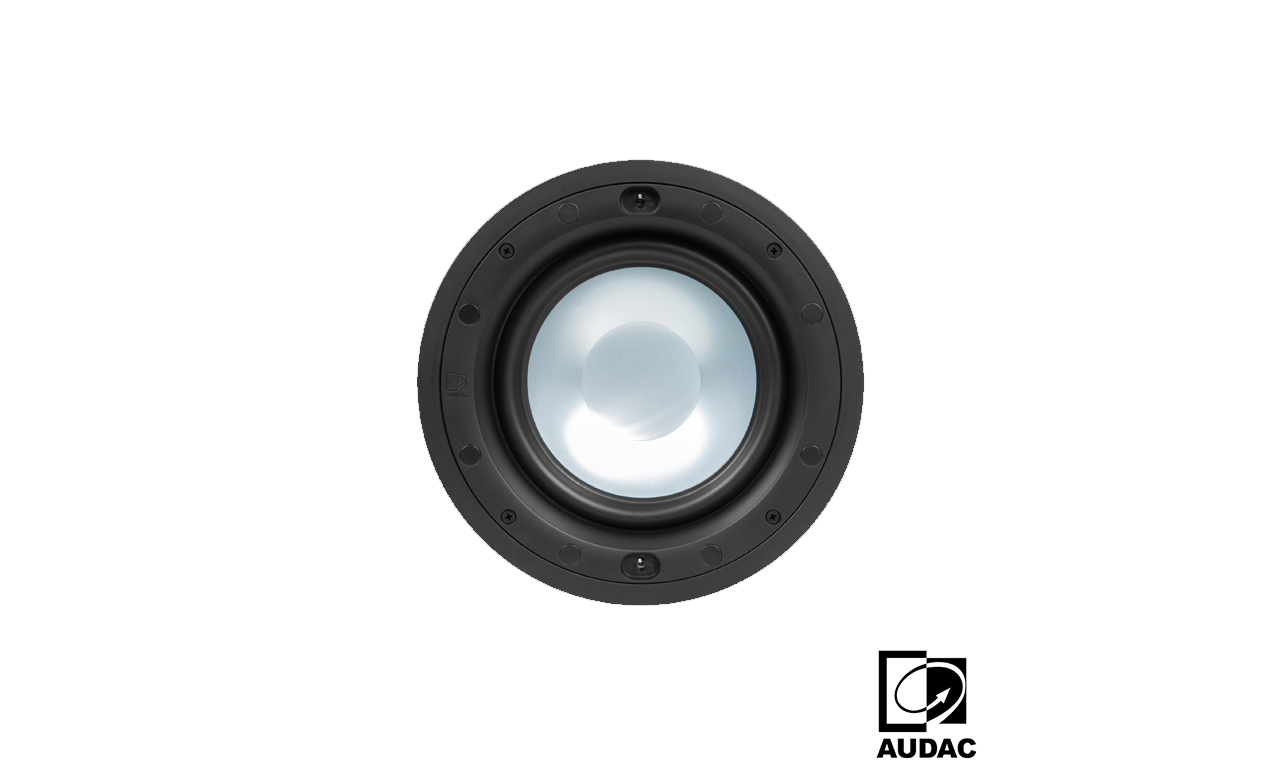

Without the speaker grill installed, it’s clear for anyone to see that the CELO8S is made by using only the highest quality materials, guaranteeing an unsurpassed sound experience. This results in true to nature sound reproduction for a warm and detailed sound with an RMS power of 50 Watt per channel and 100 Watt when connected in parallel.

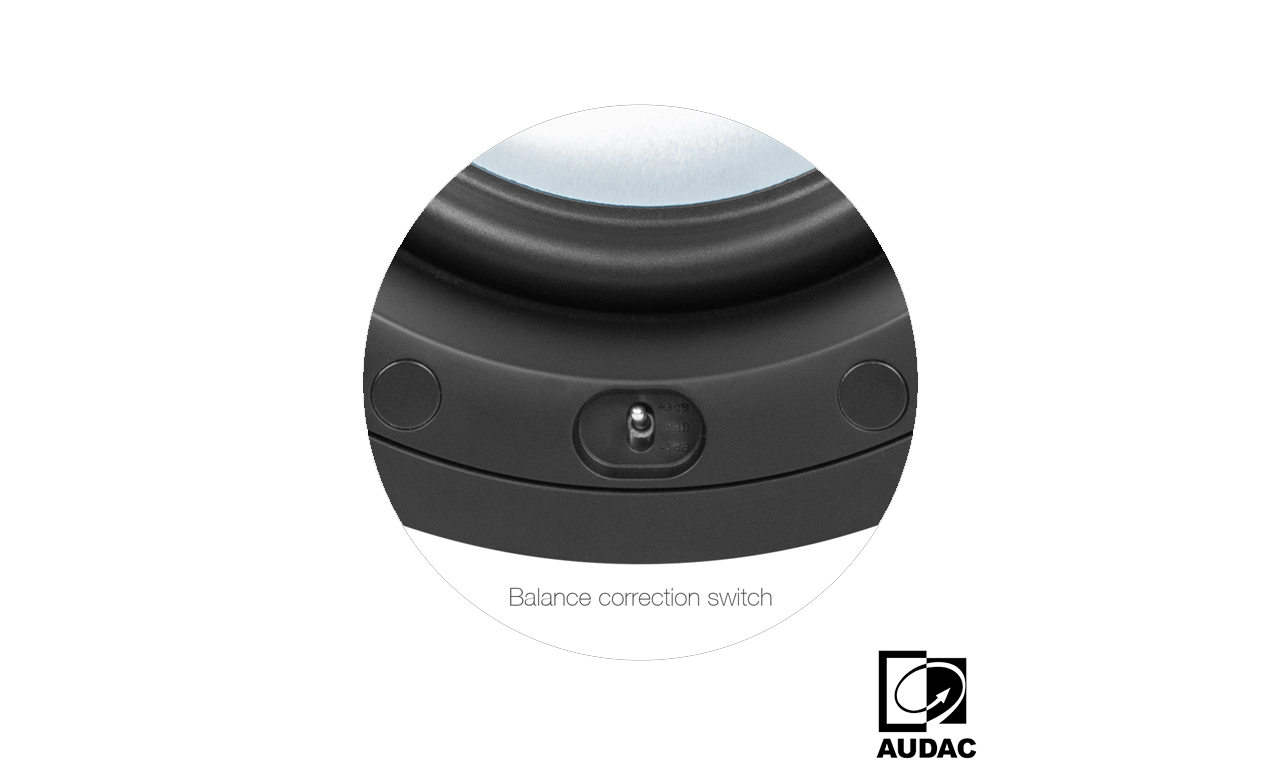

When installed with accompanying satellite speakers, the volume of these satellites relative to the subwoofer can be increased and decreased by 3 dB, according to the installation setup and preferred sound.

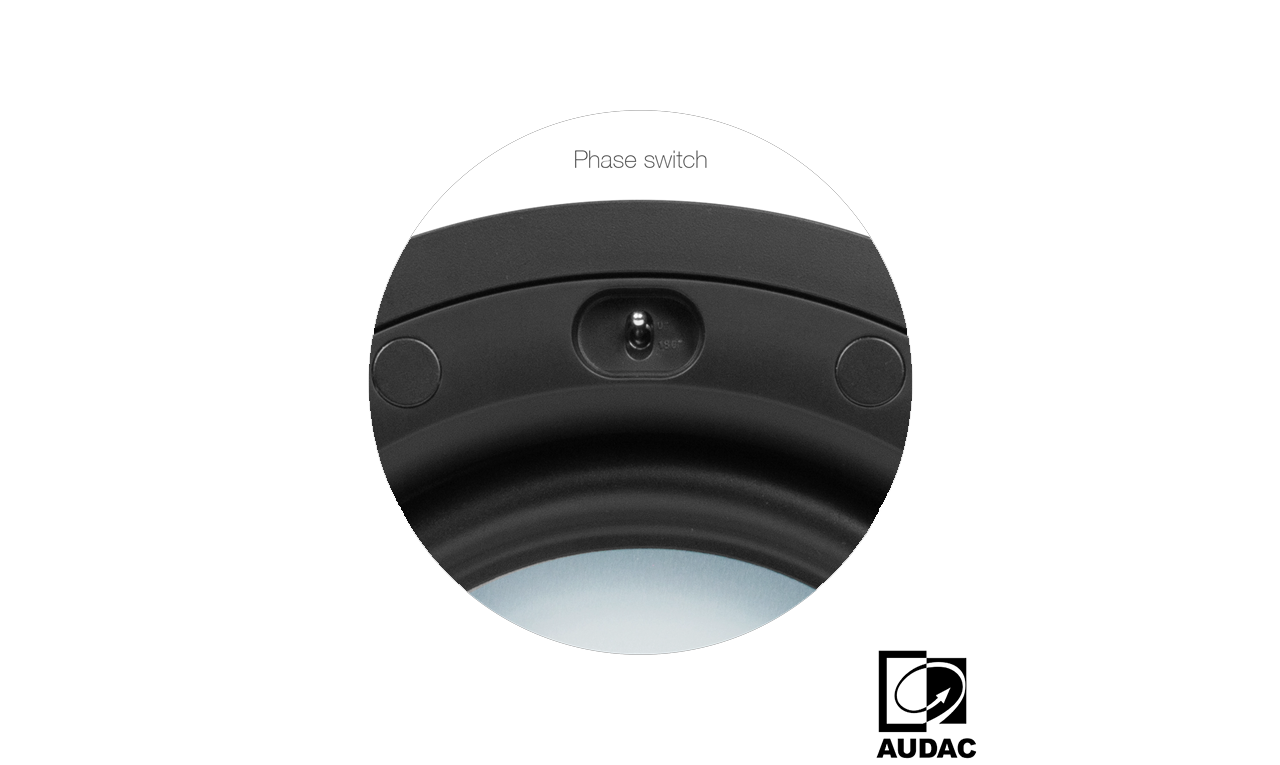

Depending on the acoustical properties of your room and placement of the subwoofer, the sub can be better integrated into your room when switched to either 0° or 180° by adjusting the phase switch. We recommend 0° when all speakers are mounted in a flat wall or ceiling.

Technical Specifications

Available models

CELO8S

White version

System Specifications

Peak power handling

Program power handling

RMS/AES power handling

Impedance

Sensitivity (1W/1m)

Sound Pressure(Max. W/1m)

2 x 200W

2 x 100W

2 x 50W

8 Ω

83dB

103dB

Frequency

Response (± 3 dB)

Range (-10 dB)

45 Hz – 200 Hz

32 Hz – 200 Hz

Crossover

Type

Frequency

Passive built-in

200 Hz

Connectors

Input

Output

4-pin Euro Terminal Block (Pitch – 3.81 mm)

8-pin Euro Terminal Block (Pitch – 5.08 mm)

Drivers

8” Aluminium membrane

Product Features

Dimensions

Weight

Construction

Front finish

Cut-out measurement

Built-in depth

Mounting & handling

Operating temperature

Colours

Accessories Included

Accessories Optional

275 x 120 mm (Ø x D)

2.75 kg

ABS

Thin edged white grill (RAL9003)

250 mm (Ø)

117 mm

4 Screw quick-fixing mechanism

-20 °C ~ 60 °C

Black frame & white grill

GLC08/W – White grill (RAL9003)

GLC08/B – Black grill (RAL9005)

GLC08/P – Paintable grill

Recommended Applications

Hotels

Bars & Restaurants

Retail

Corporate

Residential

Downloads

Speaker Matrix

Example Setups

Wide distribution range

Thanks to the wide coverage pattern of the CELO8S the room is easily filled with a full range, high-end sound experience

The choice is yours

The tiny and nearly invisible design of the CELO2 speakers makes the SENSO series set one of the most compact high-end in-ceiling audio solutions with subwoofer that will draw your attention only through its extraordinary sound.

Supported by the CELO8S 8” ceiling subwoofer that delivers detailed and punchy bass, while the open back design enables the CELO8S to reproduce low frequencies in the most natural way possible. It comes fitted with an integrated stereo crossover that enables you to effortlessly connect your satellite speakers, resulting in the absolute finest full-range musical atmosphere.

Powered by the EPA152 energy efficient Class-D stereo amplifier this system, using four CELO2 loudspeakers, can cover areas of round 100 m² with clear and powerful background music.
