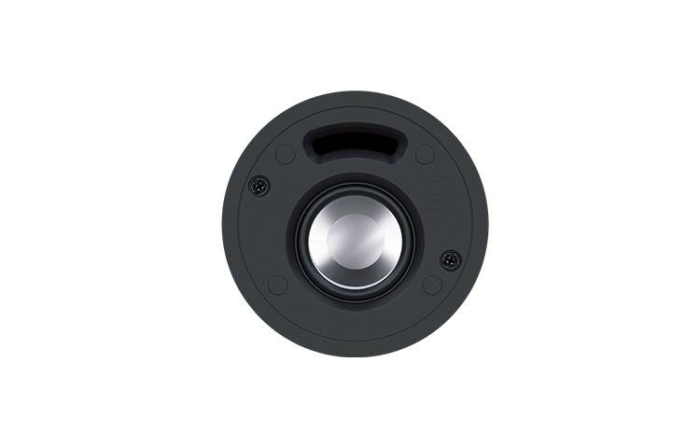

Audac CELO2 – Doneo Malta

FEATURES
– High-end ceiling speaker
– Slim grill with thin border (1 mm)
– Elegant & unobtrusive design
– Warm & true to nature sound
– Paintable front grill
– 2” Full range aluminium driver
– 10 Watt RMS power
– Gold plated spring clamp connectors
– Quick and simple mounting

APPLICATIONS
– Residential applications
– Retail stores & shopping centers
– Restaurants
– Bars
– Public buildings
– Offices

OVERVIEW

The CELO series is AUDAC‘s high-end, slim ceiling speaker series, comprising of different models which can guarantee an optimal experience for every situation and application. The Ultra-compact size enables the CELO2 smoothly integrate into any interior like no other loudspeaker. The outer diameter only measures 118 mm, which is as compact as a standard down lighter and the built-in dept of 95 mm allows installation in any ceiling while being unobtrusive.

The sound originates from a 2” aluminium cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to a ported enclosure with closed back can. This way, a smooth sound reproduction with clear and crisp sound is guaranteed. An internal self-resetting network provides an optimal overload protection.

All these details share their part to the quality of the Celo 2, resulting in an highly reliable loudspeaker producing a pure sound with a maximim power handling of 20 Watt and an RMS power handling of 10 Watt. An elegant look with minimal visual impact is created by the slim grill with very thin border, while lifetime stability, secure mounting and easy installation is guaranteed using the quick-fix mechanism which can be tightened by two screws and the Gold-Con™ spring clamp connectors. The grill is held in place using neodymium magnets, providing a quick and reliable assembly.

SPECIFICATIONS

SYSTEM SPECIFICATIONS
Speaker type Full range
Max power20 Watt
RMS power 10 Watt
Celo 2 Impedance 8 Ohm
Celo 2D Impedance 16 Ohm
Sensitivity (1W/1m) 83 dB
Sound pressure (max W/1m) 93 dB
Frequency response (±3 dB) 120 Hz – 20 kHz
Frequency range (-10 dB) 100 Hz – 20 kHz
Horizontal dispersion 150°
Vertical dispersion 150°

PRODUCT FEATURES
Dimensions (Diameter x Depth)Ø 118 x 98 mm
Weight net 0.35 Kg
Connection Gold-Con ™ spring clamps
Drivers 2” Aluminium membrane
Construction High quality ABS housing
Grill type Thin edged white grill
Cut-out measurement Ø 100 mm
Built-in depth 95 mm
Mounting & handling 2 Screw quick-fixing mechanism
Available colours
Black frame & white grill

SHIPPING & ORDERING
Packaging Cardboard box
Shipping weight & volume 0.50 Kg ~ 0.002 Cbm

Accessories included
Cut-out template

Optional accessories
WTR06 – 6W 100V line transformer
GLC02/B – Black grill (RAL9005)
GLC02/P – Paintable grill
