Audac CAP224

864.30

Call for availability

Audac professional Dual Channel 100V Power Amplifier 2 X 240 Watt output power, XLR signal linkthrough, advanced protection circuit.

Call for availability

SEND EMAIL QUERY

Description

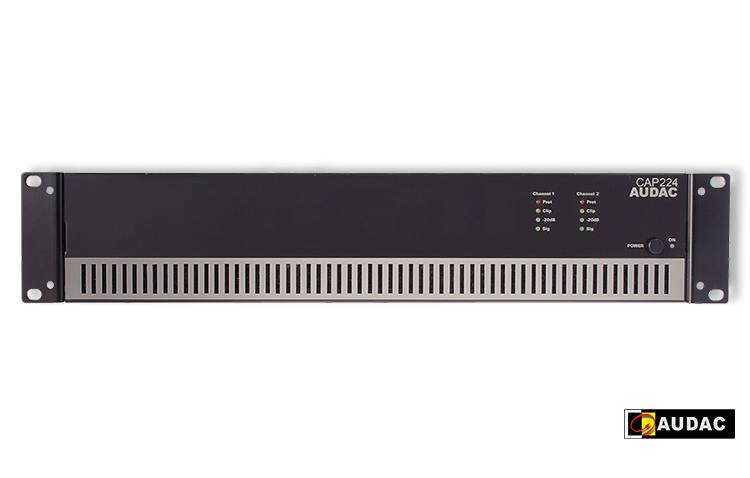

Audac CAP224 Dual Channel 100V Power Ampifier – Doneo Malta

The CAP series are professional 100V multi-channel power amplifiers.

The CAP224 offers two channels and has an output power of 240 Watt. This way, a flexible solution is created for multi-zone audio distribution systems with two independent zones. They are designed as no-nonsense amplifiers with only the necessary controls and connections which creates great simplicity in use and installation. A high efficiency and reliability of the device is achieved by using switching power supplies in combination with Class-D amplifier technology. A temperature controlled fan constantly keeps all parts within the right operation range while avoiding excessive buzz. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload and limits the signal when necessary. The input connections are performed using balanced XLR connectors and link output connectors are provided for link through to other amplifiers. Besides, a high-pass filter switch (400 Hz) and a gain adjustment potentiometer are provided for each channel.

The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19” rack mounting housing.

RMS Power 2 x 240 W
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.3% (1/2 Rated Power)
Crosstalk (@ 1 kHz) < 80 dB
Technology Class-D
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 50 Hz – 22 kHz
Power Supply Switching mode
Source 230 ~ 240 V AC / 50 Hz
Inputs Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB
Impedance 10 kΩ balanced
Connector XLR female with Male Linkthrough
Outputs Voltage / Impedance 100 V / 42 Ω
Connector 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Product features
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 7.200 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black

Additional information

Brand

Audac

Amplifier Connectivity

100V, 2 Channel
