Audac Ateo6M Black & White

170

Price is each. The ATEO6M is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response.

SEND EMAIL QUERY

Description

ATEO6M

In & outdoor surface mount loudspeaker with CleverMount+™

  • Ultra-flat frequency response
  • Weatherproof – IP66 rating
  • Hydrophobic cloth behind aluminum grill
  • Unmatched sonic brilliance
  • 720 Hours salt spray test
  • Marine grade build quality & UV resistant
  • Save up to 50% installation time thanks to CleverMount™+
  • External power tap selection
  • Screwless WAGO connections for quick & safe connection with linktrough up to 4mm²
  • No wires or bracket visible from the back
  • Extremely firm fixation from front, allowing swift and accurate inclination
  • Optional mounts for inclination angle or light track mounting

The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO6M is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting system using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting system providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install in- & outdoor applications.

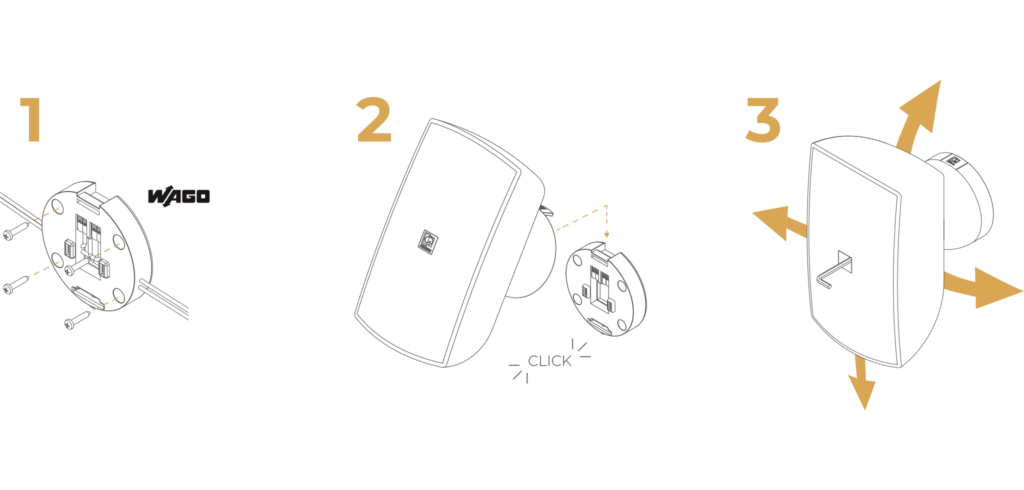

With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall mount to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time.

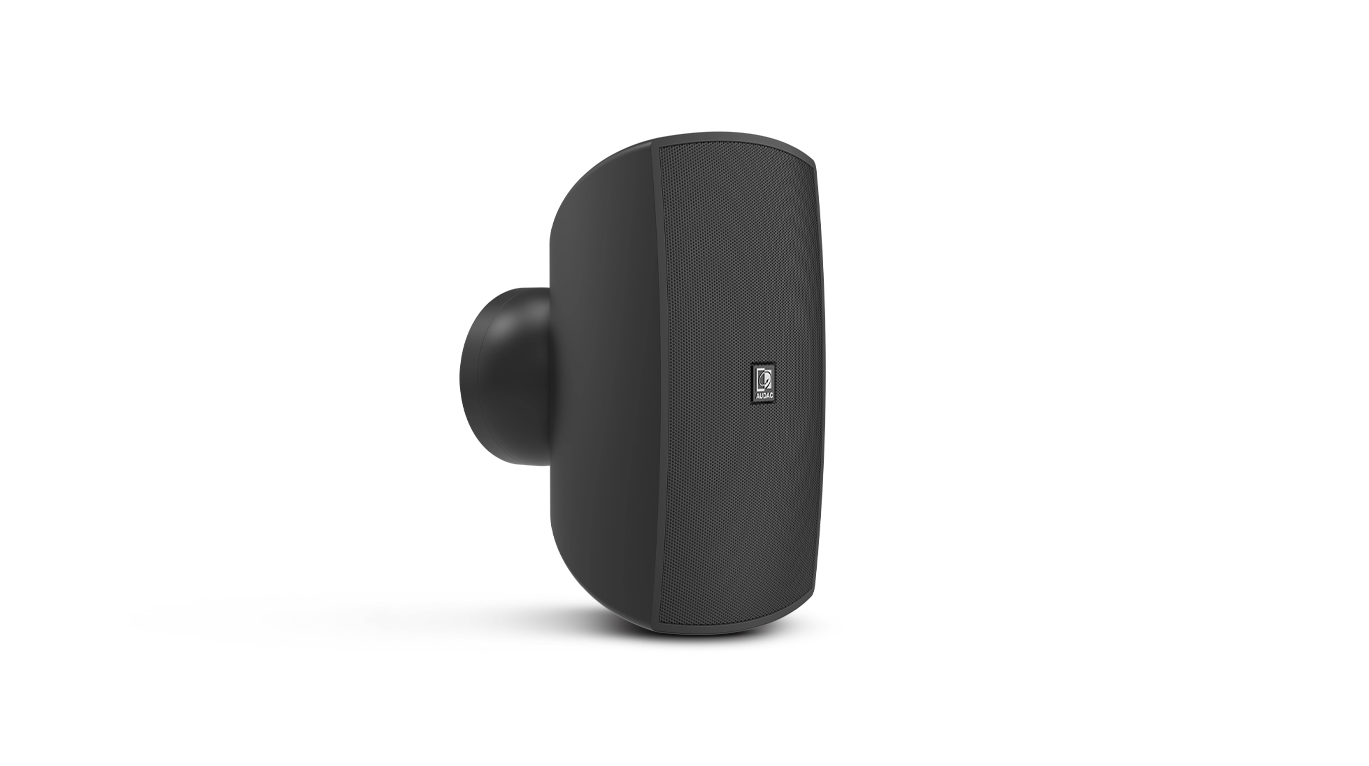

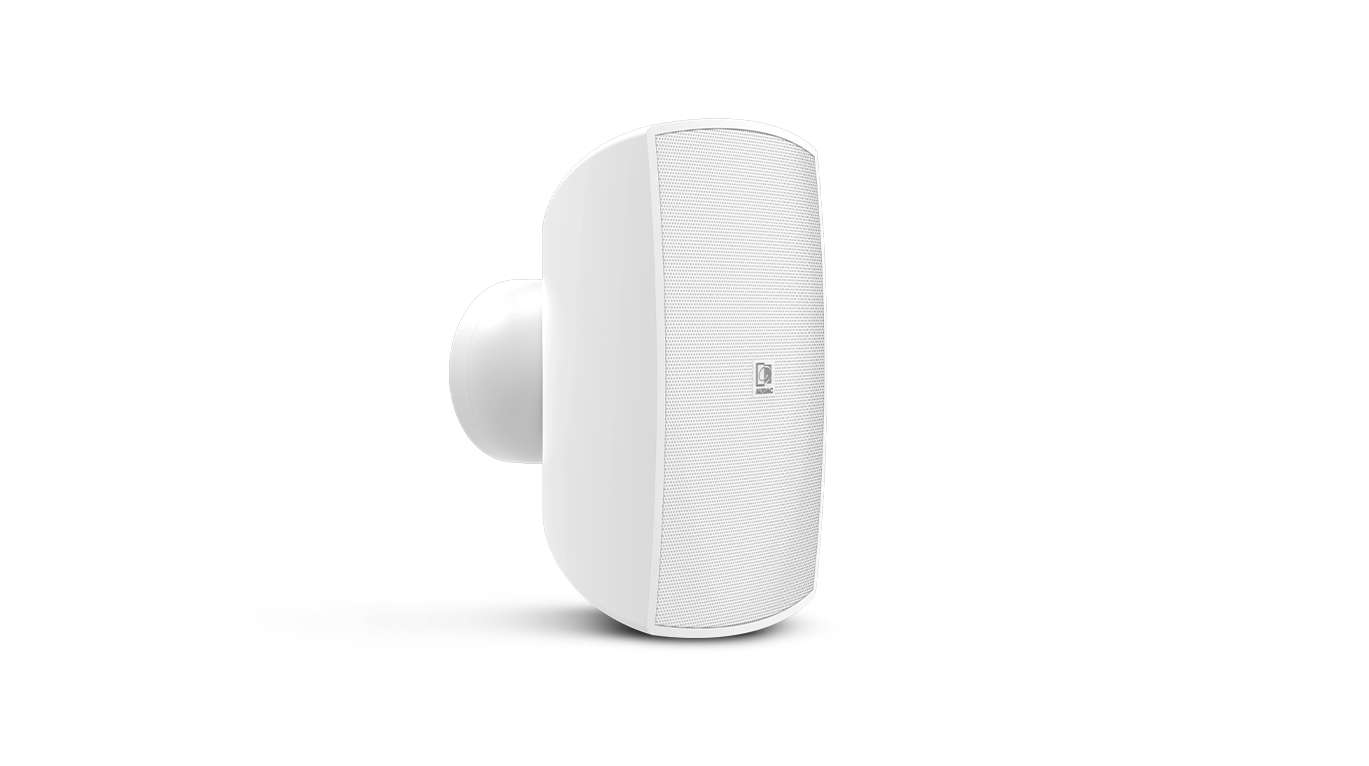

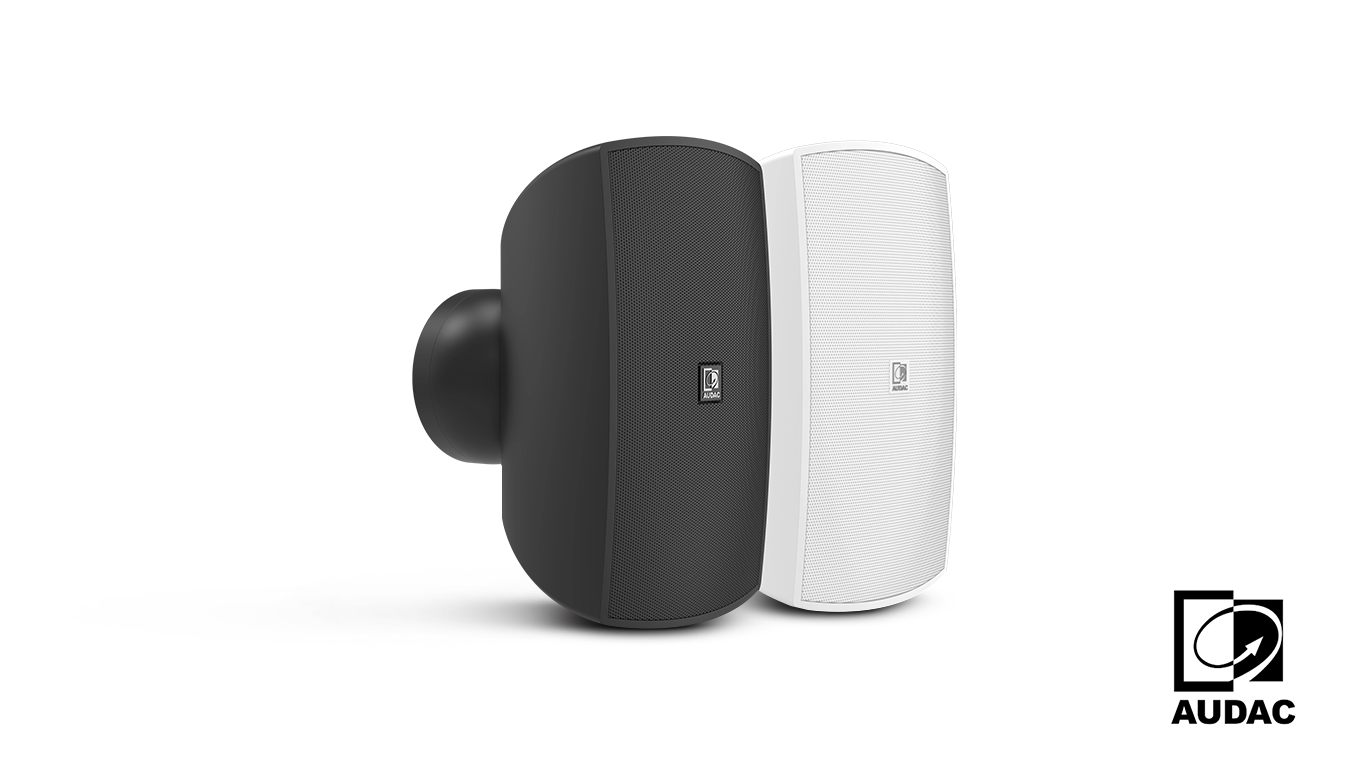

All ATEOxM series speakers are available in black (/B) or white (/W).

MARINE GRADE BUILD QUALITY

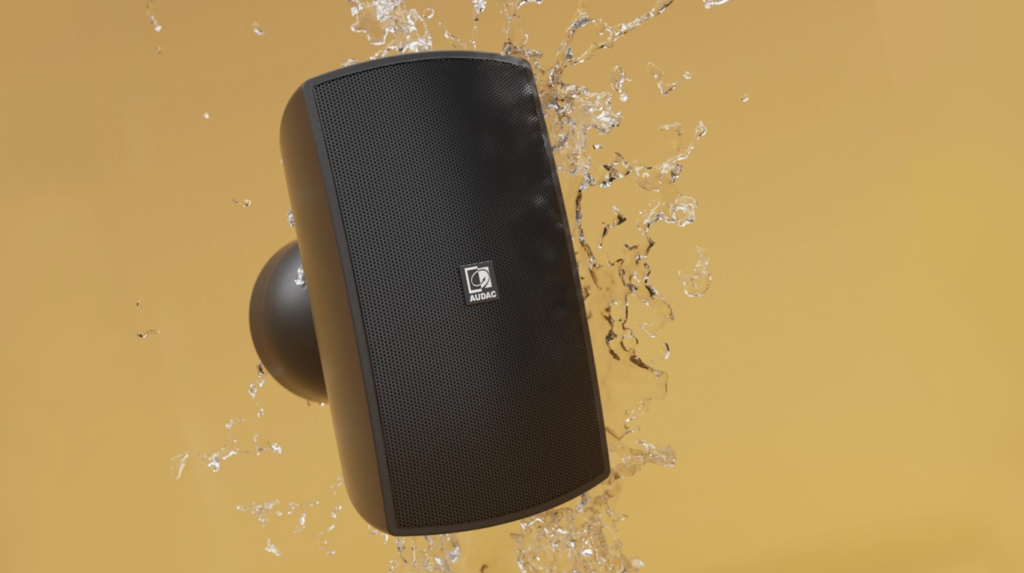

IP66 rated - all-weather resistant

An optimized loudspeaker design with an aluminum grill with hydrophobic mesh, to achieve an IP66 rating. Thanks to its elegant ABS housing, ATEOxM is also 720-hour salt spray certified and UV resistant.

ADJUST AND TWEAK TO YOUR NEEDS

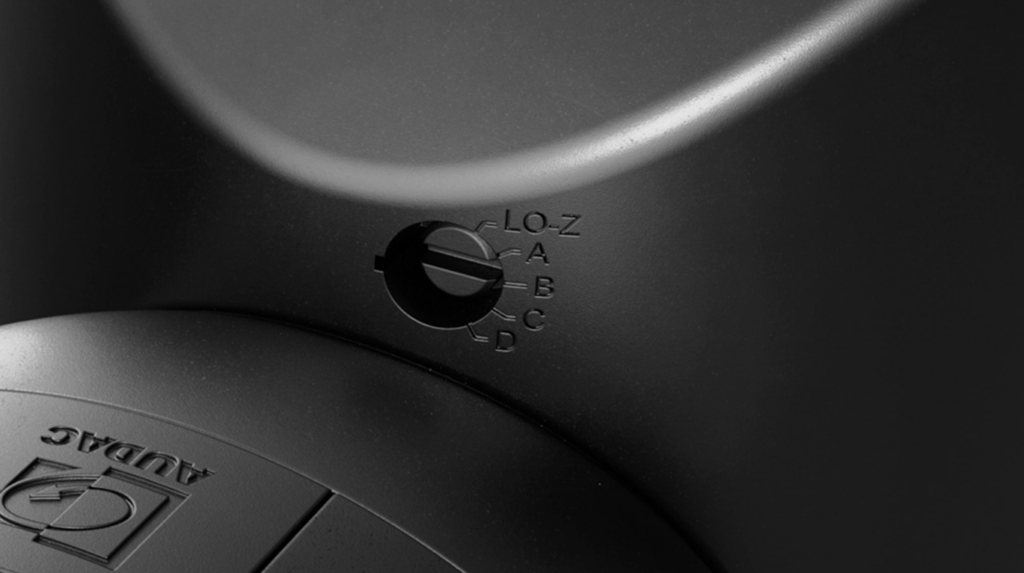

External power tap selection

Need to tweak the loudspeaker settings after installation? No problem, the ATEOxM has an integrated external power tap selector hidden on the rear. Easy and quick access in seconds!

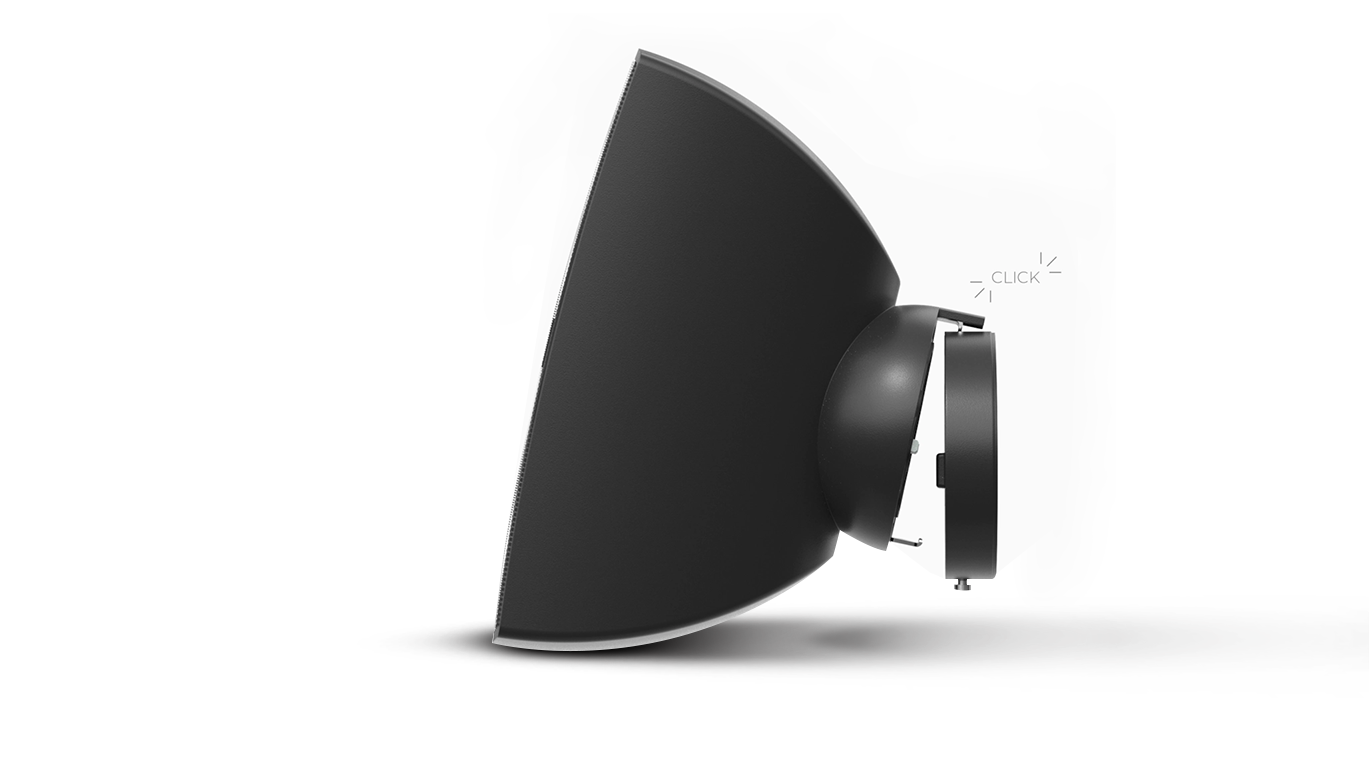

INNOVATIVE CLEVERMOUNT+™

Save up to 50% on installation time

Thanks to the patented CleverMount+™ mounting technology these loudspeakers have the advantage of making the speaker cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. A safe installation of the loudspeaker is acquired thanks to the separate bracket base.

GREAT INSTALLER CONVENIENCE

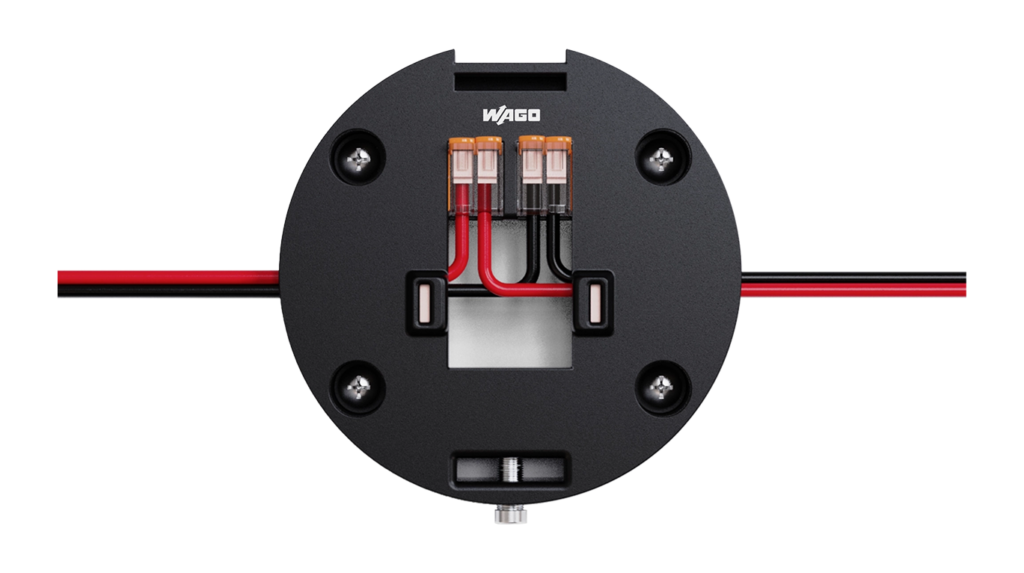

WAGO connections

These design loudspeakers come with official WAGO connectors for the perfect high-quality and reliable electrical installation. WAGO connectors allow up to 4.0 mm2 cable section. Great installer convenience is provided with the WAGO spring cage terminals, no additional tools are needed!

Technical Specifications

Available Models

ATEO6M/B
ATEO6M/W
ATEO6DM/B
ATEO6DM/W
  Black version – 8Ω and 100V
  White version – 8Ω and 100V
  Black version – 16Ω
  White version – 16Ω

System specifications

Speaker type

Peak power handling

Program power handling

RMS/AES power handling

Impedance

Full range

240 W

120 W

60 W

  • 8 Ω (ATEO6M)
  • 16 Ω (ATEO6DM)

Incline angle

Left

Right

Bottom

Top

30°

30°

30°

Sensitivity (1W/1m)

Sound Pressure (Max. W/1m)

Frequency

Dispersion

Connectors

Drivers

@ 8 Ω

@ 100 V

Response (± 3 dB)

Range (-10 dB)

Horizontal

Vertical

Vertical

89 dB

106 dB

105 dB

65 Hz – 20 kHz

55 Hz – 20 kHz

120°

120°

2 x WAGO terminal block connections

1” Dome tweeter

6” MF / LF Woofer

Line Transformer Tappings

Power Connector

Ingress Protection rating

1

2

3

4

100 Ω – 100 V / Not used – 70 V / 50 W

200 Ω – 100 V / 50 W – 70 V / 25 W

400 Ω – 100 V / 25 W – 70 V / 12.5 W

800 Ω – 100 V / 12.5 W – 70 V / 6.25 W

IP66

Product Features

Dimensions

193.1 x 347.5 x 215.2 mm (W x H x D)

Weight

Operating temperature

Accessories
Included

3.820 kg

-20 °C ~ 60 °C

Allen-key wrench

Mounting

Construction

Front finish

Colours

Weatherproof CleverMount+™

ABS

Aluminium grill with hydrophobic cloth

Black (RAL9005) (ATEO6M/B, ATEO6DM/B)

White (RAL9003) (ATEO6M/W, ATEO6DM/W)

Recommended Applications

Bars & Restaurants

Retail

Education

Hotels

Corporate

Residential

Clubs

Functionality

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

8Ω and 100V, Indoor/outdoor
