Audac ATEO6

147.20

Call for availability

Audac professional clevermount design 100V Wall Speaker with 6″” woofer and 1″” dome tweeter – PRICE IS FOR 1 SPEAKER ONLY

Description

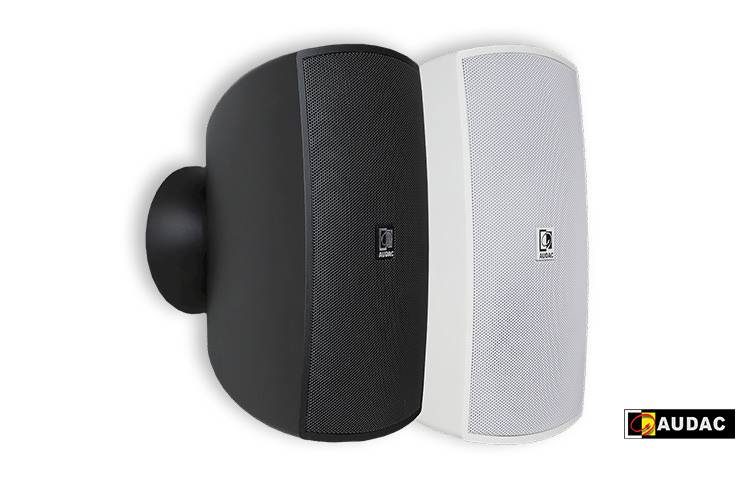

Audac ATEO6 clevermount design speakers – Doneo Malta

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO6 is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the especially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. The mounting and connection of the loudspeaker simply happens by attaching the included metal wall-plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall-plate, tightening the safety screw and you’re ready to rock! This way, it’s really child’s play to install a large number of loudspeakers in no-time. Even if you’re working all alone while people are watching your fingers or when installing the speakers up high, when you’re standing on a ladder.

All ATEO series speakers are available in black (/B) or white (/W).

Speaker type Full range
Max. Power 120 W
RMS Power 60 W
Impedance 8 Ω
Sensitivity (1W/1m) 89 dB
Connectors 6-pin Custom Terminal Block
Drivers 1” Dome tweeter
6” MF / LF Woofer
Incline angle Left 30°
Right 30°
Bottom 30°
Top
Line Transformer Tappings 1 50 W / 200 Ω
2 25 W / 400 Ω
3 12.5 W / 800 Ω
4 6.25 W / 1600 Ω
Sound Pressure (Max. W/1m) @ 8 Ω 106 dB
@ 100 V 105 dB
Frequency Response (± 3 dB) 65 Hz – 20 kHz
Range (-10 dB) 55 Hz – 20 kHz
Dispersion Horizontal 120°
Vertical 120°
Product features
Dimensions 139.1 x 347.5 x 215.2 mm (W x H x D)
Weight 3.820 kg
Mounting Clevermount™
Construction ABS
Front finish Steel grill
Colours Black (RAL9005) (ATEO6/B)
White (RAL9010) (ATEO6/W)

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

Bookshelf / Wall-Mounted, 100 Volt
