Audac ATEO2

44

Call for availability

Audac professional clevermount design 100V Wall Speaker with 2” aluminum cone drivers.

SEND EMAIL QUERY

Description

Audac ATEO2 – Black – Doneo Malta

OVERVIEW

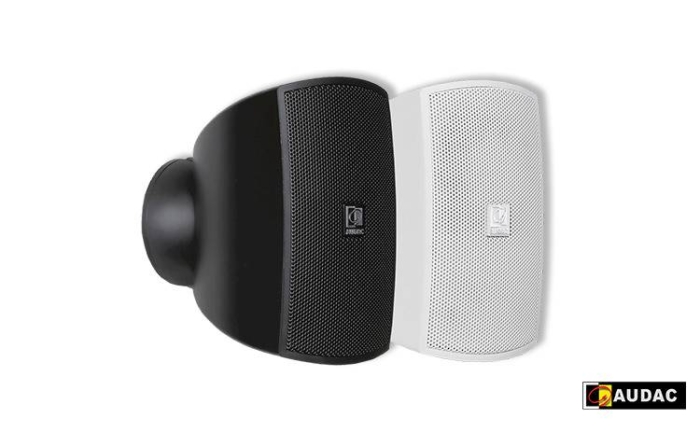

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs. The ATEO 2 is the ultra-compact model of this series which smoothly integrates into any interior like no other loudspeaker.

The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design. This way, a smooth sound reproduction with clear and crisp sound is guaranteed.

The internal self-resetting network provides an optimal overload protection. It features a stunningly designed and elegant looking ABS housing which is fitted with high quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. The mounting and connection of the loudspeaker is done by mounting the wall-plate to the desired location.

The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers’ side. The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until its fixed.

Speaker type Full range
Max. Power 20 W
RMS Power 10 W
Impedance 8 Ω (ATEO2)
16 Ω (ATEO2D)
Sensitivity (1W/1m) 83 dB
Sound Pressure (Max. W/1m) 93 dB
Ingress Protection rating IP40
Connectors 2-pin Euro Terminal Block
Drivers 2” Aluminium full range
Incline angle Left 25°
Right 25°
Bottom 25°
Top 15°
Frequency Response (± 3 dB) 120 Hz – 20 kHz
Range (-10 dB) 100 Hz – 20 kHz
Dispersion Horizontal 145°
Vertical 170°
Product features
Dimensions 80 x 136 x 115 mm (W x H x D)
Weight 0.390 kg
Mounting Clevermount™
Construction ABS
Front finish Steel grill
Colours White (RAL9010) (ATEO2/W, ATEO2D/W)
Black (RAL9005) (ATEO2/B, ATEO2D/B)

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

Bookshelf / Wall-Mounted, 100 Volt
