Audac Ateo 4MK2

140.42

In stock

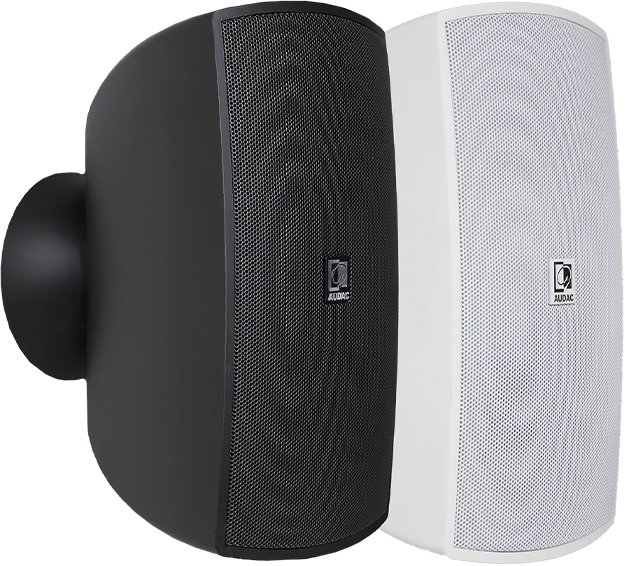

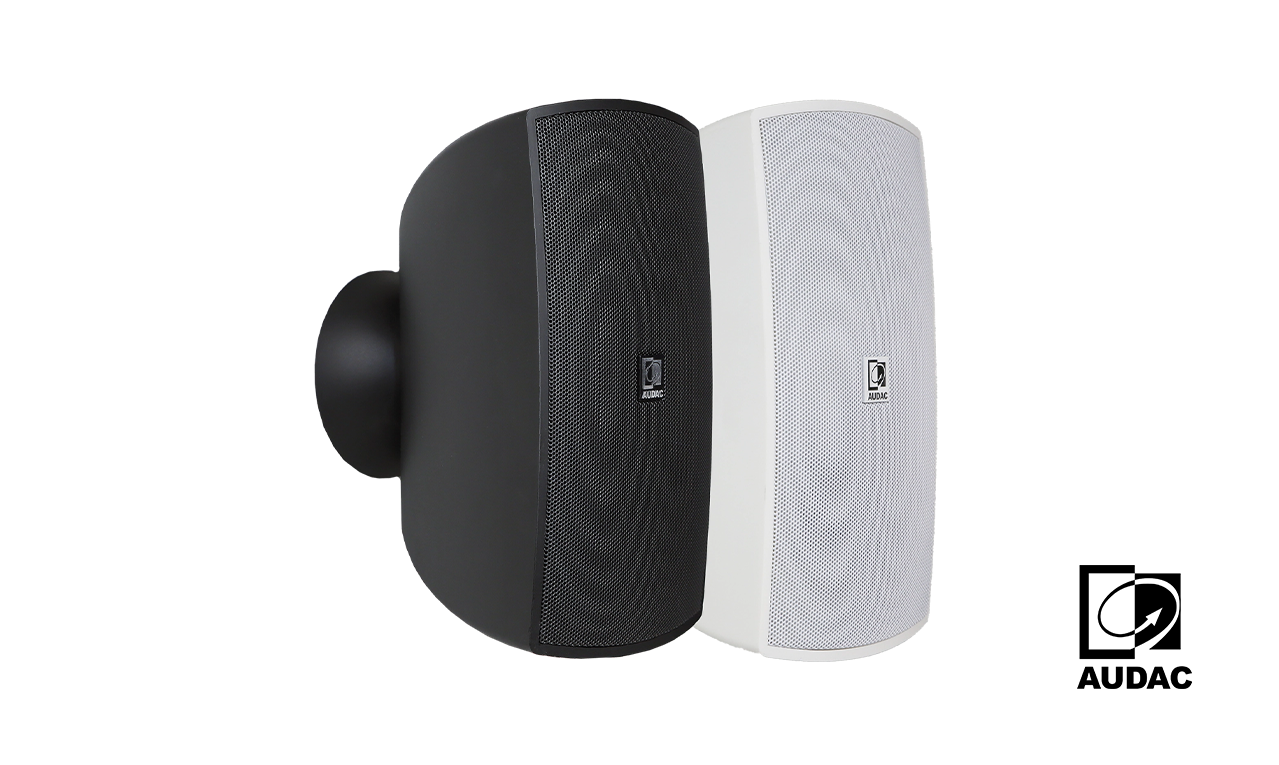

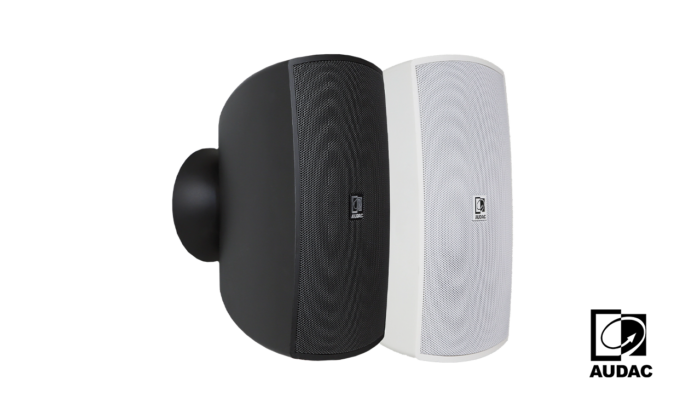

Price is each. The ATEO4 loudspeaker is the 4″ version with a 1″ dome tweeter and a 4″ midrange/bass, ensuring high-fidelity reproduction of music and speech.

SKU: Audac Ateo 4MK2 Categories: , Tag:

Description

Wall speaker with CleverMount™ 4″

  • Vertical and horizontal mounting (rotatable logo)
  • 1″ Dome tweeter
  • 4″ Low frequency loudspeaker
  • 100V and low impedance connection possibility
  • Stunning designed and elegant-looking ABS enclosure
  • Patented CleverMount™ mounting system
  • Ultra-flat frequency response
  • Multi-tapping 70V / 100V line transformer

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO4 is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true to- nature, high-fidelity reproduction of music and speech. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. The ATEO4MK2 is an improved version of its predecessor where we have been able to improve the sound quality by implementing a new crossover. With its balanced 1” dome tweeter and 4” mid/low-frequency driver the ATEO4MK2 ensures an ultra-flat frequency response and forms the ideal solution for fixed install indoor applications.

The mounting and connection of the loudspeaker simply happens by attaching the included metal wall-plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 70V/100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall-plate, tightening the safety screw and you’re ready to rock! This way, it’s really child’s play to install a large number of loudspeakers in no-time.

Even if you’re working all alone while people are watching your fingers or when installing the speakers up high when you’re standing on a ladder. All ATEO series speakers are available in black (/B) or white (/W).

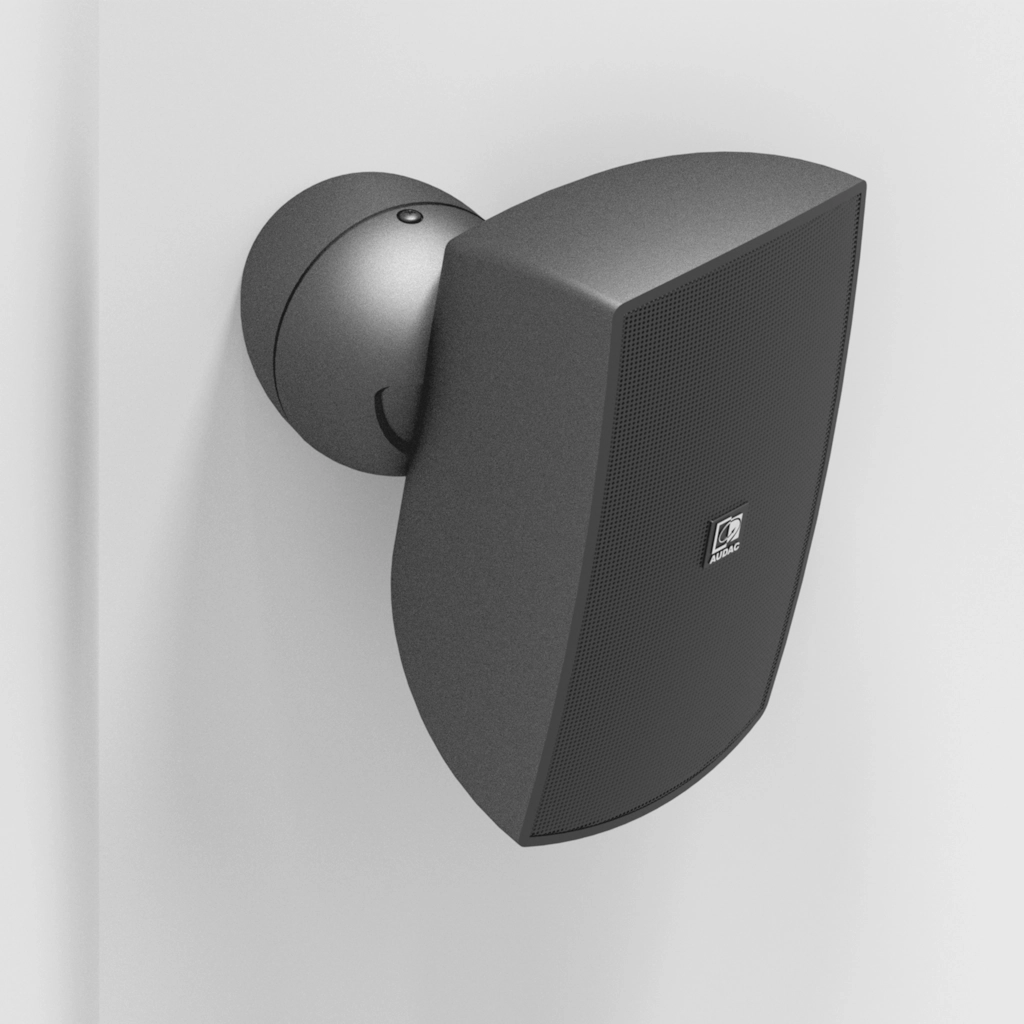

CLEVERMOUNT™ TECHNOLOGY
Free inclinable in every direction
Thanks to the Clevermount™ innovation, the loudspeaker can be placed in any horizontal or vertical direction with a simple Allen key twist. This makes the loudspeaker step-less and inclinable in every direction.

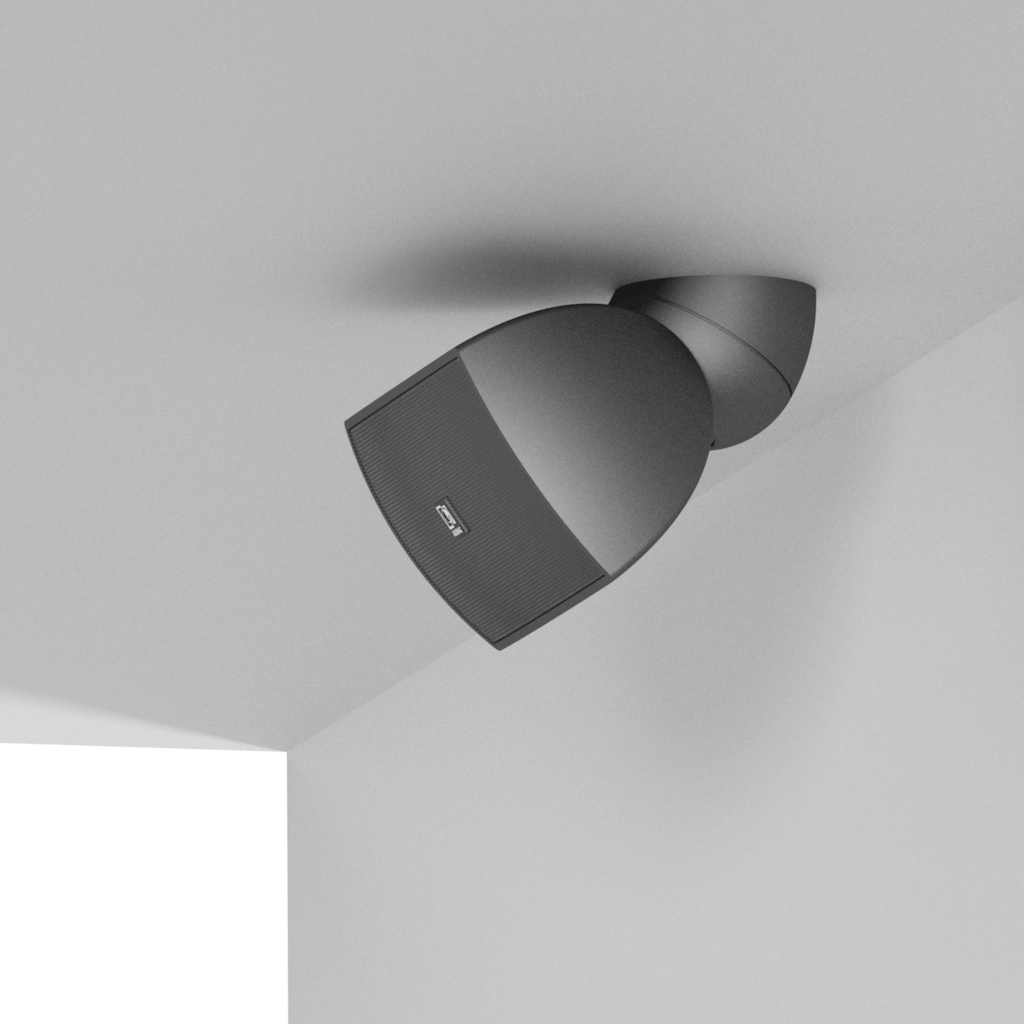

ADD AN EXTRA 30° ANGLE
Ceiling mount possibilities
The optional WMA incline bracket adds an extra 30° angle to the already existing incline angle of ATEO speakers. This opens the possibility of placing the speaker horizontally or vertically at an angle up to 60° and ensures a perfect sound experience.

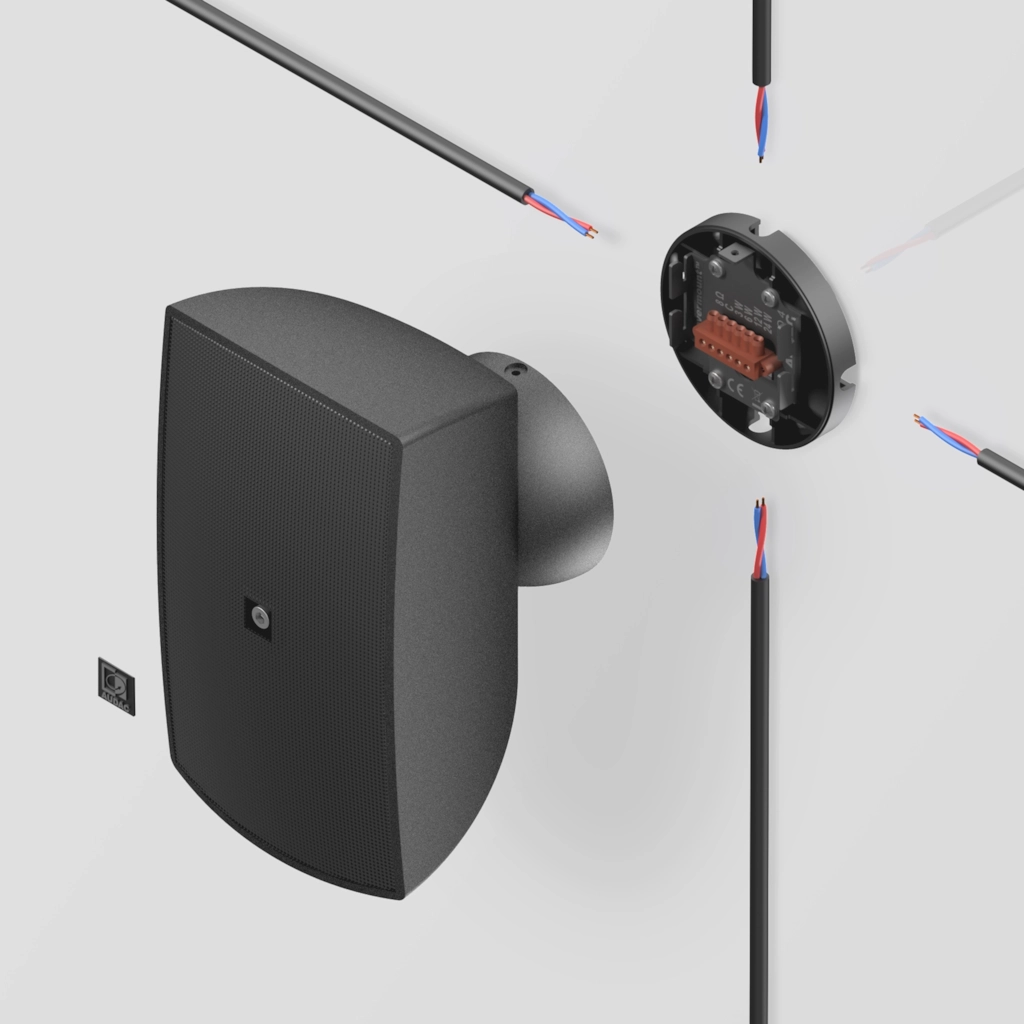

ACCESSIBLE FROM EVERY ANGLE
Adaptive wall mounting
The connection of the loudspeaker simply happens by attaching the included wall plate to your desired location and wiring the cables to this wall plate. The Clevermount™ innovation ensures installer to have both hands free to slide the loudspeaker cabinet into the bracket.

Technical specifications

Available models
ATEO4MK2/B Black version – 8Ω and 100V
ATEO4MK2/W White version – 8Ω and 100V
ATEO4D/B Black version – 16Ω
ATEO4D/W White version – 16Ω
System specifications
Speaker typeFull range
Peak power handling140 W
Program power handling70 W
RMS/AES power handling35 W
Impedance8 Ω (ATEO4)
 16 Ω (ATEO4D)
Incline angleLeft30°
 Right30°
 Bottom30°
 Top
Sensitivity (1W/1m)86 dB
Sound Pressure (Max. W/1m)@ 8 Ω101 dB
 @ 100 V100 dB
FrequencyResponse (± 3 dB)100 Hz – 20 kHz
 Range (-10 dB)65 Hz – 20 kHz
DispersionHorizontal130°
 Vertical130°
Connectors6-pin Custom Terminal Block
Drivers1” Dome tweeter
 4” MF / LF Woofer
Line Transformer Tappings1208 Ω – 100 V / Not used – 70 V / 24 W
 2417 Ω – 100 V / 24 W – 70 V / 12 W
 3833 Ω – 100 V / 12 W – 70 V / 6 W
 41667 Ω – 100 V / 6 W – 70 V / 3 W
Product Features
Dimensions136 x 244 x 153 mm (W x H x D)
Weight2.050 kg
Operating temperature-20 °C ~ 60 °C
MountingClevermount™
AccessoriesIncludedAllen-key wrench
ConstructionABS
Front finishSteel grill
ColoursBlack (RAL9005) (ATEO4/B, ATEO4D/B)
 White (RAL9003) (ATEO4/W, ATEO4D/W)
Recommended applications

Bars & Restaurants

Corporate

Education

Hotels

Retail

Residential

Clubs

Additional information

Brand

Audac

Colour

Black, White
