Audac APM116 MK2

857.20

Call for availability

Audac professional Digital Paging Microphone – 16 Zones
The APM series are digital paging microphones fitted with a 32 cm gooseneck microphone containing a back electret condenser cell with cardioid pickup pattern. A built-in limiter constantly monitors the input level, guaranteeing a constantly maintained and clear output signal.

Call for availability

SEND EMAIL QUERY

Description

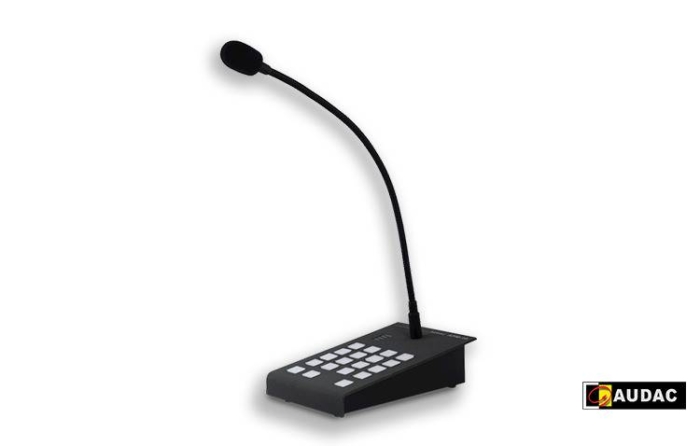

Audac APM116 MK2 Digital Paging Microphone - 16

The APM116 is a digital paging microphone for 16 zones, which is equipped with a condenser element with cardiologic characteristics, mounted on a 30 cm gooseneck. By means of a built-in compressor / limiter, the output level of the microphone signal is constantly maintained. The status of the reproduced signal is indicated on the front panel, to ensure the speaker that the message is clear and audible in all situations.

The console has 16 zone selection buttons, and three standard buttons with pre assigned functions: PTT (Push To Talk), Select all and Clear. The functions can be freely programmed by using the APM configuration software. In combination with the AUDAC ARU Relay Groups, the APM paging consoles can offer a wide range of possibilities.

Technical Specs

Polar PatternCardioid (unidirectional)
Sensitivity (1W/1m)-42 dB ± 3 dB / Pa
Buttons16 x programmable zone/function
 1 x PTT (push-to-talk)
 1 x select & clear all
Indicators3 Colours illuminated push button
 Level & status indication LED’s
Internal storage10 minutes audio or messages spread over max 30 files
ConnectorsRJ45 (data + Power)
Connection standardTIA/EIA T568B
MicrophoneTypeBack electret condenser
FrequencyResponse (± 3 dB)100 Hz – 20 kHz
PowerSupply24 V DC (min. 16V DC)
 Consumption4.8 W
MicrophoneGooseneck length350 mm
Max. cable lengthWith external PSU300 m
 Without external PSU133 m

Additional information

Brand

Audac

Microphone Type

Microphone Features

Paging Microphone, Wired
