Audac APM108 MK2

617.80

Call for availability

Audac professional Digital Paging Microphone – 8 Zones

Call for availability

Description

Audac APM108 MK2 Digital Paging Microphone – Doneo Malta

Overview

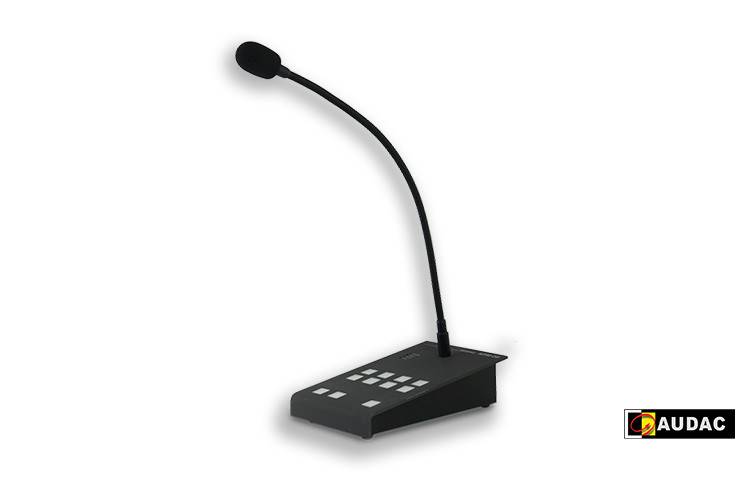

The APM108 is a digital paging microphone for 8 zones, which is equipped with a condenser element with cardiologic characteristics, mounted on a 30 cm gooseneck.

By means of a built-in compressor / limiter, the output level of the microphone signal is constantly maintained. The status of the reproduced signal is indicated on the front panel, to ensure the speaker that the message is clear and audible in all situations.

The console has 8 zone selection buttons, and three standard buttons with pre assigned functions: PTT (Push To Talk), Select all and Clear. The functions can be freely programmed by using the APM configuration software.

In combination with the AUDAC ARU Relay Groups, the APM paging consoles can offer a wide range of possibilities.

Polar Pattern Cardioid (unidirectional)
Sensitivity (1W/1m) -42 dB ± 3 dB / Pa
Buttons 8 x programmable zone/function
1 x PTT (push-to-talk)
1 x select & clear all
Indicators 3 Colours illuminated push button
Level & status indication LED’s
Internal storage 10 minutes audio or messages spread over max 30 files
Connectors RJ45 (data + Power)
Connection standard TIA/EIA T568B
Microphone Type Back electret condenser
Frequency Response (± 3 dB) 100 Hz – 20 kHz
Power Supply 24 V DC (min. 16V DC)
Consumption 4.8 W
Microphone Gooseneck length 350 mm
Max. cable length With external PSU 300 m
Without external PSU 133 m

Additional information

Brand

Audac

Microphone Type

Microphone Features

Paging Microphone, Wired
