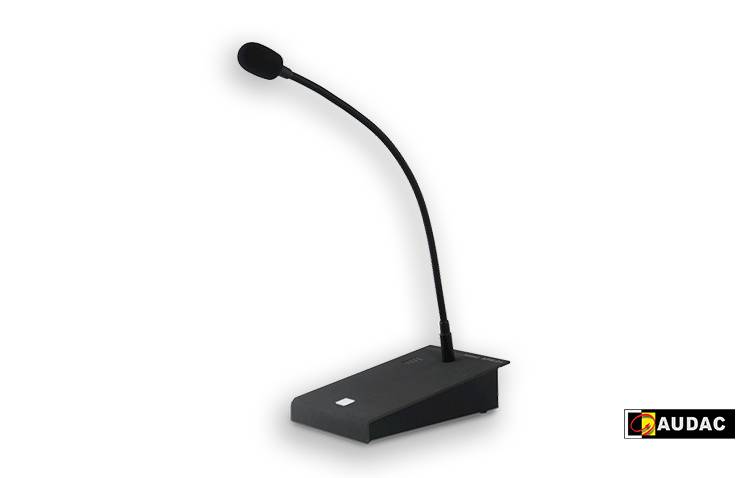

Audac APM101 MK2


Call for availability

Audac professional Digital Paging Microphone for 1 zone.

Call for availability

SKU: APM101MKII Categories: , Tag:


Audac APM101 MK2 Digital Paging Microphone – Doneo Malta

The APM101 is a digital paging microphone for 1 zone, which is equipped with a condenser element with cardiologic characteristics, mounted on a 30 cm gooseneck.

By means of a built-in compressor / limiter, the output level of the microphone signal is constantly maintained. The status of the reproduced signal is indicated on the front panel, to ensure the speaker that the message is clear and audible in all situations.

The console has a Push To Talk button.

Technical Drawing

Polar Pattern Cardioid (unidirectional)
Sensitivity (1W/1m) -42 dB
Buttons 1 x programmable PTT (push-to-talk)
Indicators 3 Colours illuminated push button
Level & status indication LED’s
Internal storage 10 minutes audio or messages spread over max 30 files
Connectors RJ45 (data + Power)
Connection standard TIA/EIA T568B
Microphone Type Back electret condenser
Gooseneck length 350 mm
Frequency Response (± 3 dB) 100 Hz – 20 kHz
Power Consumption 4.8 W (max.)
Supply 24 V DC (min. 16V DC)
Max. cable length Without external PSU 113 m
With external PSU 300 m

Additional information



Microphone Type

Microphone Features

Paging Microphone, Wired
