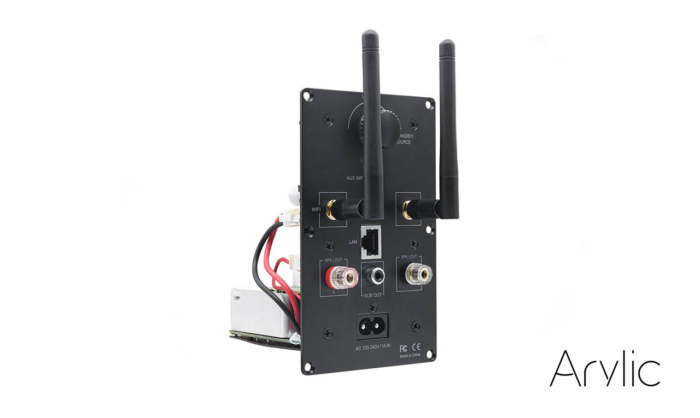

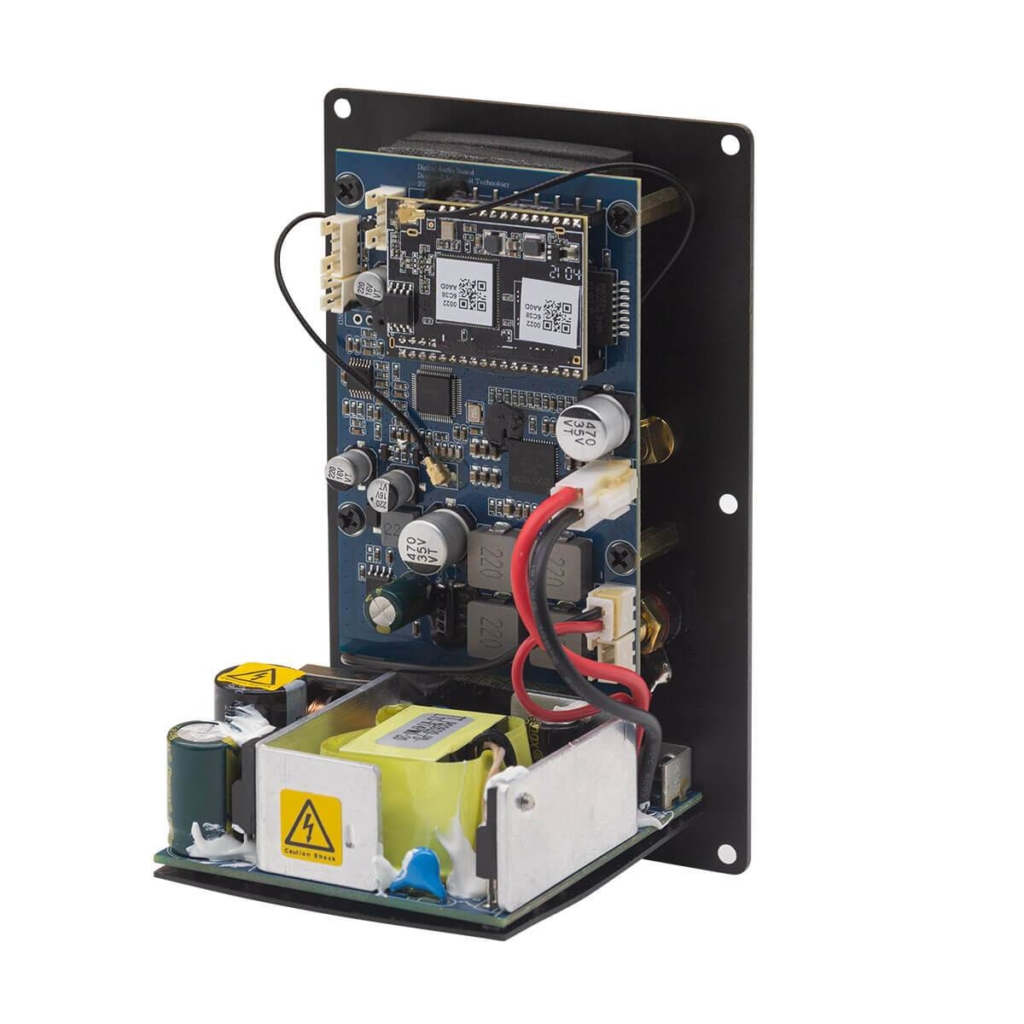

Wireless streaming Plate Amplifier – Arylic Up2stream

Original price was: €189.Current price is: €169.

In stock

2 x 40W streaming amplifier – Converts speakers into streaming active speakers. Stream and control audio remotely by Wifi, Bluetooth, Airplay and Spotify.

In stock

Description

DIY your Versatile Wireless Speaker

With Up2stream Plate Amp integrated into your speakers, you can stream and control audio remotely by Wifi, Bluetooth, Airplay 1 and Spotify connect.
Enjoy sound without distance limitation and the premium quality by wifi streaming.

Easy Installation

The compact and thoughtful design allows you easy to DIY without needing to analysis the ports dimensions and how to wire the speakers or how to use the pins. You can install to your designed speaker chassis directly.

Powerful Stereo

Up2stream Plate Amp is a 40W*2 amplifier board that could meet your plenty of use like bedroom, kitchen, workshop, or computer desk to stream powerful sounds wirelessly.

Personalize your Sounds.

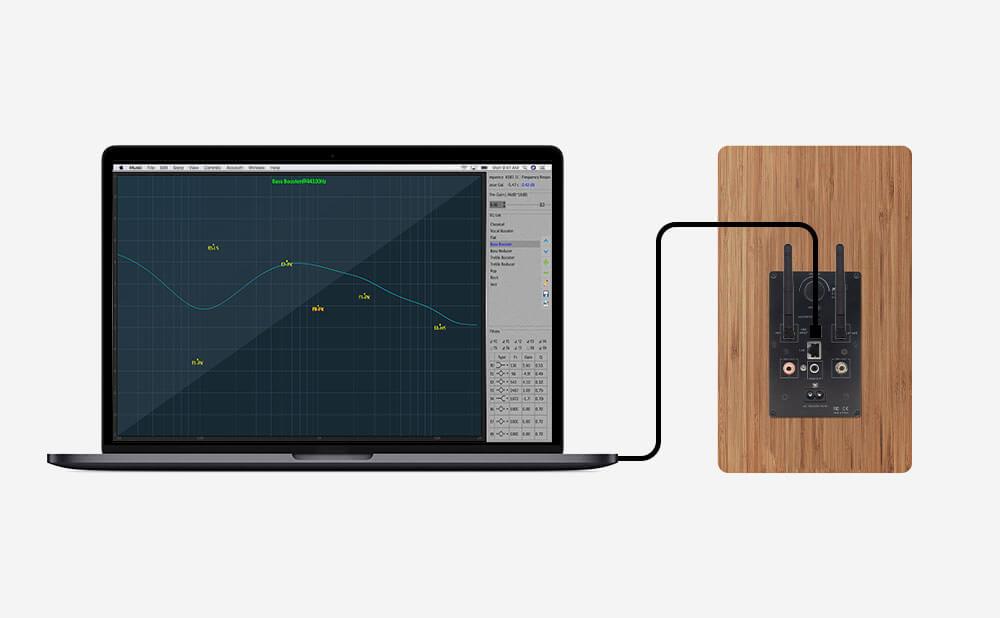

Up2stream Plate Amp supports streaming from PC directly and you can
customize the precise EQ settings with our ACPWorkbench tuning tool.

Control All Audio by One System

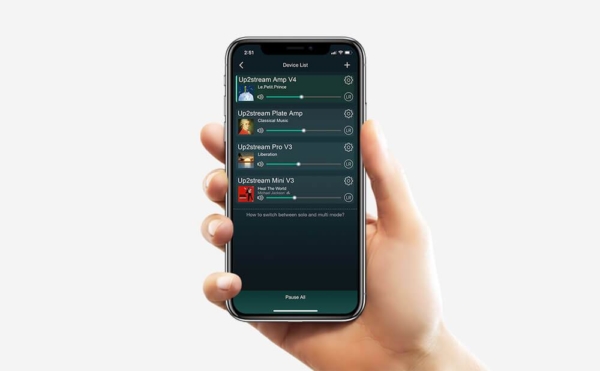

All Arylic products are compatible to group and stream audio to each other. So you can DIY your whole house audio for every room, play and sync sounds to each room with Arylic devices.

Premium Sound

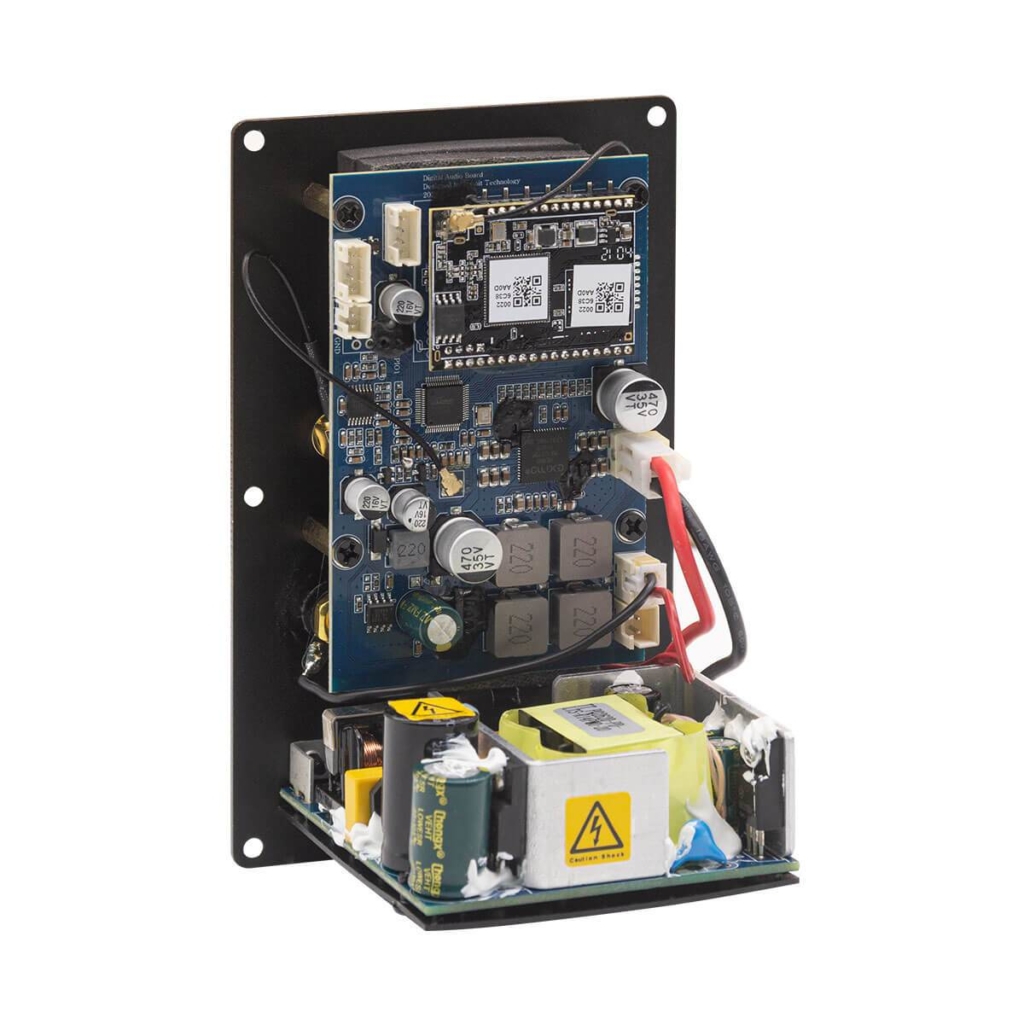

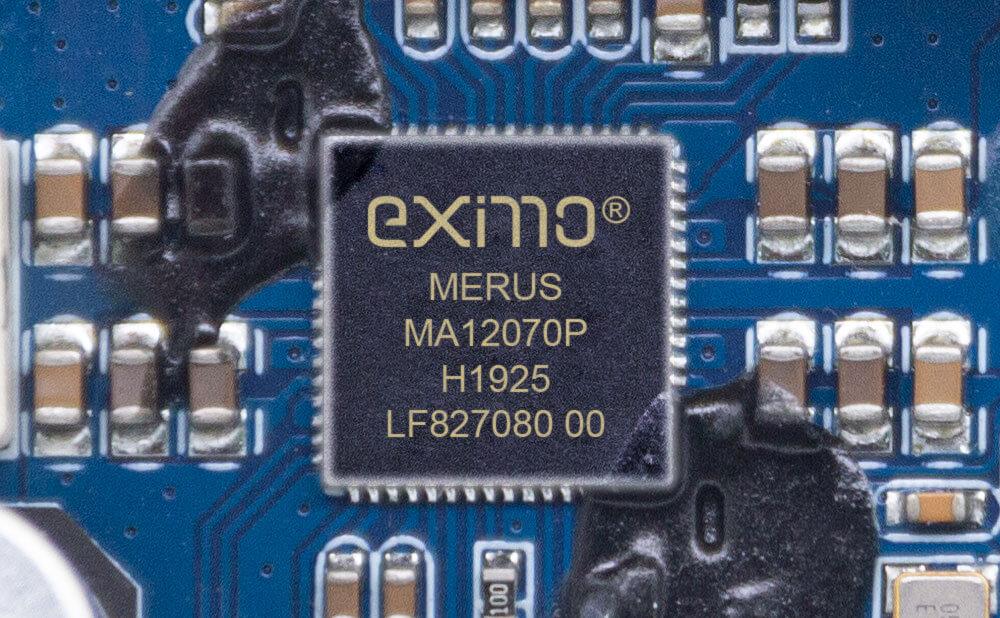

The amplifier chips on Up2stream Plate Amp is ma12070p that has premium sound performance and high efficiency with audio processing.

Stream All Music you Like

Stream your favorite online music such as Spotify, Amazon Music(US Only), Tidal, Deezer, Qobuz, Internet Radio, iheartRadio, Napster, etc. Any time anywhere in your house with our 4stream App.

What's More

Specifications

USER INTERFACE & CONTROLS

LED indicators
White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected
Blue-Bluetooth mode
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected
Green-Line in mode
Flashing slow- waiting for line in connection
Solid- Line in is connected
Yellow-connect to PC
Power Button
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)
Short press three times: Restore the factory settings

Device off:
Short press: Switch on
Volume Knob
Adjust volume
PC
iTunes/Musicbee/Foobar 2000
4stream App
Free iOS and Android App

GENERAL


Weight
0.3kg
Dimensions
135.3 x 85.3 x 77.3 mm
Working temperature
0~40℃
Screw Dimensions
KM 3.5mm*1.5mm
Package Included
Main board x1
Antenna x2
User’s manual x1
Power cord x1
USB Cablex1
EVA Sticker x4

AUDIO

Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Audio Decode
Up to 24bit/192kHz
Audio Output
44.1khz/16bits, CD quality
Frequency Response
20Hz-20kHz
THD+N
<0.9% @ 1KHz, 1W
Crosstalk
>55dB @1KHz
SNR
≥85dB @ max
Speaker Impedance
4-8Ω
Speaker Power
40W x2 @4Ω
20W x2 @8Ω
Online Music Service
Check here
Local Storage
Mobile device memory, NAS

CONNECTIVITY

Wifi
IEEE 802.11 b/g/n 2.4G
Bluetooth
5.0 SBC/AAC, 10M
Wired Connection
Ethernet RJ45
Streaming Protocols
AirPlay, DLNA, UPnP, Spotify connect, Qplay

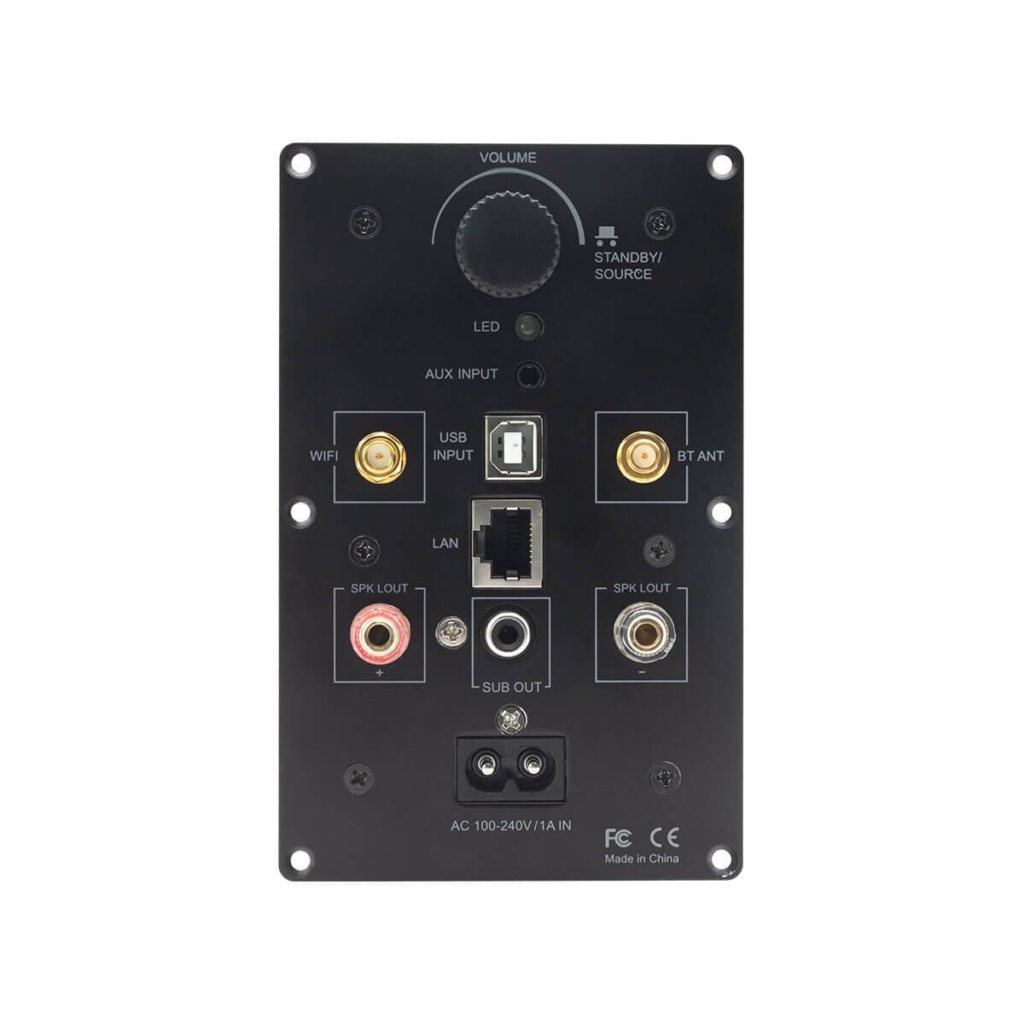

INTERFACES


Power input
AC100-240V 50/60Hz 1A
Audio input
3.5mm mini jack(1Vrms)
Spdif in(pin)
Type A USB Input x1 for PC streaming
Audio output
Subwoofer Output(20-300Hz Max 2V RMS)
Line out(Left channel speaker output)
Antennas
WiFi/Bluetooth Signal

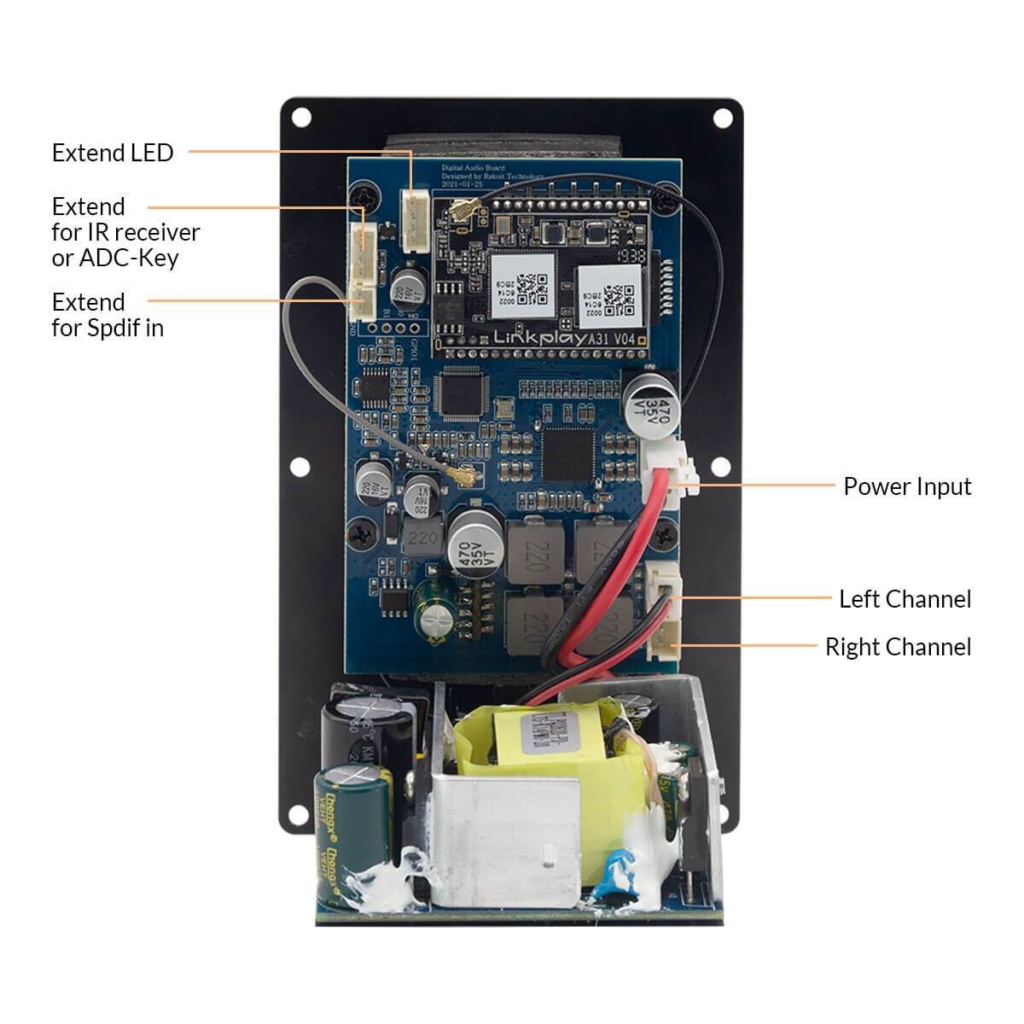

Compatible Expansion Board
(Need to wire to correspond port yourself)

ADC-KEY Board
SPDIF Input Board
SPDIF Output Board
IR Extension Board
(need to use with ADC-key board)

Additional information

Brand

Arylic

Product Type

Streaming

Amplifier Connectivity

Bluetooth, Multiroom, Wi-Fi
