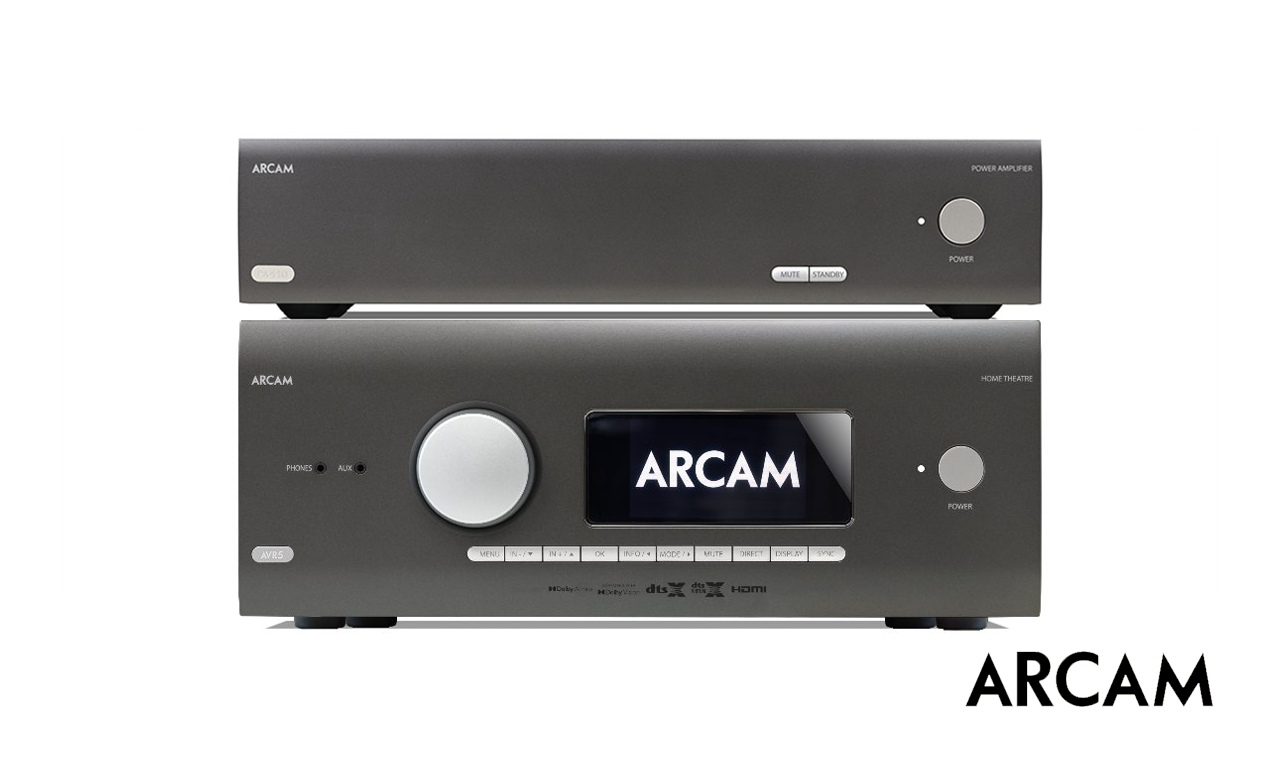

Arcam AVR5 + PA410

3,649

In stock

Arcam package giving 12 channels of processing combined with 11 channels of Class AB amplification for a stunning Arcam 7.1.4 atmos system.

In stock

Description

ARCAM AVR5

Rich Musicality + Immersive Sound = Stunning Realism

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.

The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.

ArcamAVR5_Back

PRODUCT DETAILS

  • Dolby Atmos & DTS:X 7.1.4 decoding
  • 4K (UHD) HDMI2.0b with HDCP2.2
  • 7 HDMI inputs, 2 HDMI outputs, eARC compatible
  • Ready for Dirac Live® room correction
  • ESS 9026PRO audiophile DACs
  • Class AB power amplification
  • Uses frame-type transformer
  • Wifi / Ethernet, RS232 and IR control
  • Apple Airplay2 and Google Cast for streaming audio
  • Bluetooth aptX®HD
  • Free MusicLife iOS and Android UPnP streaming app
  • Supports MQA
  • Roon Ready
Arcam-AVR20-back-connections

ARCAM PA410

Exceptional Power, Immersive Sound

The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Arcam-PA410

PRODUCT DETAILS

  • 4 Channel Power Amplifier
  • 4 x 50W Class AB amplification (8ohm, 20Hz-20kHz, 0.2% THD)
  • Toroidal transformer
  • RS232 control
Arcam-PA410 REAR CONNECTIONS

SPECIFICATIONS

ARCAM - AVR5

Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz – 20kHz, <0.02% THD 80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD 60W/85W
Residual noise & hum (A-wtd) <0.15mV

Stereo Line Inputs
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB

Headphone Output
Maximum output level into 32Ω 5Vrms
Output impedance <100Ω

General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 16.5kg
Weight (packed) 19.8kg
Supplied accessoriesMains lead
 Remote control with 2 x AAA batteries
 Manual
 DAB/FM aerial
 3 x WiFi/Bluetooth antennas
 Calibration microphone
 USB cable
EAN6925281947049



ARCAM - PA410

Continuous power output at 0.2% THD per channel

  • Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz – 70W / 50W
  • Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz – 90W / 60W
  • Harmonic distortion, 80% power, 8Ω at 1kHz – 0.003%



Inputs

  • Input sensitivity 50W / 8Ω – 600mV RMS
  • Signal/Noise ratio (A-wtd) 50W / 8Ω – 105dB
  • Input impedance – 10kΩ
  • Frequency response – 20 – 20kHz +/-0.05dB



General

  • Mains voltage – 110–120V or 220–240V, 50–60Hz
  • Power consumption (maximum) – 700W
  • Power consumption (idle, typical) – 90W (Thermal dissipation approx. 340 BTU/hour)
  • Power consumption (standby) – <0.5W
  • Dimensions W x H x D (including feet, control knob and speaker terminals) – 433x325x105mm
  • Weight (net) – 10kg
  • Weight (packed) – 11.5kg
  • EAN – 6925281969195

GET THE APP

Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.

Additional information

Brand

Arcam

Product Type

Multiroom Amplifier, Power Amplifier

Amplifier Connectivity

Bluetooth, Optical, HDMI, Aux-In, Sub Pre-Out, Multiroom, Network Port, Wi-Fi, Dolby Atmos, 12 Channel
